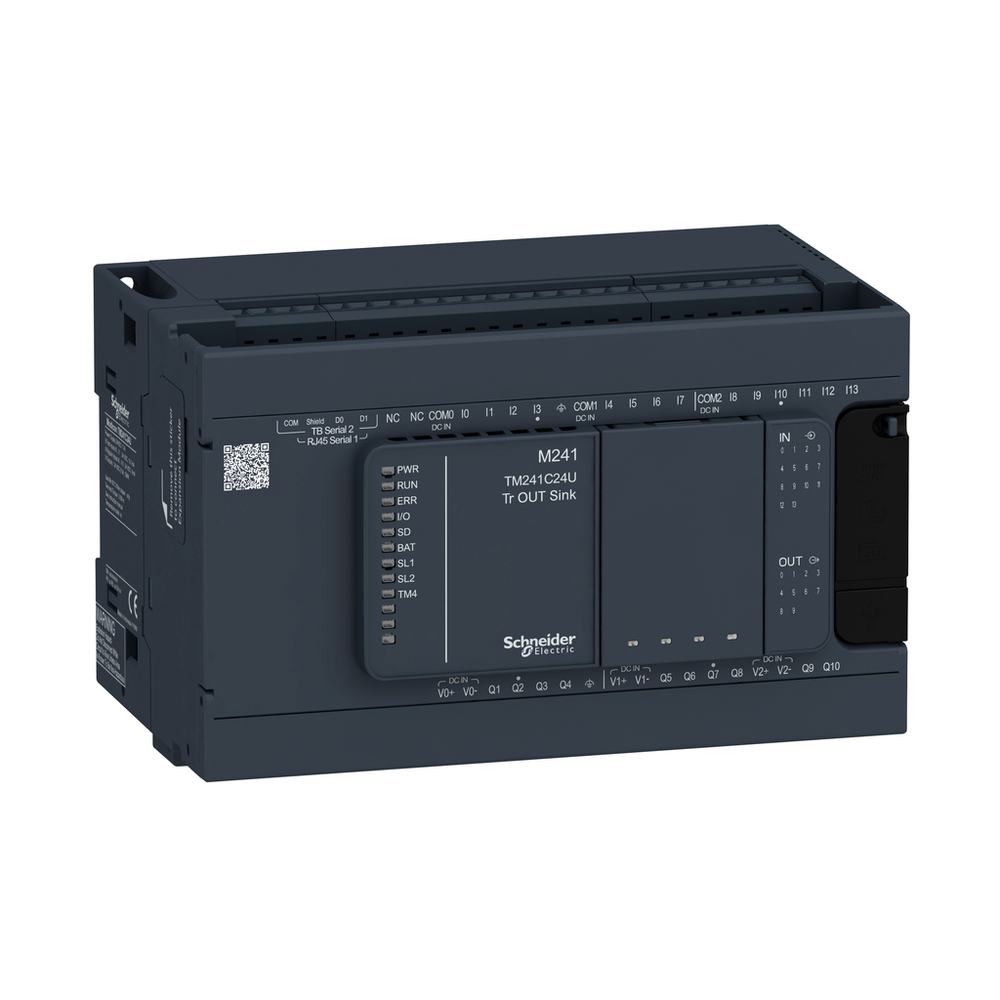

Schneider Electric TM241C24U

Complementary

• Accuracy
  • +/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
• Application Structure
  • 4 cyclic master tasks || 8 external event tasks || 8 event tasks || 3 cyclic master tasks + 1 freewheeling task
• Backup Time
  • 2 years 25 °C
• Battery Type
  • BR2032 lithium non-rechargeable 4 year(s)
• Clock Drift
  • <= 60 s/month 25-25 °C
• Communication Port Protocol
  • non isolated serial link Modbus master/slave
• Configurable Filtering Time
  • 1 µs fast input || 12 ms fast input || 0 ms input || 1 ms input || 4 ms input || 12 ms input
• Control Signal Type
  • A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)
• Counting Input Number
  • 4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz
• Data Backed Up
  • 128 MB built-in flash memory backup of user programs
• Data Storage Equipment
  • <= 16 GB SD card optional)
• Depth
  • 95 mm
• Discrete Input Current
  • 5 mA input || 10.7 mA fast input
• Discrete Input Logic
  • sink or source
• Discrete Input Voltage
  • 24 V
• Discrete Input Voltage Type
  • DC
• Discrete I/O Number
  • 24
• Discrete Output Logic
  • negative logic (sink)
• Electrical Connection
  • removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
• Execution Time For 1 Kinstruction
  • 0.3 ms event and periodic task || 0.7 ms other instruction
• Height
  • 90 mm
• Input Impedance
  • 4.7 kOhm input || 2.81 kOhm fast input
• Inrush Current
  • 50 A
• Insulation
  • between supply and internal logic 500 V AC || non-insulated between supply and ground || between input and internal logic 500 V AC || non-insulated between inputs || between fast input and internal logic 500 V AC || between output and internal logic 500 V AC || non-insulated between outputs || between fast output and internal logic 500 V AC
• Integrated Connection Type
  • non isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0
• Local Signalling
  • for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for bus fault on TM4 (TM4) 1 LED (red) || for I/O state 1 LED per channel (green)
• Marking
  • CE
• Maximum Cable Distance Between Devices
  • unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output
• Maximum Current Per Output Common
  • 2 A Q0...Q3 fast output || 2 A Q4...Q7 output || 1 A Q8...Q9 output
• Maximum Leakage Current
  • 5 µA output
• Maximum Number Of I/O Expansion Module
  • 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
• Maximum Output Frequency
  • 20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode) || 1 kHz output
• Maximum Tungsten Load
  • <2.4 W
• Maximum Voltage Drop
  • <1 V
• Memory Capacity
  • 64 MB system memory RAM
• Mounting Support
  • top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Net Weight
  • 0.53 kg
• Output Voltage Limits
  • 30 V DC
• Positioning Functions
  • PTO 4 100 kHz) || PTO 4 transistor output 1 kHz)
• Power Consumption In W
  • 32.6-40.4 W with max number of I/O expansion module)
• Protection Type
  • short-circuit protection || short-circuit and overload protection with automatic reset || reverse polarity protection fast output
• Realtime Clock
  • with
• Reset Time
  • 10 ms automatic reset output || 12 s automatic reset fast output
• Response Time
  • 50 µs turn-on, I0...I13 input || 50 µs turn-off, I0...I13 input || <= 2 µs turn-on, I0...I7 fast input || <= 2 µs turn-off, I0...I7 fast input || <= 34 µs turn-on, Q0...Q9 output || <= 250 µs turn-off, Q0...Q9 output || <= 2 µs turn-on, Q0...Q3 fast output || <= 2 µs turn-off, Q0...Q3 fast output
• Supply
  • serial 1)serial link supply 5 V, <200 mA
• Supply Voltage Limits
  • 20.4-28.8 V
• Surge Withstand
  • 1 kV power lines (DC) common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5 || 1 kV transistor output common mode EN/IEC 61000-4-5
• Transmission Rate
  • 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB
• Voltage State 0 Guaranteed
  • <= 5 V input
• Voltage State 1 Guaranteed
  • >= 15 V input
• Width
  • 150 mm

Environment

• Ambient Air Temperature For Operation
  • -10-50 °C vertical installation) || -10-55 °C horizontal installation)
• Ambient Air Temperature For Storage
  • -25-70 °C
• Electromagnetic Emission
  • conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz EN/IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A230-1000 MHz EN/IEC 55011
• Immunity To Microbreaks
  • 10 ms
• Ip Degree Of Protection
  • IP20 with protective cover in place
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Pollution Degree
  • 2
• Product Certifications
  • RCM || cULus || CE || UKCA || DNV-GL || ABS || LR
• Relative Humidity
  • 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
• Resistance To Electrostatic Discharge
  • 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
• Resistance To Fast Transients
  • 2 kV EN/IEC 61000-4-4 power lines) || 1 kV EN/IEC 61000-4-4 serial link) || 1 kV EN/IEC 61000-4-4 input) || 1 kV EN/IEC 61000-4-4 transistor output)
• Shock Resistance
  • 15 gn 11 ms
• Standards
  • ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || EN/IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508
• Storage Altitude
  • 0-3000 m
• Vibration Resistance
  • 3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1307080EN
• Environmental Disclosure
  • ENVPEP1307080EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Discrete Input Number
  • 14 , discrete input 8 fast input IEC 61131-2 Type 1
• Discrete Output Current
  • 0.5 A transistor output Q0...Q9) || 0.1 A fast output (PTO mode) Q0...Q3)
• Discrete Output Number
  • 10 transistor 4 fast output
• Discrete Output Type
  • transistor
• Discrete Output Voltage
  • 24 V DC transistor output
• Product Or Component Type
  • logic controller
• Range Of Product
  • Modicon M241
• [Us] Rated Supply Voltage
  • 24 V DC
