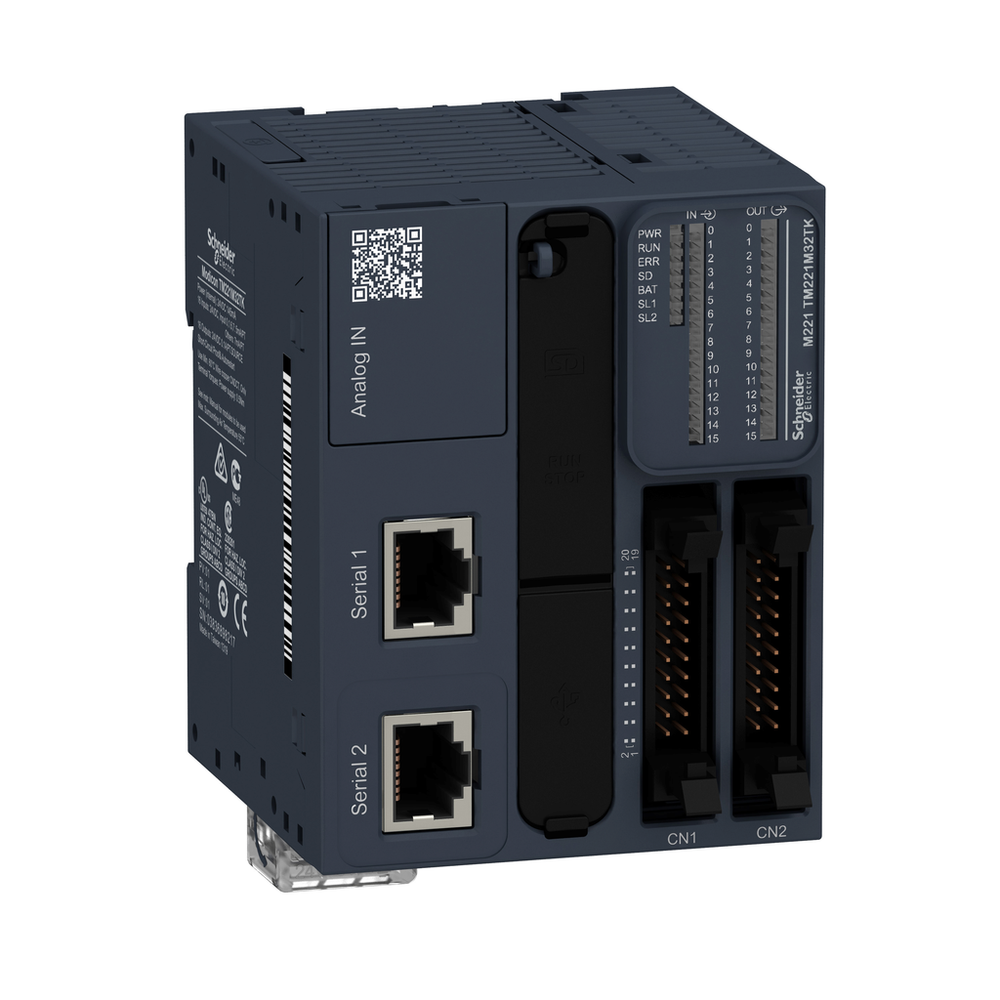

Schneider Electric TM221M32TK

Complementary

• Absolute Accuracy Error
  • +/- 1 % of full scale analog input
• Analogue Input Resolution
  • 10 bits
• Application Structure
  • 1 configurable freewheeling/cyclic master task || 1 cyclic auxiliary task || 8 interrupt tasks
• Backup Time
  • 1 year 25 °C by interruption of power supply)
• Battery Type
  • BR2032 or CR2032X lithium non-rechargeable
• Clock Drift
  • <= 30 s/month 25-25 °C
• Communication Port Protocol
  • USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
• Communication Service
  • Modbus master || Modbus slave
• Configurable Filtering Time
  • 0 ms input || 3 ms input || 12 ms input
• Control Signal Type
  • single phase || A/B || pulse/direction
• Conversion Time
  • 1 ms per channel + 1 controller cycle time analog input
• Counting Input Number
  • 4 fast input (HSC mode) 100 kHz 32 bits
• Data Backed Up
  • 256 kB built-in flash memory backup of application and data
• Data Storage Equipment
  • 2 GB SD card optional)
• Depth
  • 70 mm
• Discrete Input Current
  • 7 mA discrete input || 5 mA fast input
• Discrete Input Logic
  • sink or source (positive/negative)
• Discrete Input Voltage
  • 24 V
• Discrete Input Voltage Type
  • DC
• Discrete I/O Number
  • 32
• Discrete Output Logic
  • positive logic (source)
• Electrical Connection
  • terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || HE-10 connector, 20 for inputs || HE-10 connector, 20 for outputs
• Exct Time For Event Task
  • 60 µs response time
• Execution Time For 1 Kinstruction
  • 0.3 ms event and periodic task || 0.7 ms other instruction
• Execution Time Per Instruction
  • 0.2 µs Boolean
• Function Available
  • PLS || PWM || frequency generator
• Height
  • 90 mm
• Input Impedance
  • 3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input
• Inrush Current
  • 35 A
• Insulation
  • between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs
• Integrated Connection Type
  • USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485
• Local Signalling
  • for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)
• Lsb Value
  • 10 mV
• Marking
  • CE
• Maximum Cable Distance Between Devices
  • shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output
• Maximum Current Per Output Common
  • 1.6 A
• Maximum Leakage Current
  • 0.1 mA transistor output
• Maximum Number Of I/O Expansion Module
  • 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
• Maximum Power Consumption In W
  • 22.3 W 24 V with max number of I/O expansion module) || 3.5 W 24 V without I/O expansion module)
• Maximum Size Of Object Areas
  • 8000 %MW memory words || 255 %TM timers || 512 %KW constant words || 512 %M memory bits || 255 %C counters
• Maximum Tungsten Load
  • <2.4 W output and fast output
• Maximum Voltage Drop
  • <1 V
• Mechanical Durability
  • 20000000 cycles transistor output
• Memory Capacity
  • 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
• Mounting Support
  • top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Net Weight
  • 0.27 kg
• Output Frequency
  • 100 kHz fast output (PWM/PLS mode) Q0...Q1 || 5 kHz output Q2...Q3 || 0.1 kHz output Q4...Q15
• Permitted Overload On Inputs
  • +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
• Positioning Functions
  • PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)
• Power Supply Output Current
  • 0.52-0.52 A 5 V expansion bus || 0.48-0.48 A 24 V expansion bus
• Protection Type
  • short-circuit and overload protection with automatic reset || short-circuit protection on output || overload and short-circuit protection 0.2 A
• Realtime Clock
  • with
• Regulation Loop
  • adjustable PID regulator up to 14 simultaneous loops
• Reset Time
  • 1 s automatic reset
• Response Time
  • 35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output || 50 µs turn-on, turn-off, Q2...Q3 output || 300 µs turn-on, turn-off, other terminals output
• Supply
  • serial 1)serial link supply 5 V, <200 mA
• Supply Voltage Limits
  • 20.4-28.8 V
• Transmission Rate
  • 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
• Voltage State 0 Guaranteed
  • <= 5 V input
• Voltage State 1 Guaranteed
  • >= 15 V input
• Width
  • 70 mm

Environment

• Ambient Air Temperature For Operation
  • -10-55 °C horizontal installation) || -10-35 °C vertical installation)
• Ambient Air Temperature For Storage
  • -25-70 °C
• Electromagnetic Emission
  • conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz EN/IEC 55011
• Environmental Characteristic
  • ordinary and hazardous location
• Immunity To Microbreaks
  • 10 ms
• Ip Degree Of Protection
  • IP20 with protective cover in place
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Pollution Degree
  • <= 2
• Product Certifications
  • cULus || LR || RCM || DNV-GL || EAC || ABS || CE || UKCA || cULus HazLoc
• Relative Humidity
  • 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
• Resistance To Electrostatic Discharge
  • 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
• Resistance To Fast Transients
  • 2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)
• Resistance To Magnetic Fields
  • 30 A/m 50/60 Hz EN/IEC 61000-4-8
• Shock Resistance
  • 147 m/s² 11 ms
• Standards
  • EN/IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
• Storage Altitude
  • 0-3000 m
• Surge Withstand
  • 2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5
• Vibration Resistance
  • 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1403012EN
• Environmental Disclosure
  • ENVPEP1403012EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Analogue Input Number
  • 2 0...10 V
• Discrete Input Number
  • 16 , discrete input 4 fast input IEC 61131-2 Type 1
• Discrete Output Current
  • 0.1 A
• Discrete Output Number
  • 16 transistor 2 fast output
• Discrete Output Type
  • transistor
• Discrete Output Voltage
  • 24 V DC
• Product Or Component Type
  • logic controller
• Range Of Product
  • Modicon M221
• [Us] Rated Supply Voltage
  • 24 V DC
