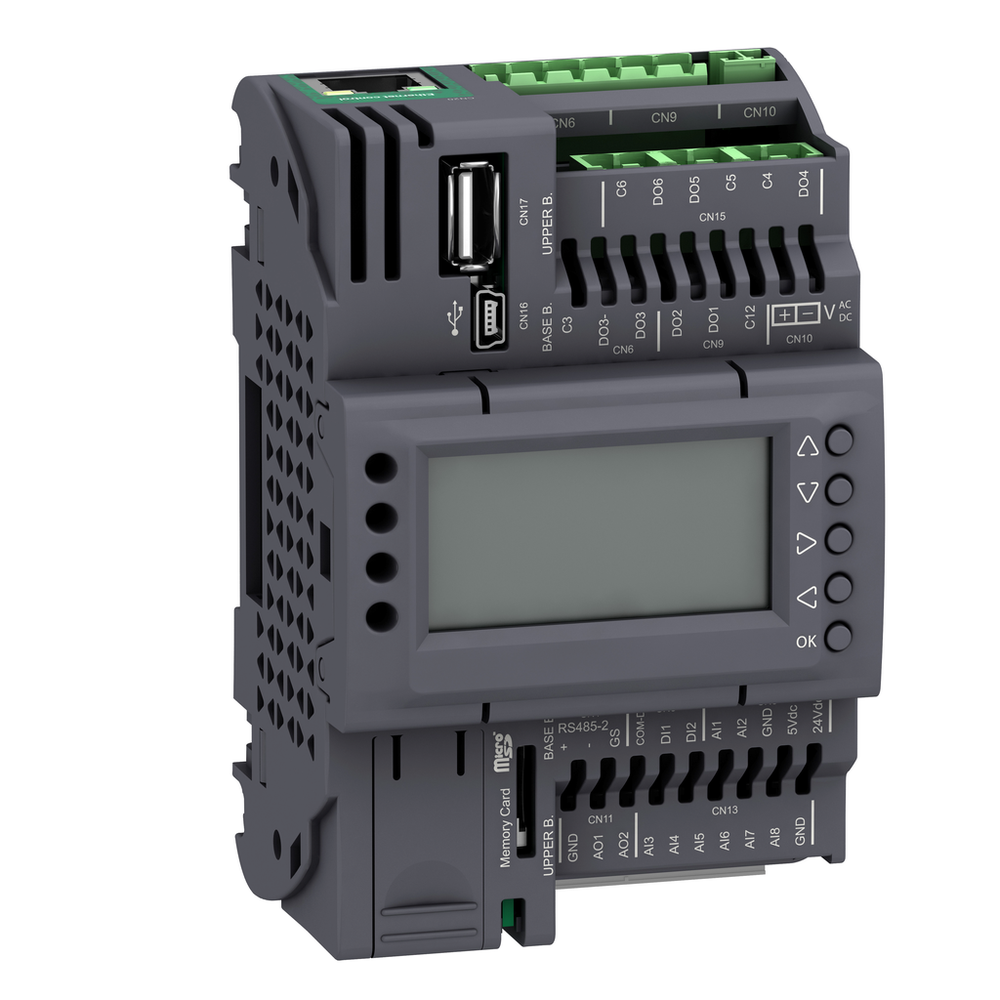

Schneider Electric TM172PDG18S

Complementary

• Analogue Input Type
  • NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C) || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C) || voltage 0...10 V 1 digit > 10 kOhm || voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric) || impedance 0...1500 hOhm 1 hOhm 10 kOhm || impedance 0...300 daOhm 1 daOhm 1500 Ohm || PTC temperature probe - 55...150 °C 0.1 °C 1500 Ohm || Pt 1000 temperature probe - 200...850 °C 0.1 °C 1500 Ohm || current 0...20 mA/4...20 mA 1 digit < 150 Ohm || direct input 10 kOhm Dry contact)
• Depth
  • 60.5 mm
• Discrete Input Current
  • 5 mA AC/DC
• Discrete Input Logic
  • sink or source (positive/negative) up to 2 kHz
• Discrete Input Voltage
  • 24 V AC/DC
• Display Type
  • Backlit LCD - 128 x 64 pixels
• Height
  • 110 mm
• Input Impedance
  • 20 kOhm
• Input/Output Number
  • 2 analog output || 6 digital output || 8 analog input || 2 digital input
• Local Signalling
  • for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green) || for power 1 LED (green)
• Measurement Accuracy
  • 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit || 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit || 4...20 mA +/- 1 % of full scale +/- 1 digit || 0...10 V +/- 1 % of full scale +/- 1 digit || 0...5 V +/- 1 % of full scale +/- 1 digit || daOhm 0...300 daOhm +/- 2.5 daOhm || NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C || NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C || NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C || PTC - 55...155 °C +/- 1.1 °C || Pt 1000 - 200...-100 °C +/- 10 °C || Pt 1000 - 100...-50 °C +/- 2.5 °C || Pt 1000 - 50...100 °C +/- 1.5 °C || Pt 1000 100…400 °C +/- 2.4 °C || Pt 1000 400...850 °C +/- 10 °C || hOhm 0...750 hOhm +/- 8.5 hOhm || hOhm 750 hOhm...1500 hOhm +/- 24 hOhm
• Mounting Support
  • panel mounting with accessory || DIN rail
• Net Weight
  • 0.225 kg
• Number Of Port
  • 1 CAN port - screw terminal block || 1 USB type A - USB type A female || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
• Overvoltage Category
  • II
• Power Consumption In W
  • 11 W 24 V AC/DC
• Realtime Clock
  • built-in <= 30 s/month -20-60 °C
• Sensor Power Supply
  • 5-5 V DC 40 mA supplied by the controller || 24-24 V DC 100 mA supplied by the controller
• [Us] Rated Supply Voltage
  • 24 V +/- 10 % AC || 20...38 V DC
• Width
  • 72 mm

Environment

• Ambient Air Temperature For Operation
  • -20-60 °C
• Ambient Air Temperature For Storage
  • -30-70 °C
• Directives
  • 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Ip Degree Of Protection
  • IP20
• Operating Altitude
  • 0...6561.68 ft (0...2000 m)
• Pollution Degree
  • 2
• Product Certifications
  • RCM || CSA || cURus || EAC || CE
• Relative Humidity
  • 5-95 % non-condensing
• Standards
  • EN 60730-2-9 || EN 60068-2-27 || IEC 61000-4-3 || UL 60730-1 || IEC 61000-4-2 || CAN/CSA-E60730-1 || EN 60068-2-6 Fc || IEC 61000-4-11 || IEC 61000-4-5 || IEC 61000-4-6 || CSA E60730-2-9 || UL 60730-2-9 || EN 60730-1 || IEC 61000-4-4 || UL94 (material V0)

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1803011EN
• Environmental Disclosure
  • ENVPEP1803011EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Upgradeability
  • Upgradeable through digital modules and upgraded components
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Analogue Input Number
  • 8 configurable by pair
• Analogue Output Number
  • 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
• Discrete Input Number
  • 2
• Discrete Output Current
  • 3 A relay SPST || 3 A relay SPDT || 0.2 A solid state, isolated
• Discrete Output Number
  • 1 relay outputs SPDT with independent common || 2 relay outputs SPST with same common || 2 solid state, isolated SSR with independent common || 1 relay outputs SPST with independent common
• Number Of Inputs/Outputs
  • 18
• Product Or Component Type
  • programmable controllers
• Product Specific Application
  • HVAC
• Range Of Product
  • Modicon M171/M172
• Variant
  • programmable
