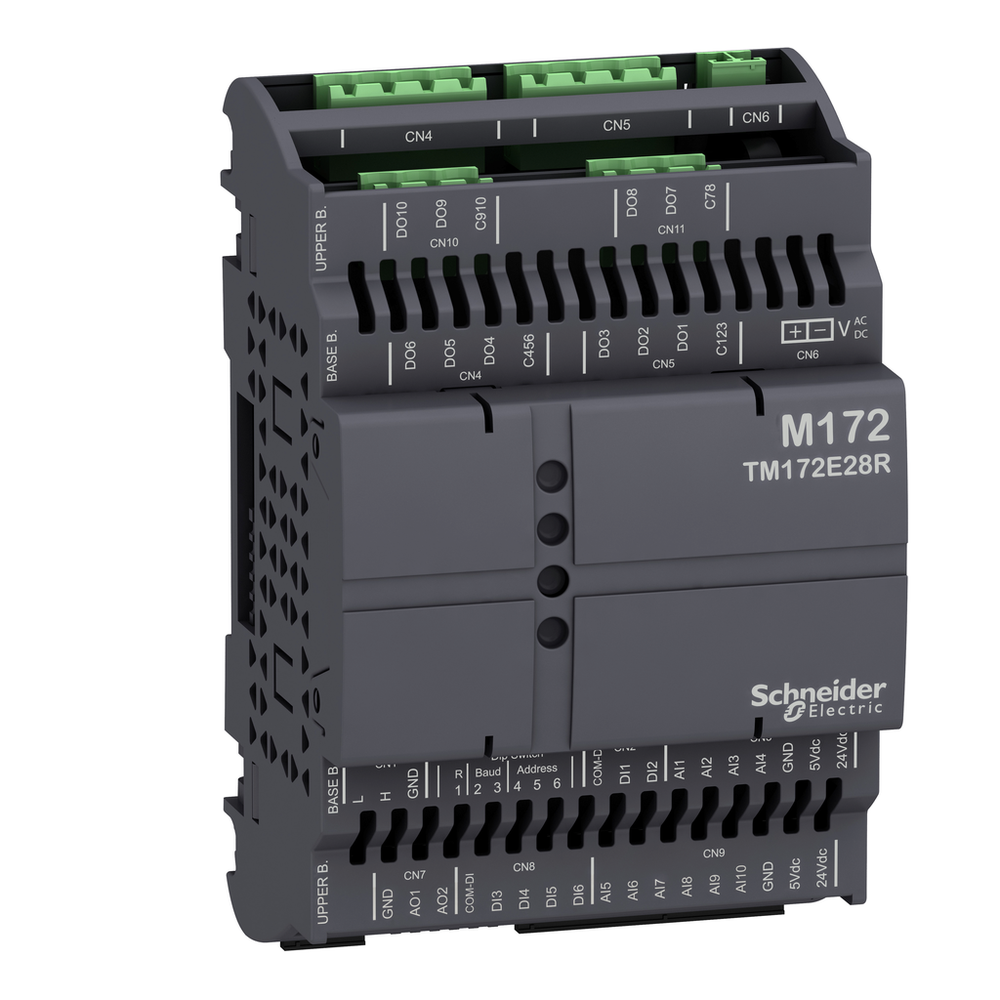

Schneider Electric TM172E28R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 6 discrete inputs with 2 display positive logic (sink) up to 2kHz and 4 display positive logic (sink). It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 10 configurable by pair analogue input with 2 programmable analogue outputs. It is an IP20 rated product. Its dimensions are 72mm (width) x 59mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.expansion module, Modicon M172, optimized and performance, 28 IO
Schneider Electric TM172E28R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C) || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C) || current 0...20 mA 1 digit < 150 Ohm || current 4...20 mA 1 digit < 150 Ohm || voltage 0...10 V 1 digit > 10 kOhm || voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric) || impedance 0...1500 hOhm 1 hOhm 10 kOhm || impedance 0...300 daOhm 1 daOhm 2 kOhm || direct input 1 digit Dry contact) || PTC - 55...150 °C 0.1 °C 2 kOhm || Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm
- Depth
- 59 mm
- Discrete Input Current
- 2.5 mA AC/DC
- Discrete Input Logic
- 2 positive logic (sink) up to 2 kHz || 4 positive logic (sink)
- Discrete Input Voltage
- 24 V AC/DC
- Display Type
- Without Display
- Height
- 110 mm
- Input Impedance
- 20 kOhm
- Input/Output Number
- 2 analog output || 6 digital input || 10 analog input || 10 digital output
- Measurement Accuracy
- NTC NK103 - 40...+110 °C +/- 1 °C || NTC NK103 110...137 °C +/- 1.9 °C || NTC 103AT-2 - 50…110 °C +/- 1 °C || PTC - 55...+135 °C +/- 1.1 °C || PTC - 150…135 °C +/- 3.1 °C || Pt 1000 - 200...-100 °C +/- 5 °C || Pt 1000 - 100...-50 °C +/- 3 °C || Pt 1000 - 50...+200 °C +/- 1.5 °C || Pt 1000 200...600 °C +/- 15 °C || Pt 1000 600...850 °C +/- 30 °C || 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit || 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit || 4...20 mA +/- 1 % of full scale +/- 1 digit || 0...10 V +/- 1 % of full scale +/- 1 digit || 0...5 V +/- 1 % of full scale +/- 1 digit || hOhm 0...700 hOhm +/- 10 hOhm || hOhm 700 hOhm...1200 hOhm +/- 25 hOhm || hOhm 1200 hOhm...1500 hOhm +/- 60 hOhm || daOhm 0...300 daOhm +/- 2.5 daOhm
- Mounting Support
- DIN rail || panel mounting with accessory
- Net Weight
- 0.19 kg
- Number Of Port
- 1 CAN port - screw terminal block
- Overvoltage Category
- II
- Power Consumption In W
- 24 VA 24 V AC || 15 W 24 V DC
- Realtime Clock
- without
- Sensor Power Supply
- 5-5 V DC 50 mA || 24-24 V DC 125 mA
- [Us] Rated Supply Voltage
- 24 V +/- 10 % AC || 20...38 V DC
- Width
- 72 mm
Environment
- Ambient Air Temperature For Operation
- -20-65 °C UL 60730-1
- Ambient Air Temperature For Storage
- -30-70 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Pollution Degree
- 2
- Product Certifications
- cURus || EAC || CE || RCM || CSA
- Relative Humidity
- 5-95 % non-condensing
- Standards
- IEC 61000-4-4 || EN 60068-2-27 || CSA E60730-2-9 || IEC 61000-4-11 || CAN/CSA-E60730-1 || UL 60730-2-9 || EN 60730-2-9 || EN 60730-1 || IEC 61000-4-5 || IEC 61000-4-3 || EN 60068-2-6 Fc || IEC 61000-4-2 || UL94 (material V0)
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1709014EN
- Environmental Disclosure
- ENVPEP1709014EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Upgradeability
- Upgradeable through digital modules and upgraded components
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 10 configurable by pair
- Analogue Output Number
- 2 programmable
- Discrete Input Number
- 2 || 4
- Discrete Output Current
- 3 A relay SPST
- Discrete Output Number
- 3 relay outputs SPST with same common || 2 relay outputs SPST with same common
- Number Of Inputs/Outputs
- 28
- Product Or Component Type
- additional I/O module
- Product Specific Application
- HVAC control
- Range Of Product
- Modicon M171/M172
