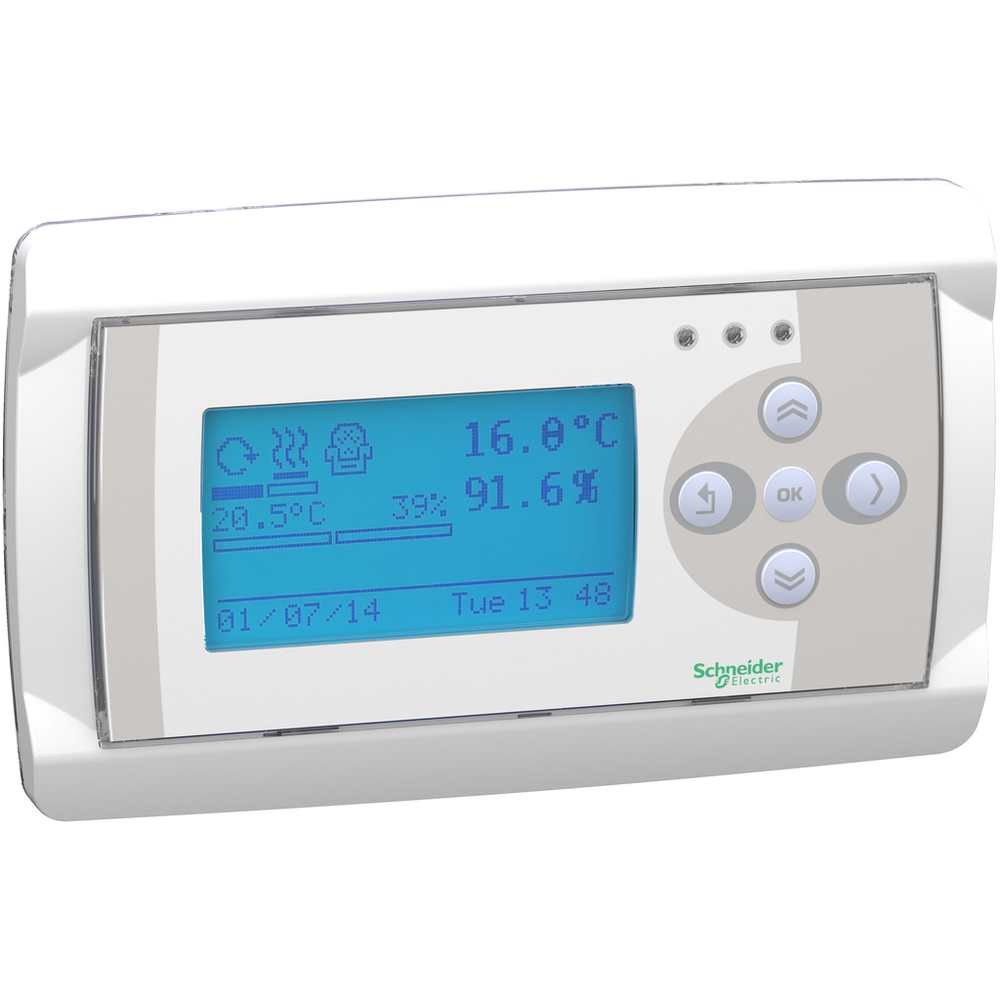

Schneider Electric TM171PFE03
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Modicon M171 Performance Flush 3 I/Os, Modbus SL/TCP & BACnet MSTP and IP
Schneider Electric TM171PFE03 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- voltage 0...5 V ratiometric) || current 4...20 mA || NTC temperature probe - 50...110 °C 0.1 °C extended) || voltage 0...10 V || NTC temperature probe - 40...150 °C 0.1 °C
- Depth
- 60.5 mm
- Display Type
- Without Display
- Height
- 110 mm
- Input/Output Number
- 3 analog input
- Local Signalling
- without
- Mounting Support
- DIN rail || panel mounting with accessory
- Net Weight
- 0.19 kg
- Number Of Port
- 1 CAN port - screw terminal block || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver) || 1 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1
- Overvoltage Category
- II
- Power Consumption In W
- 24 VA 24 V AC || 15 W 20...38 V DC
- Realtime Clock
- without -20-65 °C
- [Us] Rated Supply Voltage
- 24 V ±10% AC || 48 V DC
- Width
- 72 mm
Environment
- Ambient Air Temperature For Operation
- -20-65 °C UL 60730-1
- Ambient Air Temperature For Storage
- -20-85 °C
- Ip Degree Of Protection
- IP20
- Pollution Degree
- 2
- Product Certifications
- CSA || RCM || cURus || CE || EAC
- Relative Humidity
- 10-90 % non-condensing
- Standards
- EN/IEC 60730
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Upgradeability
- Upgradeable through digital modules and upgraded components
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 1 analog input NTC board) || 1 analog input NTC
- Number Of Inputs/Outputs
- 3
- Product Or Component Type
- programmable controllers
- Product Specific Application
- HVAC and pumping solution
- Range Of Product
- Modicon M171/M172
- Variant
- programmable
