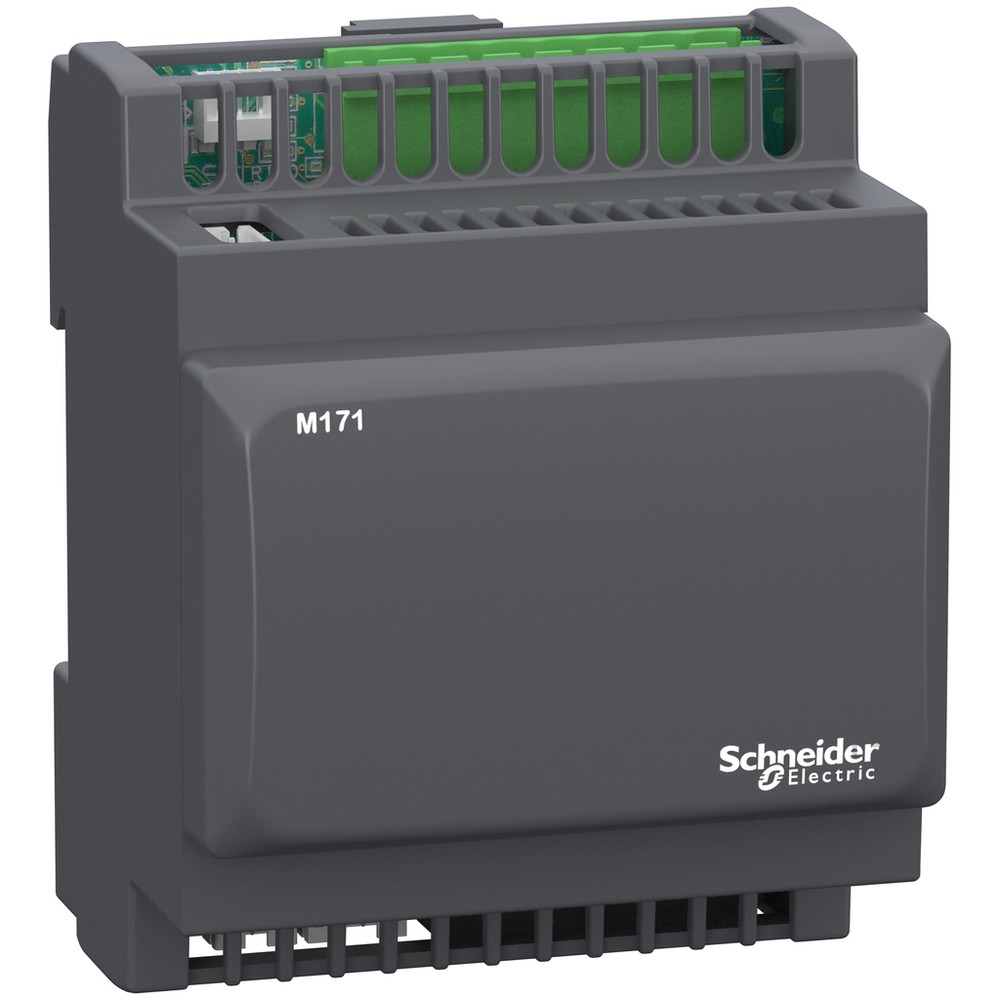

Schneider Electric TM171OBM22R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 6 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 12V to 24V, ±10% AC. It is an IP20 rated product. Its dimensions are 70.2mm (width) x 61.6mm (depth) x 87mm (height). It weighs 0.19kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for flush mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.Modicon M171 Optimized Blind 22 I/Os, Modbus
Schneider Electric TM171OBM22R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- voltage 0...5 V ratiometric) || voltage 0...10 V || current 0...20 mA/4...20 mA || voltage 0...1 V || temperature probe - 50...100 °C 0.1 °C
- Contacts Usage
- volt-free contacts
- Depth
- 61.6 mm
- Discrete Input Logic
- sink or source (positive/negative)
- Display Type
- four 7-segment display units
- Height
- 87 mm
- Input/Output Number
- 5 analog output || 6 digital input || 5 analog input || 6 digital output
- Local Signalling
- 6 LEDs (red) || 5 LEDs (green) || for programmable 7 LEDs (amber)
- Mounting Support
- DIN rail
- Net Weight
- 0.19 kg
- Number Of Port
- 1 LAN expansion bus || 1 RS485 - screw terminal block Modbus serial link)
- Overvoltage Category
- II
- Realtime Clock
- built-in -20-55 °C
- Sensor Power Supply
- 12-12 V DC 85 mA || 5-5 V DC 20 mA
- [Us] Rated Supply Voltage
- 24 V || 12...24 V AC
- Width
- 70.2 mm
Environment
- Ambient Air Temperature For Operation
- -20-55 °C UL 60730-1
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2006/95/EC - low voltage directive || 86/188/EEC - physical agents (noise) directive
- Ip Degree Of Protection
- IP20
- Pollution Degree
- 2
- Product Certifications
- EAC || CSA || CE || cURus
- Relative Humidity
- 10-90 % non-condensing
- Standards
- EN/IEC 60730
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710004EN
- Environmental Disclosure
- ENVPEP1710004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Upgradeability
- Upgradeable through digital modules and upgraded components
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 2 configurable || 3 analog input NTC
- Analogue Output Number
- 3 voltage 0...10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA
- Discrete Input Number
- 6
- Discrete Output Current
- 2 A relay
- Discrete Output Number
- 1 open collector || 3 relay outputs SPST with same common || 2 relay outputs SPST with independent common
- Number Of Inputs/Outputs
- 22
- Product Or Component Type
- controller
- Product Specific Application
- HVAC and pumping solution
- Range Of Product
- Modicon M171/M172
- Variant
- programmable
