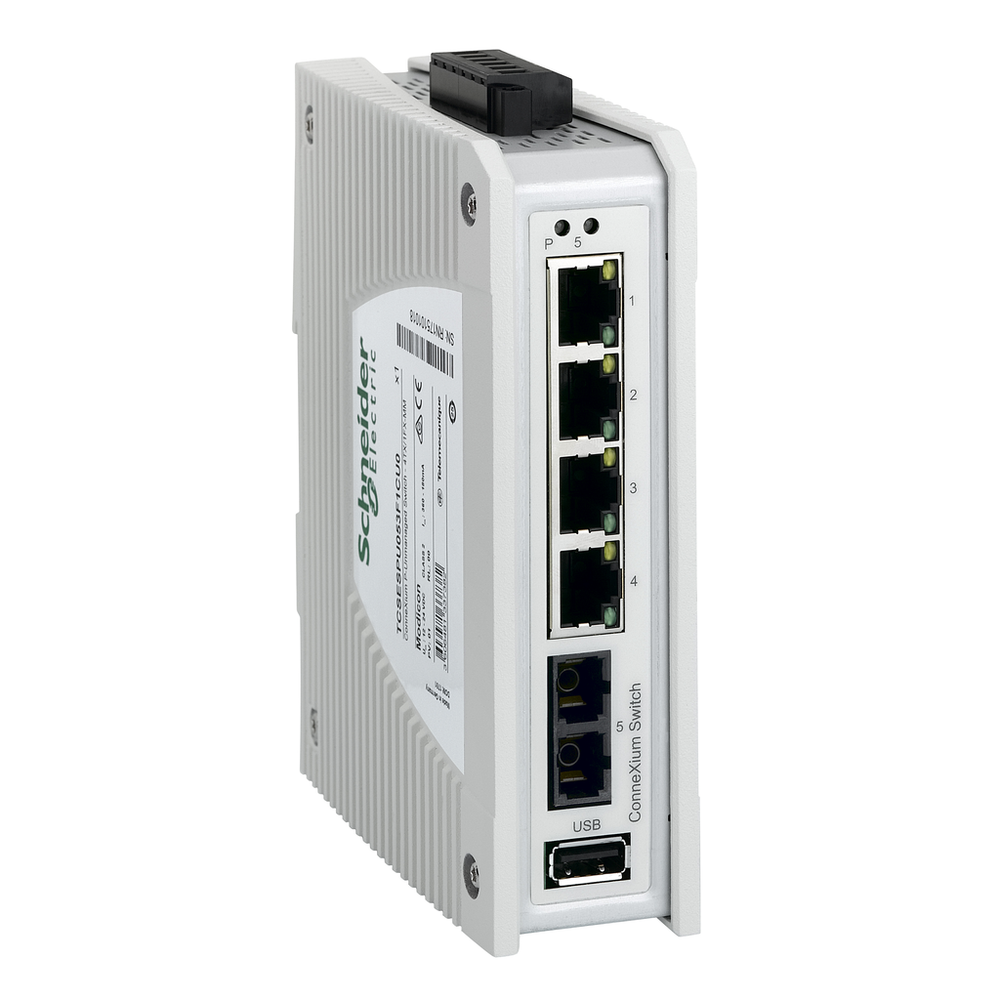

Schneider Electric TCSESPU053F1CU0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
switch, Modicon Networking, premium unmanaged switch, 4 ports for copper, 1 port for fiber optic multimode
Schneider Electric TCSESPU053F1CU0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Attenuation
- 0-11 dB 62.2/125 µm) || 0-8 dB 50/125 µm)
- Communication Service
- Quality of Service (QoS)
- Depth
- 117 mm
- Electrical Connection
- removable connector 6 ways power supply
- Ethernet Cabling System
- TF switches
- Ethernet Service
- multicast filtering || data stream control
- Height
- 135 mm
- Integrated Connection Type
- shielded RJ45 copper cable || duplex SC fiber optic
- Local Signalling
- for P1 P2 power supplies 1 dual colour LED (green/yellow) || for data rate (ETH LINK) 1 LED per channel (yellow) || for link status 1 dual colour LED (green/yellow)
- Marking
- CE || UL || RCM
- Maximum Cable Distance Between Devices
- 100 m copper cable
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.430 kg
- Optic Fiber Length
- 4 km 62.5/125 µm || 5 km 50/125 µm
- Power Consumption In W
- 4.3 W
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable || multimode optical fiber fiber optic
- [Us] Rated Supply Voltage
- 12...24 V
- Width
- 39 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-+70 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP40
- Product Certifications
- CE || UL || RCM
- Relative Humidity
- 10-95 % non-condensing
- Standards
- UL 61010 || EN/IEC 61131
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Specifications
- Communication Port Protocol
- Ethernet TCP/IP
- Concept
- Transparent Ready
- Maximum Number Of Switches In Cascade
- unlimited
- Port Ethernet
- 10/100BASE-TX - 4 copper cable || 100BASE-FX - 1 fiber optic
- Product Or Component Type
- Ethernet TCP/IP unmanaged switch
- Range Of Product
- ConneXium
