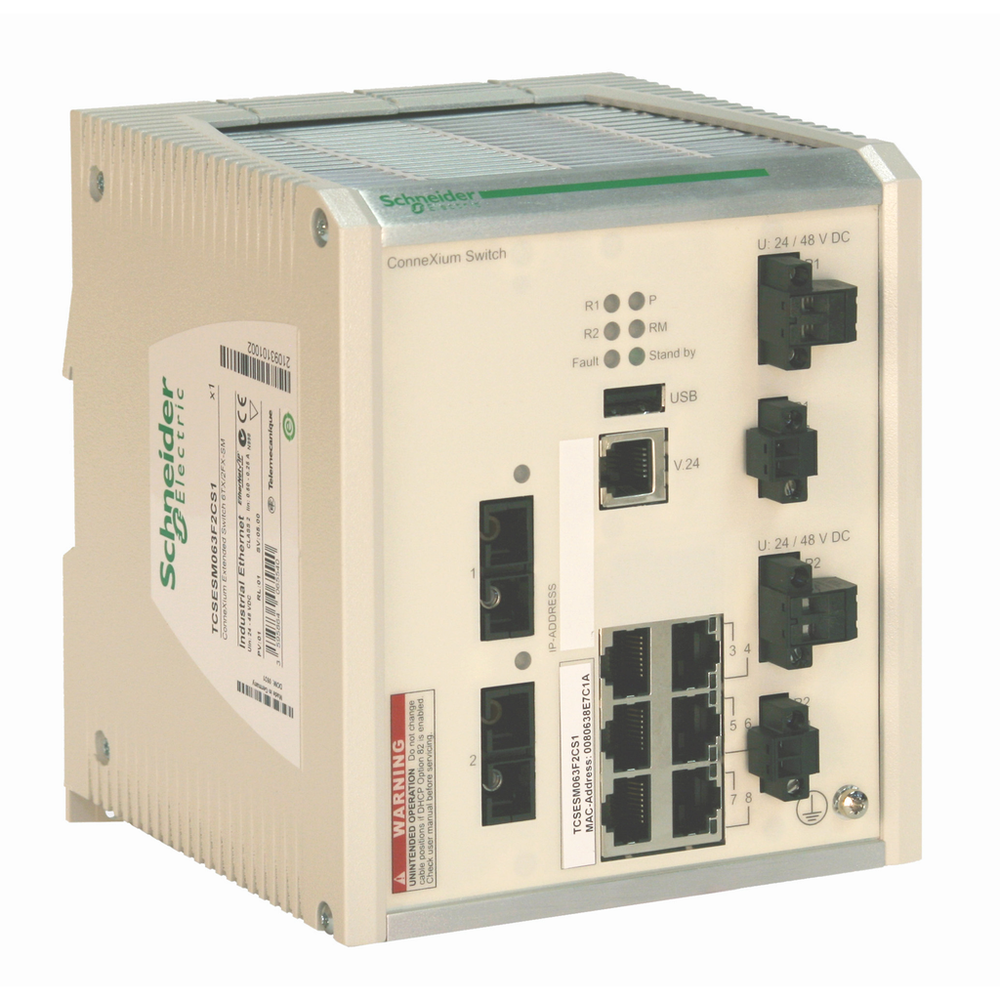

Schneider Electric TCSESM063F2CS1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP extended managed switch has two 100BASE-FX ports for fibre optic and six 10BASE-T/100BASE-T ports for copper cable. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 12W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with two 2-way removable connectors (power supply) for electrical connection. The supported transmission mediums are twisted shielded pair category 5E copper cable and single mode fibre optic. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, VLAN, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP30 rated product. Its dimensions are 120mm (width) x 115mm (depth) x 137mm (height) and weighs 1kg. This product is certified by CE, LR, BV, GL and C-Tick. It meets IEC 61850-3, CSA C22.2 No 213 Class I Division 2, CSA C22.2 No 214, UL 1604 Class 1 Division 2, EN/IEC 61131-2 and UL 508 standards. It supports 35mm symmetrical DIN rail mount.ConneXium Extended Managed Switch - 6 ports for copper + 2 ports for fiber optic single-mode
Schneider Electric TCSESM063F2CS1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Alarm Function
- power supply fault || data link status || temperature threshold || external memory removed
- Alarm Output
- 2 voltfree contact 2 A
- Attenuation
- 0-16 dB 9/125 µm)
- Communication Service
- TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection
- Depth
- 115 mm
- Diagnostics Run Time
- signal contact || self test
- Electrical Connection
- 2 removable connectors 2 ways power supply
- Ethernet Cabling System
- TF switches
- Ethernet Service
- configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG
- Function Available
- alarms (Traps) || system information || report || Trap log
- Height
- 137 mm
- Integrated Connection Type
- duplex SC fiber optic || shielded RJ45 copper cable
- Local Signalling
- for P1 P2 power supplies 1 dual colour LED (green/yellow) || for fault 1 LED (red) || for ring manager 1 dual colour LED (green/yellow) || for stand-by 1 LED (red) || for signal contact 1 1 LED (yellow) || for signal contact 2 1 LED (yellow) || for channel diagnostic 1 LED per channel (green/yellow) || Device status
- Marking
- CE || UL || RCM || ATEX
- Maximum Cable Distance Between Devices
- 100 m copper cable
- Maximum Number Of Switches In A Ring
- 50
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 1 kg
- Optic Fiber Length
- 32.5 km 9/125 µm
- Power Consumption In W
- 12 W
- Redundancy
- HiPER ring || RSTP || redundant network coupling
- Supply Voltage Limits
- 18-60 V DC SELV
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable || single mode optical fiber fiber optic
- [Us] Rated Supply Voltage
- 24...48 V
- Width
- 120 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP30
- Product Certifications
- CE || UL || RCM || ATEX || LR || GL || BV
- Relative Humidity
- 10-95 % non-condensing
- Standards
- UL 508 || EN/IEC 61131 || IEC 61850-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1003004EN
- Environmental Disclosure
- ENVPEP100304EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || LLDP || Telnet || SNTP || MRP (Media Redundancy Protocol)
- Concept
- Transparent Ready
- Cybersecurity
- port hardening
- Maximum Number Of Switches In Cascade
- unlimited
- Port Ethernet
- 100BASE-FX - 2 fiber optic || 10/100BASE-TX - 6 copper cable
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Range Of Product
- ConneXium
