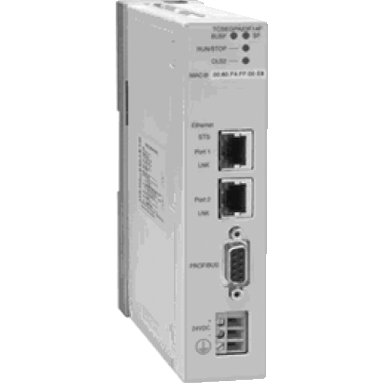

Schneider Electric TCSEGPA23F14FK
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC - coated
Schneider Electric TCSEGPA23F14FK is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Service
- check slave configuration (on power up) class 1 master || acyclic DP V1 communication (R/W) class 1/2 master || manage monitoring request (Global CONTROL and Get Master Diag) class 2 master || no master/master dialogue class 2 master || Profibus FMS message handling not supported class 1 master || Profibus FMS message handling not supported class 2 master || read/write DP slave I/O data class 1 master || set slave parameters (on power up) class 1 master || transfer slave diagnostic data class 1 master || sync and freeze class 1 master
- Current Consumption
- 200 mA 24 V DC external
- Integrated Connection Type
- 2 Ethernet TCP/IP - RJ45 Modbus TCP || Profibus DP - SUB-D 9 Profibus DP V1
- Method Of Access
- master class 1 Profibus DP || master class 2 Profibus DP || slave Modbus TCP
- Mode Of Transmission
- NRZ
- Module Format
- standard
- Net Weight
- 0.62 kg
- Number Of Inputs
- 2
- Number Of Outputs
- 2
- Number Of Slave
- 126
- Physical Interface
- RS485
- Transmission Rate
- 12 Mbit/s, 100 m Profibus without repeater || 12 Mbit/s, 400 m Profibus with 3 repeaters || 9.6 kbit/s, 1200 m Profibus without repeater || 9.6 kbit/s, 4800 m Profibus with 3 repeaters || 10...100 Mbit/s, 100 m Modbus TCP without repeater
- Transmission Support Medium
- Profibus 2 twisted shielded pairs cable || Modbus TCP category 5 shielded twisted pair (STP)
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -45-85 °C
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Protective Treatment
- conformal coating Humiseal 1A33
- Relative Humidity
- 10-95 % without condensation
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Gateway
- Ethernet Modbus TCP to Profibus DP V1 gateway
- Kit Composition
- CD including the communication DTM || CD including the Master DTM for PRM configuration inside UNITY
- Product Compatibility
- M580 PLC || Premium PLC || M340 PLC || Quantum PLC
- Product Or Component Type
- Profibus DP V1 remote master
- Range Of Product
- Profibus DP
- Structure Type
- industrial bus
