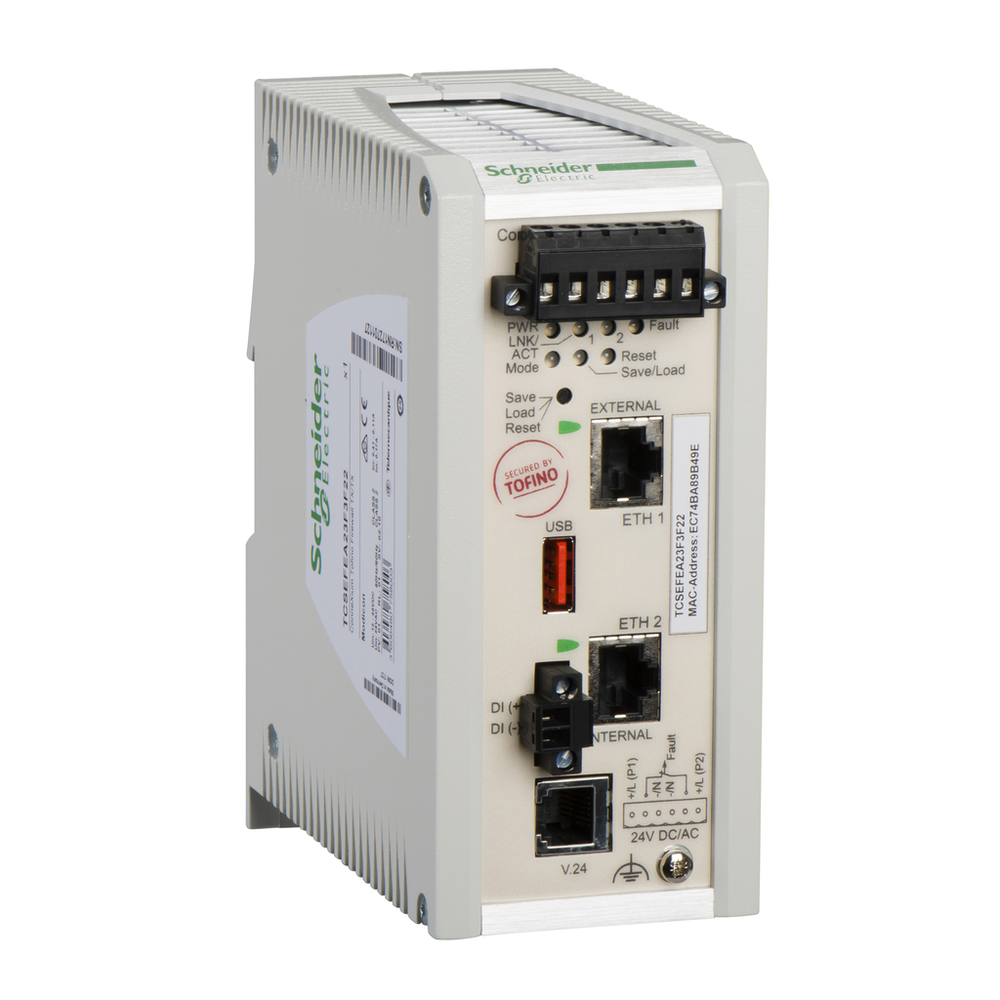

Schneider Electric TCSEFEA23F3F22
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
firewall, Modicon Networking, tofino firewall, 2 ports for copper
Schneider Electric TCSEFEA23F3F22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Alarm Function
- power supply fault || data link status || switch fault
- Alarm Output
- 1 voltfree contact 1 A
- Depth
- 125 mm
- Electrical Connection
- removable connector 6 ways power supply
- Ethernet Cabling System
- TF switches
- Ethernet Service
- multicast filtering
- Height
- 145 mm
- Integrated Connection Type
- shielded RJ45 copper cable
- Local Signalling
- for P1 P2 power supplies 2 LEDs (green) || for fault 1 LED (red) || for device status 1 dual colour LED (green/yellow) || for memory key status 1 dual colour LED (green/yellow) || for internal port status 1 dual colour LED (green/yellow) || for serial port status 1 dual colour LED (green/yellow)
- Marking
- CE
- Maximum Cable Distance Between Devices
- 100 m copper cable
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.66 kg
- Power Consumption In W
- 5 W
- Redundancy
- redundant power supplies
- Supply Voltage Limits
- 9.6-60 V DC SELV || 18-30 V AC SELV
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable
- [Us] Rated Supply Voltage
- 12...48 V
- Width
- 60 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || UL || RCM || DNV
- Relative Humidity
- 10-95 % non-condensing
- Standards
- UL 508 || EN/IEC 61131 || EN/IEC 60950
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || SFTP || SCP || LLDP || RS232
- Concept
- Transparent Ready
- Cybersecurity
- IPSec || DoS prevention
- Encryption Protocol
- MAC addresses filtering
- Port Ethernet
- 10/100BASE-TX - 2 copper cable
- Product Or Component Type
- Ethernet TCP/IP firewall
- Range Of Product
- ConneXium
- User Interface
- built-in firewall
