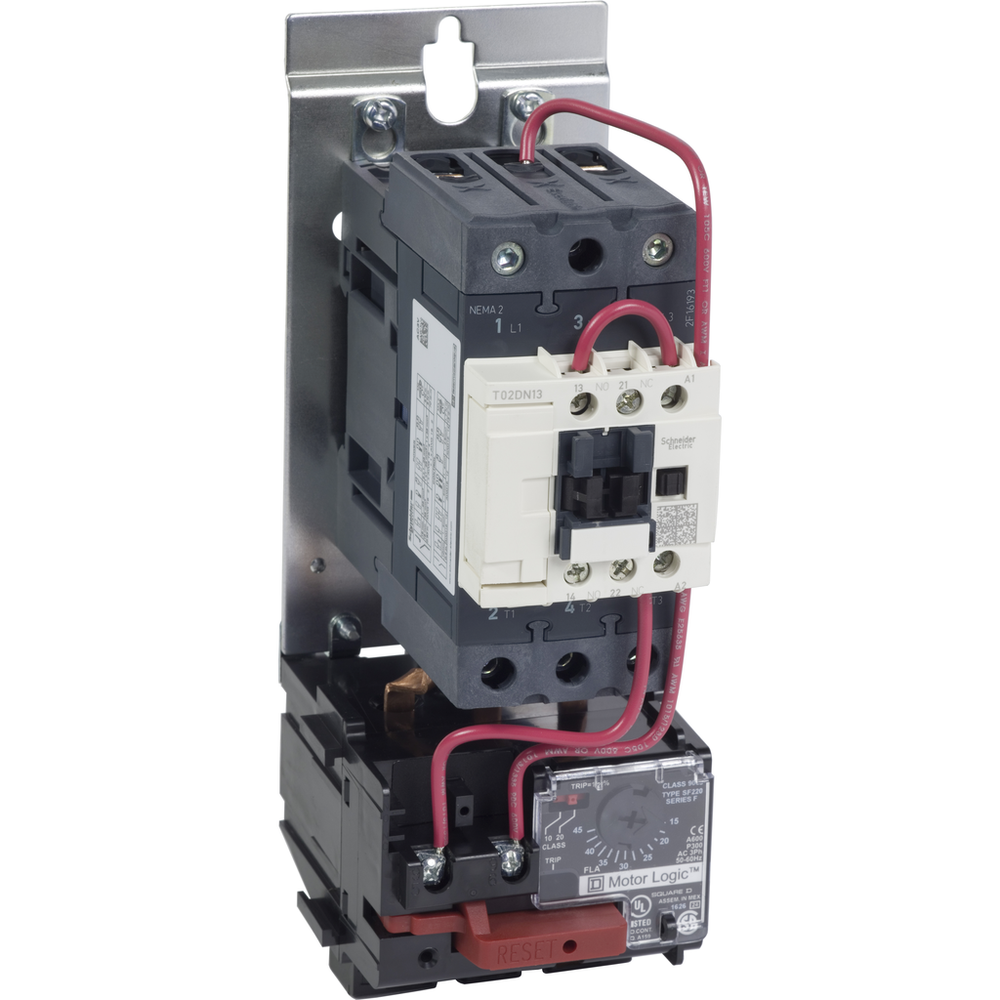

Schneider Electric T36DN13G7
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 2 motor starter has a 45 amperage continuous current rating. It also has ratings of 10 HP at 200 VAC, of 15 HP at 230 VAC, of 25 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 15 to 45 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.Motor Starter, TeSys NEMA, nonreversing, Size 2, 45A, 3 pole, HP rated, Motor Logic SSOLR, 120 VAC 60 Hz coil, open
Schneider Electric T36DN13G7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Control Circuit
- common control circuit
- Electrical Connection
- screw clamp terminals
- Line Rated Current
- 45 A
- Motor Starter Type
- non reversing
- Nema Degree Of Protection
- not rated (open device)
- Nema Size
- 2
- Phase
- 3 phase
- Poles Description
- 3P
- Product Certifications
- UL Listed || CSA
- Product Or Component Type
- starter
- Range Of Product
- TeSys N
- Rated Power In Hp
- 10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC
- Thermal Overload Type
- solid state Motor Logic class 10/20 15-45 A
- [Uc] Control Circuit Voltage
- 120 V AC
- [Ue] Rated Operational Voltage
- 600 V AC
