Description

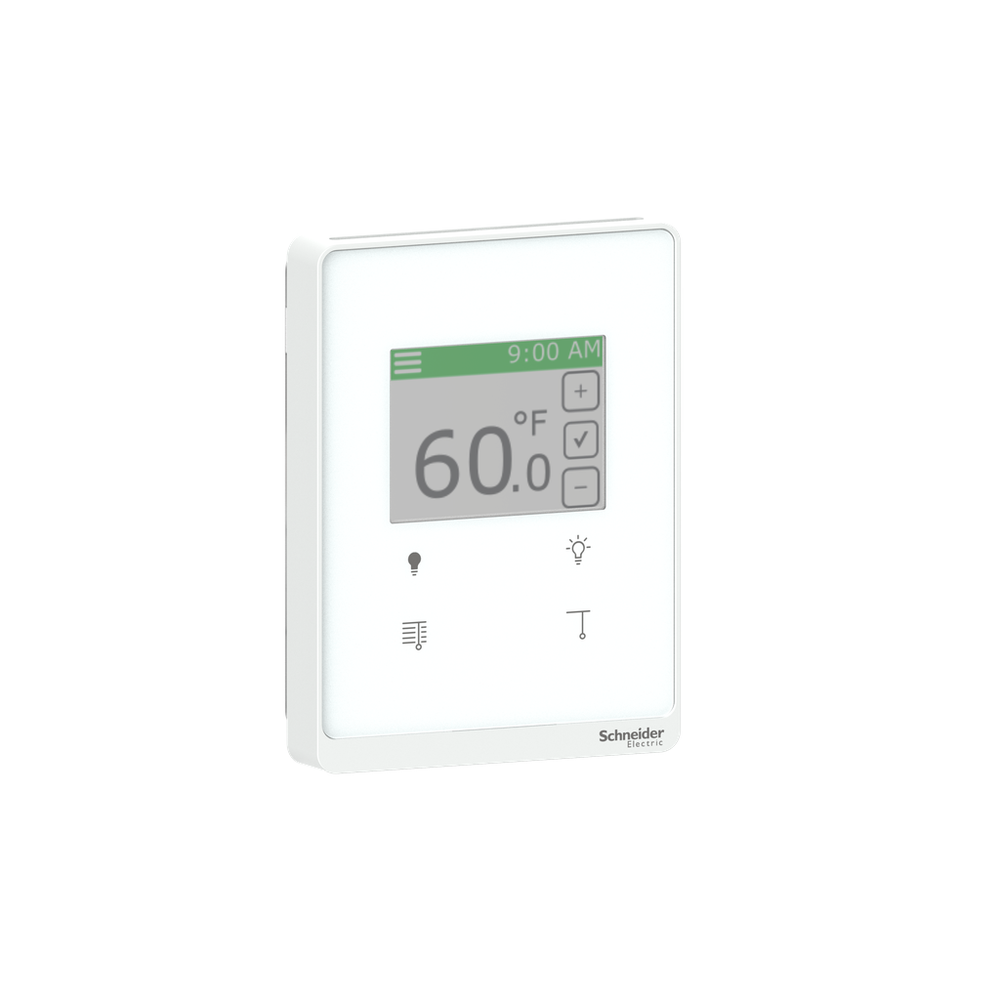

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 sensor bus that provides communication and power from the SmartX IP controller. SmartX living space sensors are modular and are ordered in two parts: the sensor base and the cover. Four SmartX communicating sensor base models are available that can be paired with any one of the SmartX modular covers. The SXWSC2PSELXW touchscreen cover displays current time, temperature, humidity percentage (if equipped), CO2 ppm (if equipped), as well as heating, cooling and Eco mode status. Several parameters are adjustable using the touchscreen, from temperature: setpoint, override, temperature scale, fan speed, heating mode, cooling mode. To building environment: blinds open/closed/adjust and blind angle. Setpoint, override, display timeout and display lockout parameters are configured using EcoStruxure Building Operation software. The Optimum White housing has a glass front panel with four off screen buttons for light/blind control and an upgraded look and feel and is a great option for new construction and retrofit projects.SmartX Cover Plate, for Sensor Base, Touchscreen, with 4 Buttons Light/Blind, Optimum White Cover
Schneider Electric SXWSC4XSELXW is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- bus terminal back)
- Control Type
- tactile || ON-OFF 2 function keys, for lamp || UP-DOWN 2 function keys, for roller blind
- Function Available
- override switches || setpoint adjustment || blind control || light control
- Material
- ABS (acrylonitrile butadiene-styrene) GF10 FR
- Range Compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers || EcoStruxure Building Operation SmartX Living Space Sensor base unit
- Supply
- base
Offer Sustainability
- Circularity Profile
- ENVEOLI1912001EN
- Environmental Disclosure
- ENVPEP1912001EN
- Eu Rohs Directive
- Compliant
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Ambient Air Temperature For Operation
- 0-50 °C
- Color
- White
- Depth
- 20 mm
- Device Application
- HVAC || control
- Device Presentation
- cover plate
- Display Resolution
- 320 x 240 pixels
- Display Size
- 2.4 inch
- Display Type
- colour touchscreen
- Flame Retardance
- UL94-V0
- Height
- 115 mm
- Information Displayed
- temperature || temperature set point || operating mode || menu-driven user interface || time
- Ip Degree Of Protection
- IP20
- Location
- Living Space
- Product Certifications
- CE EN 61000-6-3 || RCM || EAC || ICES-003
- Product Name
- SmartX Living Space Sensor
- Product Or Component Type
- cover
- Range
- SpaceLogic
- Standards
- UL 916 || FCC Part 15 class B
- Surface Finish
- glossy
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 85 mm
