Description

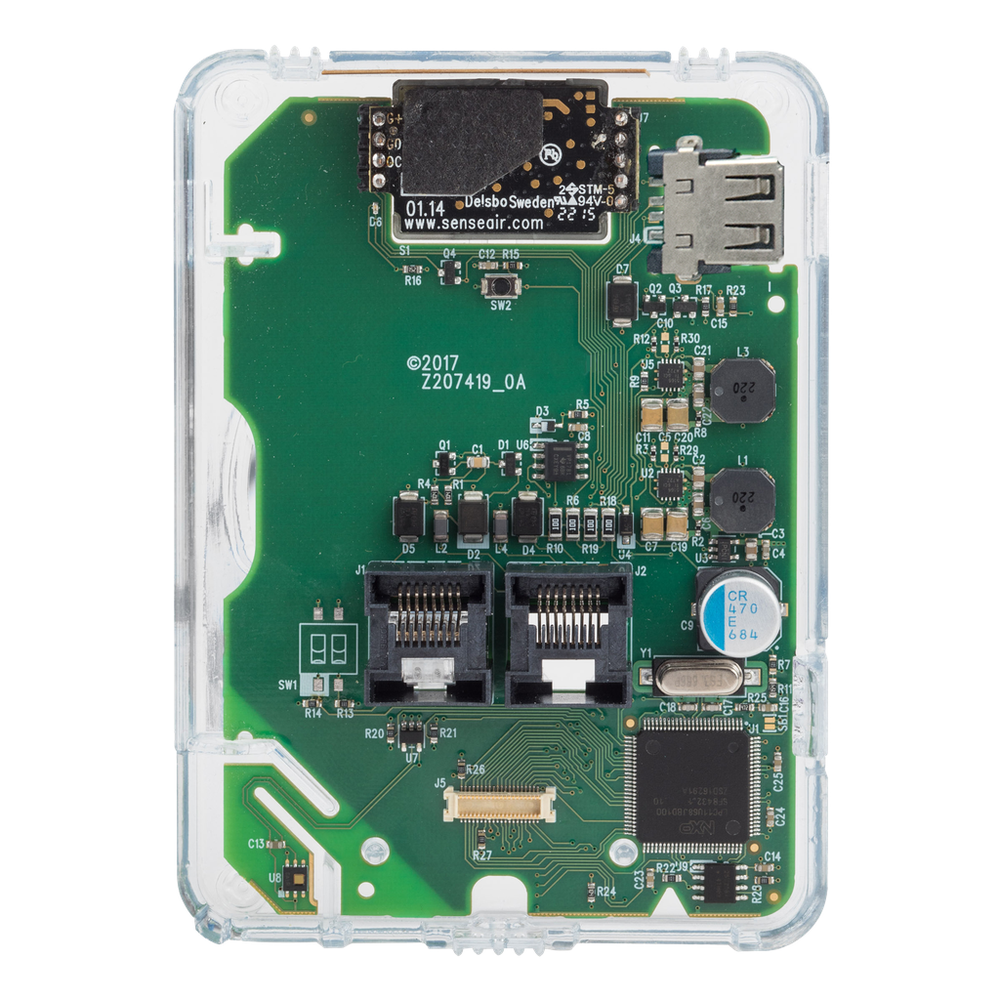

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller. Without housing. This base include a temperature element.Sensor Base for SmartX IP Controllers Temp, Humidity - Cover not included
Schneider Electric SXWSBTHXXSXX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Support
- RJ45
- Function Available
- with temperature sensor || with humidity sensor
- Hysteresis
- 1.5 %
- Material
- ABS (acrylonitrile butadiene-styrene) GF10 FR
- Max Power Consumption In W
- 2 W
- Output Type
- sensor bus
- Range Compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers || EcoStruxure Building Operation SmartX Living Space Sensor sensor coverplate
- Supply
- via bus connector
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1803001
- Environmental Disclosure
- ENVPEP1803001
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
Specifications
- Ambient Air Temperature For Operation
- 0-50 °C
- Color
- White
- Depth
- 20.7 mm
- Device Presentation
- without cover
- Display Type
- Without Display
- Flame Retardance
- UL94-V0
- Height
- 111.6 mm
- Ip Degree Of Protection
- IP20
- Location
- Living Space
- Product Certifications
- CE EN 61000-6-3 || RCM || EAC || ICES-003
- Product Name
- SmartX Living Space Sensor
- Product Or Component Type
- sensor
- Range
- SpaceLogic
- Sensor Type
- transmitter
- Standards
- UL 916 || FCC Part 15 class B
- Type Of Measurement
- Humidity || Temperature
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 81.2 mm
