Description

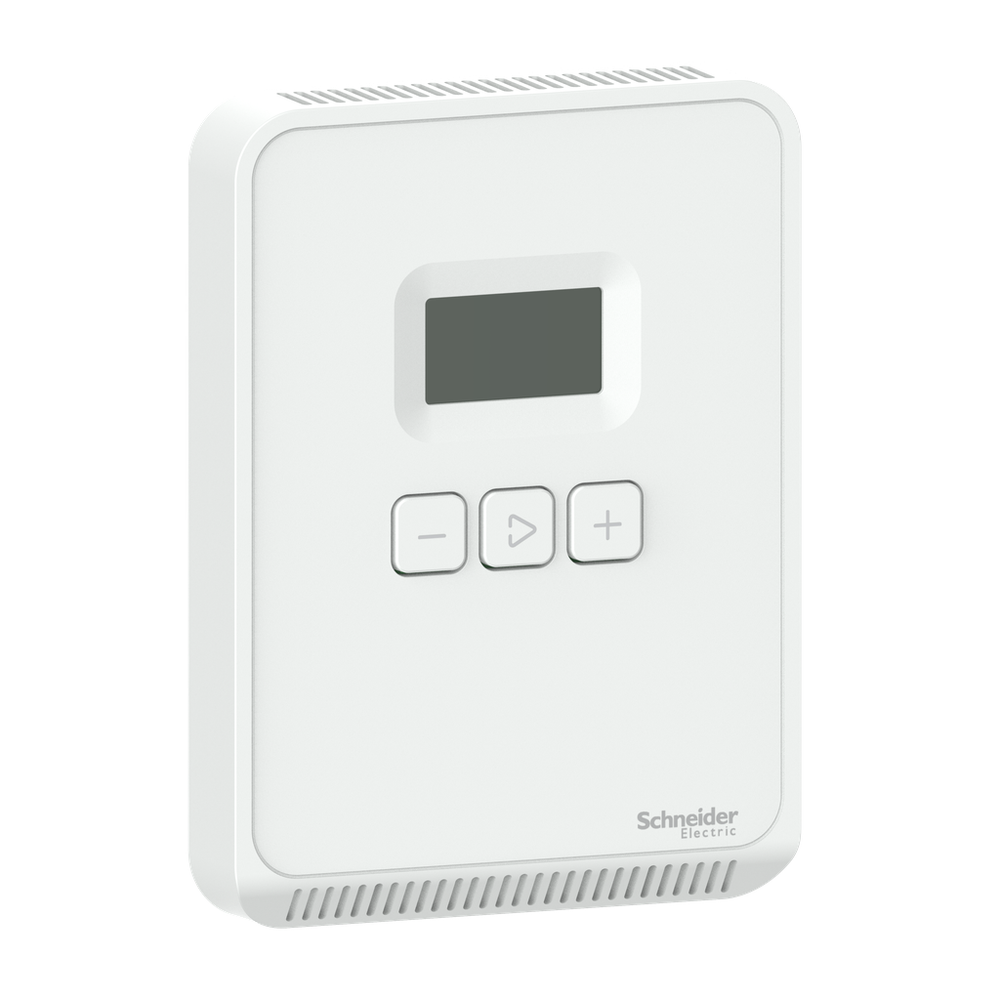

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller.SmartX temperature sensor , LCD display, setpoint override, cover included
Schneider Electric SXWSATXXXSLX is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Support
- RJ45
- Control Type
- + button || - button || present/absent symbol button
- Device Presentation
- complete product
- Display Type
- LCD display
- Information Displayed
- temperature || operating mode || heating/cooling symbol
- Local Signalling
- 1 red, green and blue LED modulating heating or air-conditioning application
- Material
- ABS (acrylonitrile butadiene-styrene)
- Max Power Consumption In W
- 2 W
- Range Compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- [Us] Rated Supply Voltage
- 24 V DC
Environment
- Measurement Range
- 0...50 °C temperature
- Product Certifications
- CE EN 61000-6-3 || RCM || EAC || ICES-003
- Temperature Setting Range
- 0-50 °C
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1803001
- Environmental Disclosure
- ENVPEP1803001
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
Specifications
- Ambient Air Temperature For Operation
- 0-50 °C
- Color
- White
- Depth
- 24 mm
- Device Application
- HVAC || temperature control || fan speed controller
- Display Size
- 30 x 17 mm
- Flame Retardance
- UL94-V0
- Function Available
- override switches || setpoint adjustment
- Height
- 115 mm
- Ip Degree Of Protection
- IP20
- Location
- Living Space
- Output Type
- SmartX Sensor Bus
- Product Name
- SmartX Living Space Sensor
- Product Or Component Type
- sensor
- Product Specific Application
- cooling || heating
- Range
- SpaceLogic
- Relative Humidity
- 0-95 %
- Sensor Type
- transmitter
- Standards
- UL 916 || FCC Part 15 class B
- Surface Finish
- Matte
- Type Of Measurement
- Temperature
- Width
- 85 mm
