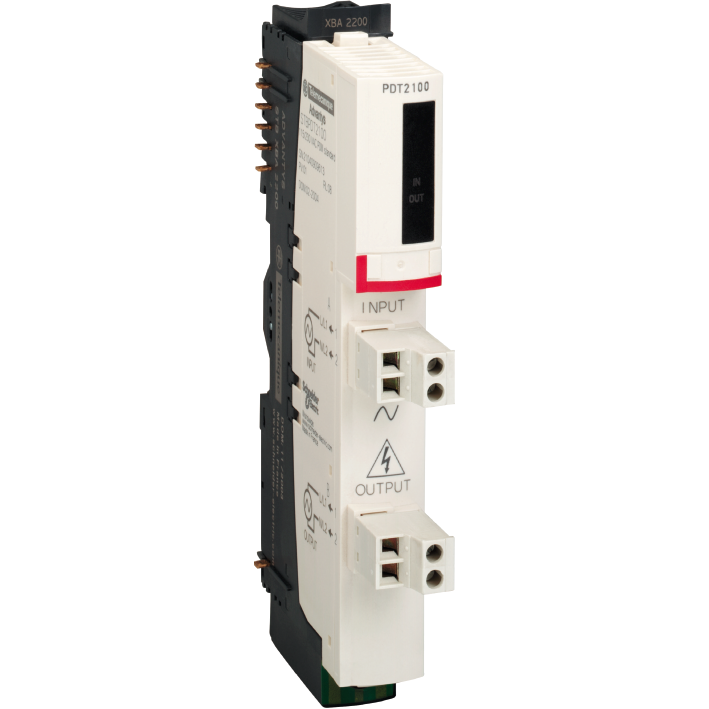

Schneider Electric STBPDT2100K
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
standard power distribution kit STB - 115..230 V AC
Schneider Electric STBPDT2100K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 65.1 mm
- Height
- 18.4 mm
- Hot Swapping Fallback
- hot swapping illegal
- Kit Composition
- STBPDT2100 module || STBXBA2200 base || STBXTS2130, spring type connectors || STBXTS1130, screw type connectors
- Marking
- CE
- Net Weight
- 0.129 kg
- Overvoltage Category
- II
- Permissible Current
- 30 A for 2 minutes grounding terminal
- Power Supply Output Current
- 0-10 A 30 °C output circuit) || 0-2.5 A 60 °C input circuit) || 0-5 A 30 °C input circuit) || 0-5 A 60 °C output circuit)
- Product Compatibility
- mounting base STBXBA2200
- Protection Type
- built-in overcurrent protection, 10 A time-lag output circuit || built-in overcurrent protection, 5 A time-lag input circuit
- Status Led
- 1 LED (Green) actuator bus power supply (OUT) || 1 LED (Green) sensor bus power supply (IN)
- Supply Circuit Type
- AC
- Supply Frequency
- 50...60 Hz
- [Us] Rated Supply Voltage
- 115...230 V
- Voltage Detection Threshold
- < 50 V +/-5 AC IN/OUT LED non lit || > 70 V +/-5 AC IN/OUT LED lit
- Voltage Range
- 85...265 V AC sensor/actuator bus
- Width
- 125 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C without)
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20 conforming to EN 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- CSA || FM Class 1 Division 2 || UL
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Vibration Resistance
- +/-0.35 mm 10-58 Hz || 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- standard power distribution kit
- Range Of Product
- Modicon STB distributed I/O solution
