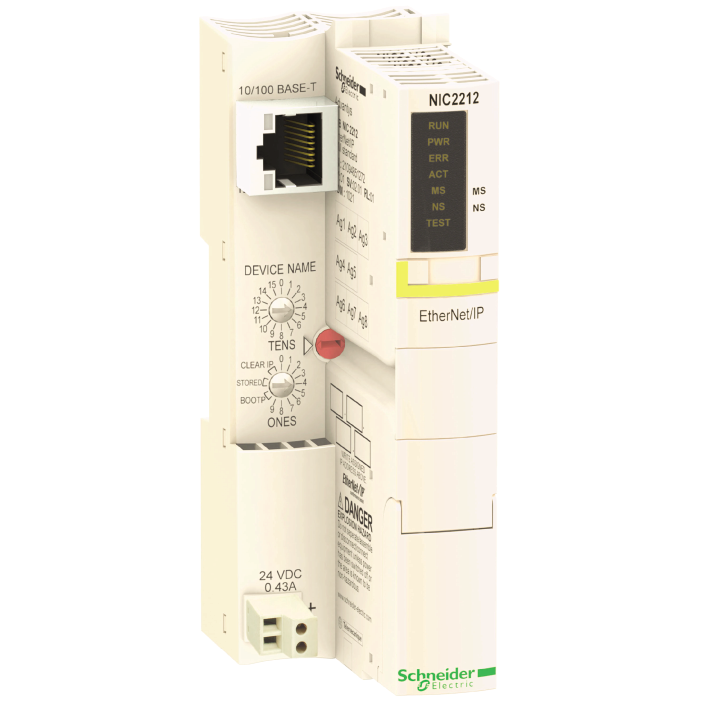

Schneider Electric STBNIC2212
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s
Schneider Electric STBNIC2212 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Service
- embedded web (configuration,diagnostics and access to variable) || BootP/DHCP protocol || SNMP agent
- Depth
- 70 mm
- Height
- 40 mm
- Input Current
- 430 mA supply circuit
- Marking
- CE
- Maximum Supply Current
- 700 A
- Net Weight
- 0.145 kg
- Nominal Output Current
- 0.575 A 60-70 °C || 1.2 A
- Number Of Addressable I/O Module
- 0-32 per island
- Output Voltage
- 5.25 V DC +/- 0.21 %)logic bus
- Overvoltage Category
- II
- Power Supply Type
- SELV
- Status Led
- 1 LED ACT || 1 LED island state (RUN) || 1 LED module error (ERR) || 1 LED MS || 1 LED NS || 1 LED power supply (PWR) || 1 LED test mode (TEST)
- Supply Voltage Limits
- 19.2-30 V
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 128.3 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C without derating) || -25-70 °C with derating factor)
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- UL || ODVA || C-tick || CSA
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Standards
- FM Class 1 division 2, groups A, B, C and D T4A with 70 °C || IEC 61131-2 : 2003
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP080803EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Exchange Mode
- half or full duplex
- Integrated Connection Type
- Ethernet/IP IEEE 802.3 female RJ45 double shielded twisted pair via Ethernet network) || Ethernet/IP IEEE 802.3 HE-13 RS232 port) || Ethernet/IP IEEE 802.3 8-way female RS232 port)
- Number Of Devices Per Segment
- 0-256
- Number Of Segments
- 1 primary, maximum 6 extensions
- Port Ethernet
- 10BASE-T/100BASE-T
- Product Or Component Type
- standard Network Interface Module
- Range Of Product
- Modicon STB distributed I/O solution
- Transmission Rate
- 10/100 Mbit/s
