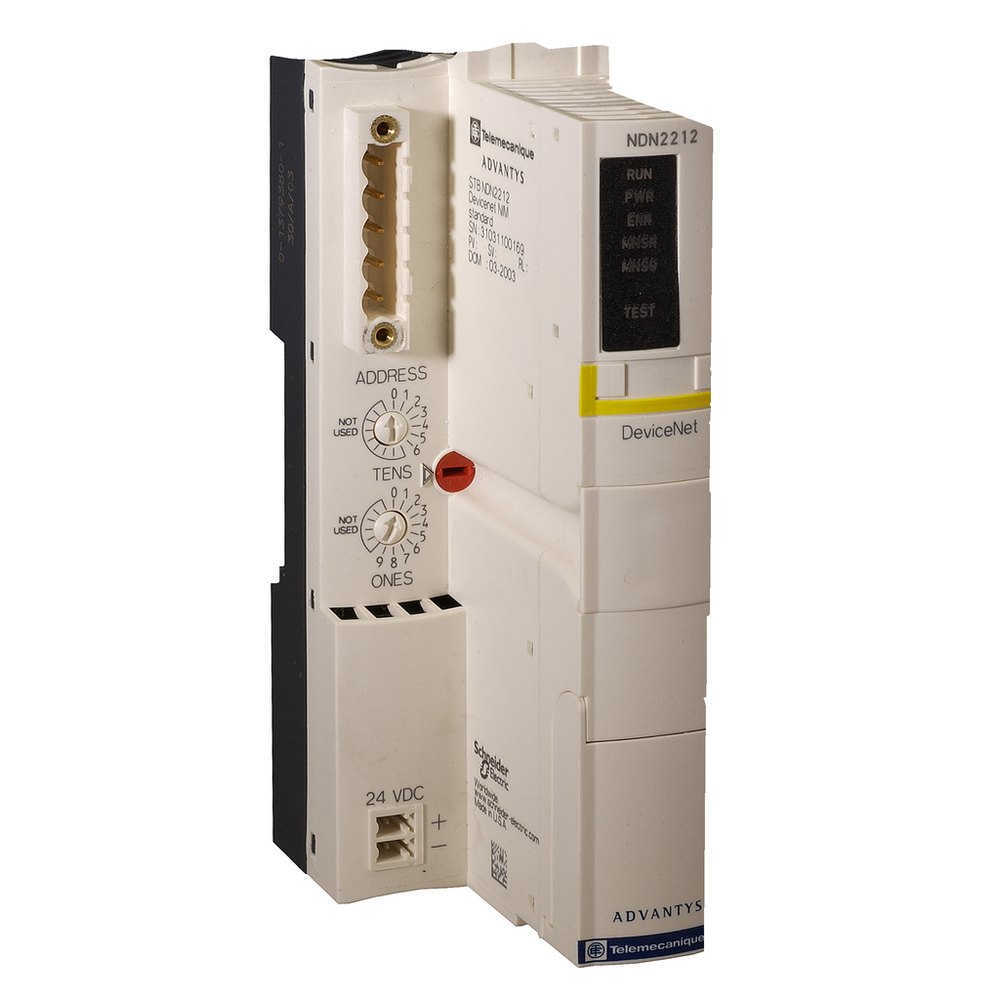

Schneider Electric STBNDN2212
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
standard Network Interface Module STB - DeviceNet - 125..500 kbit/s
Schneider Electric STBNDN2212 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Service
- Island Bus Object (class ID101) || DeviceNet Object (class ID3) || Connection Object (class ID5)
- Depth
- 70 mm
- Height
- 40 mm
- Input Current
- 430 mA supply circuit
- Marking
- CE
- Maximum Output Impedance
- 0.05 Ohm 100000 kHz
- Maximum Supply Current
- 700 A
- Nominal Output Current
- 0.575 A 60-70 °C || 1.2 A
- Number Of Addressable I/O Module
- 0-32 per island
- Output Voltage
- 5.25 V DC +/- 0.21 %)logic bus
- Overvoltage Category
- II
- Power Supply Type
- SELV
- Status Led
- 1 LED (Green) island state (RUN) || 1 LED (Green) MNSG || 1 LED (Green) MNSR || 1 LED (Green) power supply (PWR) || 1 LED (Red) module error (ERR) || 1 LED (Yellow) test mode
- Supply Voltage Limits
- 19.2-30 V
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 128.3 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C without derating) || -25-70 °C with derating factor)
- Ambient Air Temperature For Storage
- -40-85 °C
- Electromagnetic Compatibility
- immunity to electromagnetic interference IEC 61131-2
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- FM Class 1 Division 2 || CSA || UL || ATEX Cat 3G || C-tick
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP080803EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Integrated Connection Type
- DeviceNet Open DeviceNet Vendors Assoc 5-way male 1 twisted pair network) || DeviceNet Open DeviceNet Vendors Assoc HE-13 RS232 port) || DeviceNet Open DeviceNet Vendors Assoc 8-way female RS232 port)
- Number Of Segments
- 1 primary, maximum 6 extensions
- Number Of Slave
- 64
- Product Or Component Type
- standard Network Interface Module
- Range Of Product
- Modicon STB distributed I/O solution
- Transmission Rate
- 125...500 kbit/s 0-1200 m
