Description

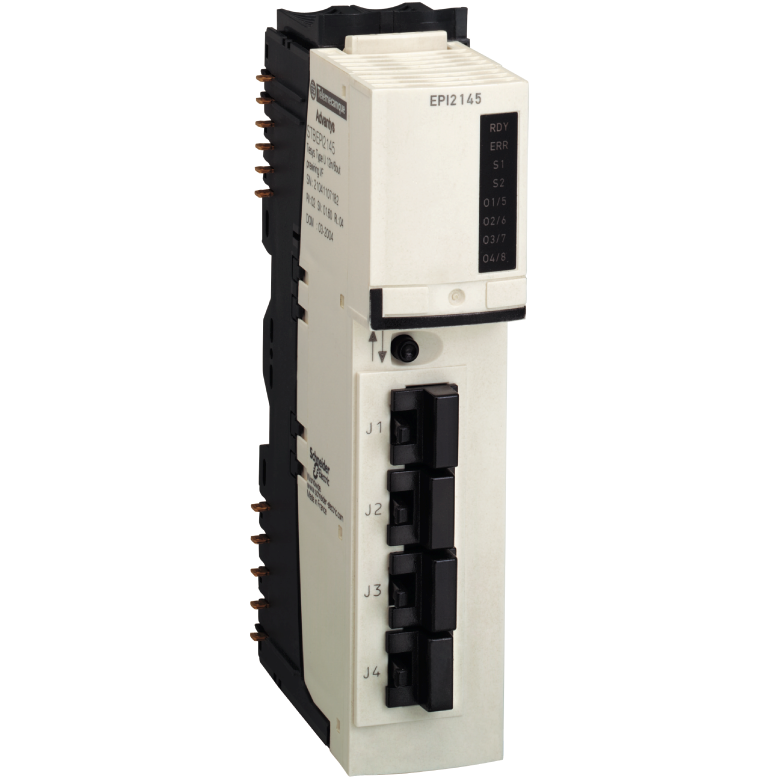

This product is part of the Modicon STB range, an offer of modular distributed I/O. This parallel interface kit has 12 inputs channels and 8 output channels. It is a parallel interface kit with a rated supply voltage of I/O voltage of 24V DC, a current consumption of ≤100mA at 24V DC for sensor bus, ≤220mA at 24V DC for actuator bus for 150ms, 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is furnished with 4 RJ45 connectors for electrical connection. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 170mm (depth) x 28.1mm (height) and weighs 0.165kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.parallel interface kit, Modicon STB, 12 inputs 8 outputs channel
Schneider Electric STBEPI2145K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cold Swapping
- yes
- Current Consumption
- <= 100 mA 24 V DC sensor bus || <= 220 mA 24 V DC actuator bus for 150 ms || 100 mA 5 V DC logic bus || 50 mA 24 V DC actuator bus (with all 8 outputs at state 0) || 80 mA 24 V DC actuator bus per output at state 1
- Current State 0 Guaranteed
- <= 0.5 mA
- Current State 1 Guaranteed
- >= 2 mA
- Depth
- 170 mm
- Electrical Connection
- 4 RJ45 connectors
- Fallback Status
- state 0 basic NIMs || user configurable standard NIMs
- Height
- 28.1 mm
- Hot Swapping Fallback
- yes for standard NIMs
- Input Voltage
- 24 V
- Input Voltage Limits
- 15...30 V at state 1 || -3...5 V at state 0
- Input Voltage Type
- DC
- Kit Composition
- terminal spring clamp connector || STBXBA3000 base || terminal screw type connector || STBEPI2145 module
- Marking
- CE
- Net Weight
- 0.165 kg
- Number Of Input Channels
- 12
- Number Of Output Channels
- 8
- Output Voltage
- 24 V
- Output Voltage Type
- DC
- Overvoltage Category
- II
- Product Compatibility
- power distribution module STBPDT3100/3105 || mounting base STBXBA3000
- Protection Type
- power protection integrated fuse on PDM time lag 10 A || overload protection || short-circuit protection || input protection resistor-limited
- Status Led
- 1 LED (Green) module status (RDY) || 1 LED (Red) module error (ERR) || 2 LEDs (Green) switch position (S1 and S2) || 4 LEDs (Green) output status
- Supply
- power distribution module
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 128.3 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C without derating)
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- FM Class 1 Division 2 || UL || CSA
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- parallel interface kit
- Product Specific Application
- TeSys Quickfit || TeSys U
- Range Of Product
- Modicon STB distributed I/O solution
