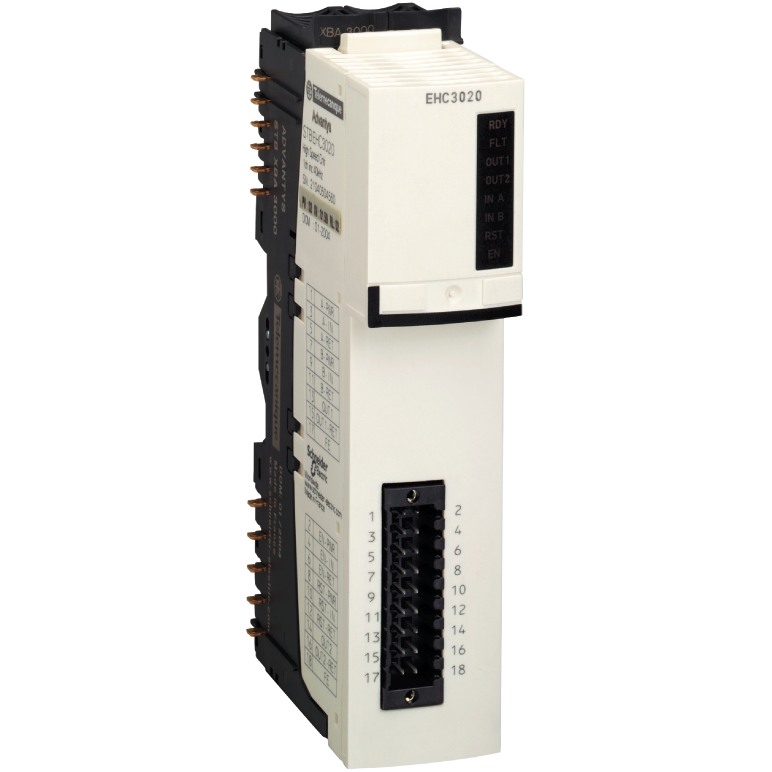

Schneider Electric STBEHC3020KC
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This counter kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 inputs and single channel. It has rated supply voltage of 24V DC. This product is compatible with most major fieldbus networks. It supports maximum counting frequency of 40000Hz with counter functions like measuring time periods, up/down counting, down counting, frequency meter, loop (modulo) counting and count events. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 28.1mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.counter kit, Modicon STB, 1 channel, 0-40000Hz, 2 I
Schneider Electric STBEHC3020KC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cold Swapping
- yes
- Counter Configuration
- Modicon configuration software
- Counter Functions
- measure time periods || up/down counting || down counting || frequency meter || loop (modulo) counting || count events
- Counting Input Number
- 2
- Current Consumption
- 60...100 mA 5 V DC logic bus
- Current State 0 Guaranteed
- <= 1.5 mA
- Current State 1 Guaranteed
- >= 2 mA
- Depth
- 70 mm
- Discrete Output Logic
- positive or negative configurable
- Fallback Status
- hold last value configured || state 0 for output channels by default || state 0 or 1 for each channel configured
- Filter Time
- 0 ms digital 40000 Hz counting inputs || 0.4 ms digital 1000 Hz counting inputs || 1.2 ms digital 400 Hz counting inputs || 2.5 µs analog counting inputs || 25 µs analog auxiliary input
- Height
- 28.1 mm
- Hot Swapping Fallback
- fallback output depending on parameter setting configured mandatory standard network interface module || fallback to 0 not configured mandatory standard network interface module || fallback to 0 basic network interface module
- Input Compatibility
- 2/3 wire photo-electric sensor || mechanical contact || with 2-wire/3-wire proximity sensors || incremental encoder
- Input Current
- 6 mA
- Input Logic
- positive
- Input Voltage
- 24 V
- Input Voltage Limits
- 19.2...30 V
- Input Voltage Type
- DC
- Insulation Between Channels And Bus
- 500 V
- Kit Composition
- STBEHC3020 module || STBXBA3000 base || STBXTS215018 terminal spring clamp connector
- Marking
- CE
- Maximum Counting Frequency
- 40000 Hz
- Maximum Leakage Current
- 0.1 mA at state 0
- Maximum Load Inductance
- 500 mH 4 Hz
- Maximum Voltage Drop
- <3 V at state 1
- Nominal Output Current
- 0.5 A
- Output Voltage
- 24 V
- Output Voltage Limits
- 19.2...30 V
- Output Voltage Type
- DC
- Overvoltage Category
- II
- Product Compatibility
- mounting base STBXBA3000 || power distribution module STBPDT3100/3105
- Protection Type
- overload protection electronic tripping manual or automatic reset || short-circuit protection electronic tripping manual or automatic reset || overload protection current limiter || short-circuit protection current limiter
- Status Led
- 1 LED (Green) EN validation input status (EN) || 1 LED (Green) module status (RDY) || 1 LED (Green) reset input status (RST) || 1 LED per counting input (Green) counting input status (INA, INB) || 1 LED per output (Green) output status (OUT1, OUT2) || 1 LED (Red) module error (FLT)
- Supply
- power distribution module
- [Us] Rated Supply Voltage
- 24 V DC
- Voltage State 0 Guaranteed
- -3...5 V
- Voltage State 1 Guaranteed
- 11...30 V
- Width
- 128.3 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C without derating)
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- FM Class 1 Division 2 || CSA || UL
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Number Of Channels
- 1
- Product Or Component Type
- counter kit
- Range Of Product
- Modicon STB distributed I/O solution
