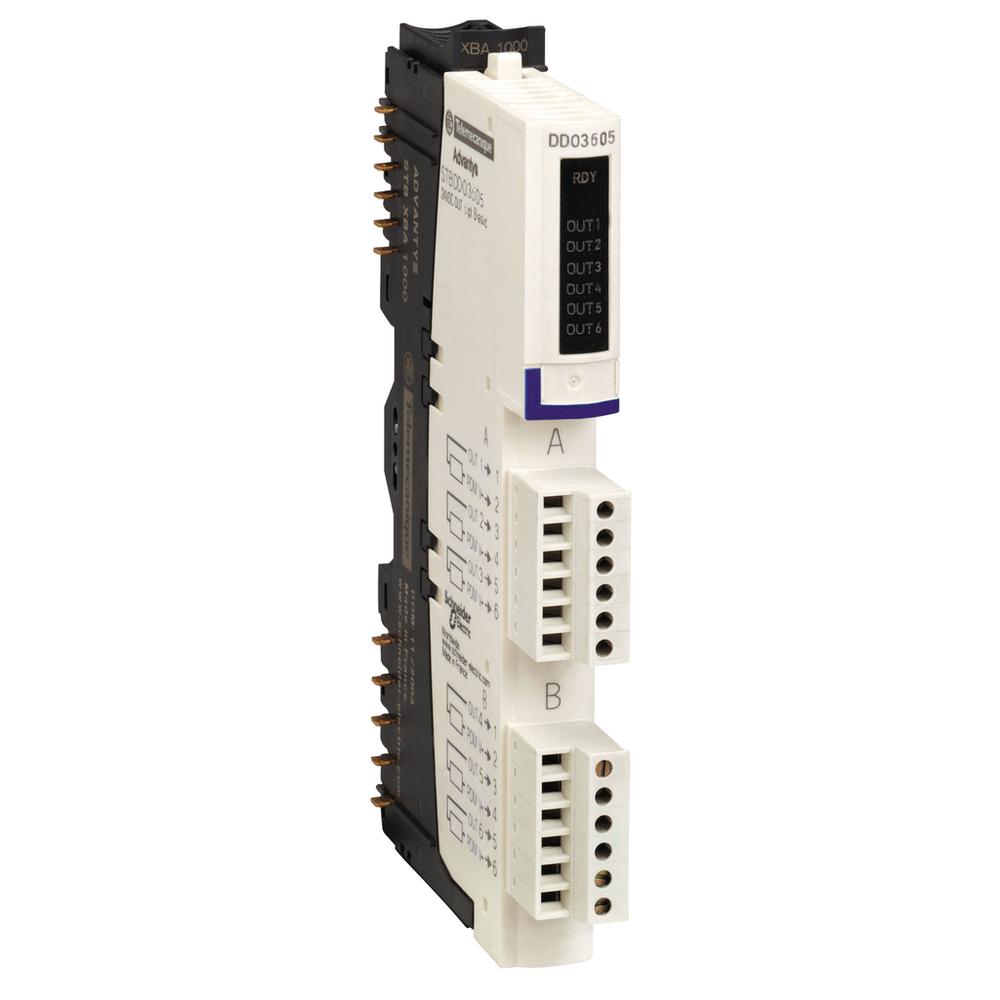

Schneider Electric STBDDO3605K
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
digital output kit, Modicon STB, basic, 24V DC, 6 O
Schneider Electric STBDDO3605K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Maximum Voltage
- 56 V 1.3 ms
- Cold Swapping
- yes
- Current Consumption
- 90 mA 5 V DC logic bus
- Depth
- 70 mm
- Discrete Output Current
- 250 mA
- Discrete Output Logic
- positive
- Height
- 13.9 mm
- Hot Swapping Fallback
- no for basic NIMs
- Insulation Between Channels And Logic Bus
- 1500 V for 1 minute
- Marking
- CE
- Maximum Leakage Current
- 0.4 mA at state 0 30 V
- Maximum Load Capacitance
- 50 µF
- Maximum Load Inductance
- 500 mH 4 Hz
- Net Weight
- 0.114 kg
- Output Voltage
- 19.2...30 V DC
- Overvoltage Category
- II
- Product Compatibility
- I/O base STBXBA1000 || power distribution module STBPDT3100/3105
- Protection Type
- power protection integrated fuse on PDM time lag 5 A || reverse polarity protection || short-circuit protection || thermal overload protection
- Reset
- manual or automatic reset COM fault
- Response Time
- 550 µs off-to-on || 900 µs on-to-off
- Status Led
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (OUT1 to OUT6)
- Supply
- power distribution module
- Surge Current
- 2.5 A 0.5 ms
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 128.3 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 32...140 °F without derating
- 0-60 °C without derating)
- Ambient Air Temperature For Storage
- -40...185 °F without derating
- -40-85 °C without derating
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- UL || CSA || FM Class 1 Division 2
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Standards
- IEC 61131-2
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Output Number
- 6
- Discrete Output Type
- solid state
- Discrete Output Voltage
- 24 V
- Discrete Output Voltage Type
- DC
- Kit Composition
- STBDDO3605 module || STBXTS2100, 6-terminal spring clamp connector || STBXBA1000 base || STBXTS1100, 6-terminal screw type connector
- Product Or Component Type
- basic digital output kit
- Range Of Product
- Modicon STB distributed I/O solution
