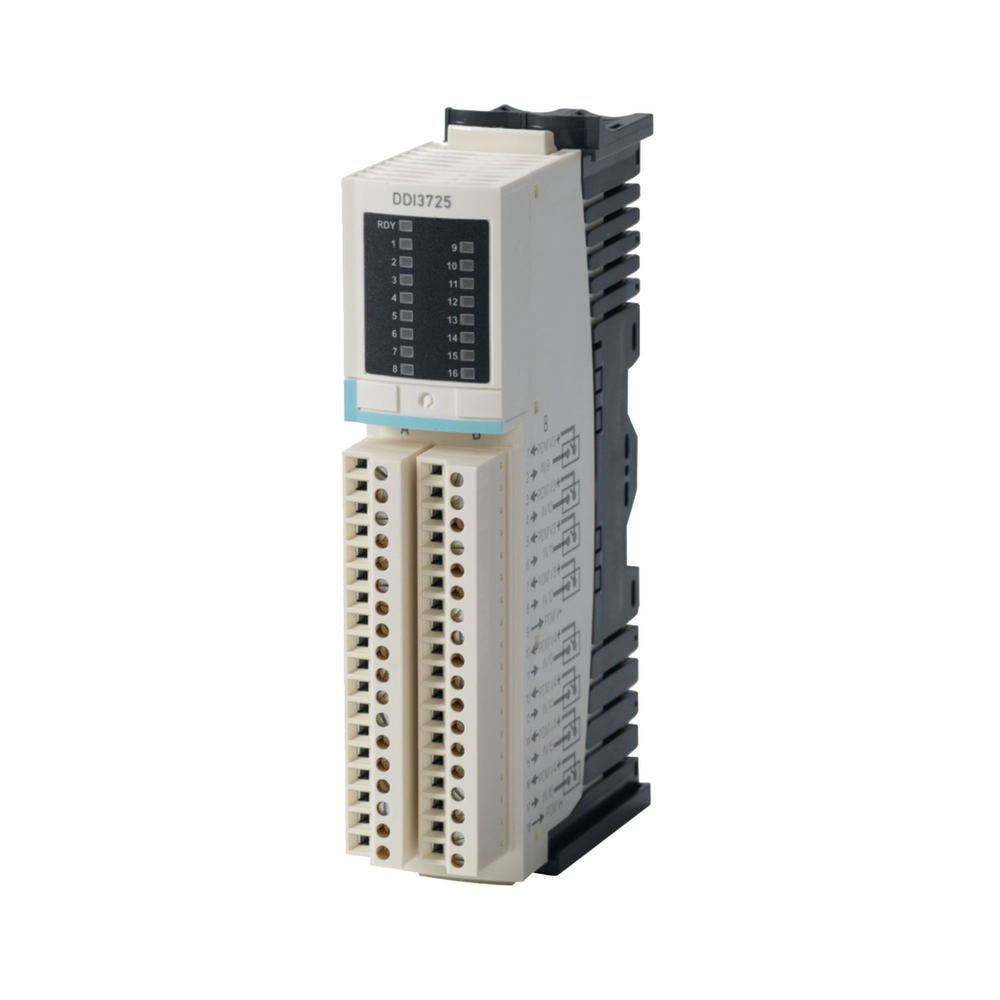

Schneider Electric STBDDI3725KS
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1180, 18-terminal screw type connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.basic digital input kit, Modicon STB, 24V DC, 16I, screw connector
Schneider Electric STBDDI3725KS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cold Swapping
- yes
- Current Consumption
- 100 mA 5 V DC logic bus
- Current State 0 Guaranteed
- <= 1.5 mA
- Current State 1 Guaranteed
- >= 2.5 mA
- Depth
- 65.1 mm
- Discrete Input Current
- 4.5 mA
- Discrete Input Logic
- positive
- Height
- 18.4 mm
- Hot Swapping Fallback
- yes for basic NIMs
- Input Voltage Limits
- 11...30 V at state 1 || -3...5 V at state 0
- Insulation Between Channels And Logic Bus
- 1500 V for 1 minute
- Marking
- CE
- Net Weight
- 0.086 kg
- Overvoltage Category
- II
- Permissible Voltage
- 30 V
- Product Compatibility
- I/O base STBXBA3000 || power distribution module STBPDT3100/3105
- Protection Type
- power protection integrated fuse on PDM time lag 5 A || input protection resistor-limited || reverse polarity protection
- Response Time
- 2 ms off-to-on || 2 ms on-to-off
- Status Led
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (IN1 to IN16)
- Supply
- power distribution module
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 125 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C without derating)
- 32...140 °F without derating
- Ambient Air Temperature For Storage
- -40...185 °F without derating
- -40-85 °C without derating
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- UL || FM Class 1 Division 2 || CSA
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Standards
- IEC 61131-2 type 3
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Input Number
- 16
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Kit Composition
- STBXTS1180, 18-terminal screw type connector || STBDDI3725 module || STBXBA3000 base
- Product Or Component Type
- basic digital input kit
- Range Of Product
- Modicon STB distributed I/O solution
