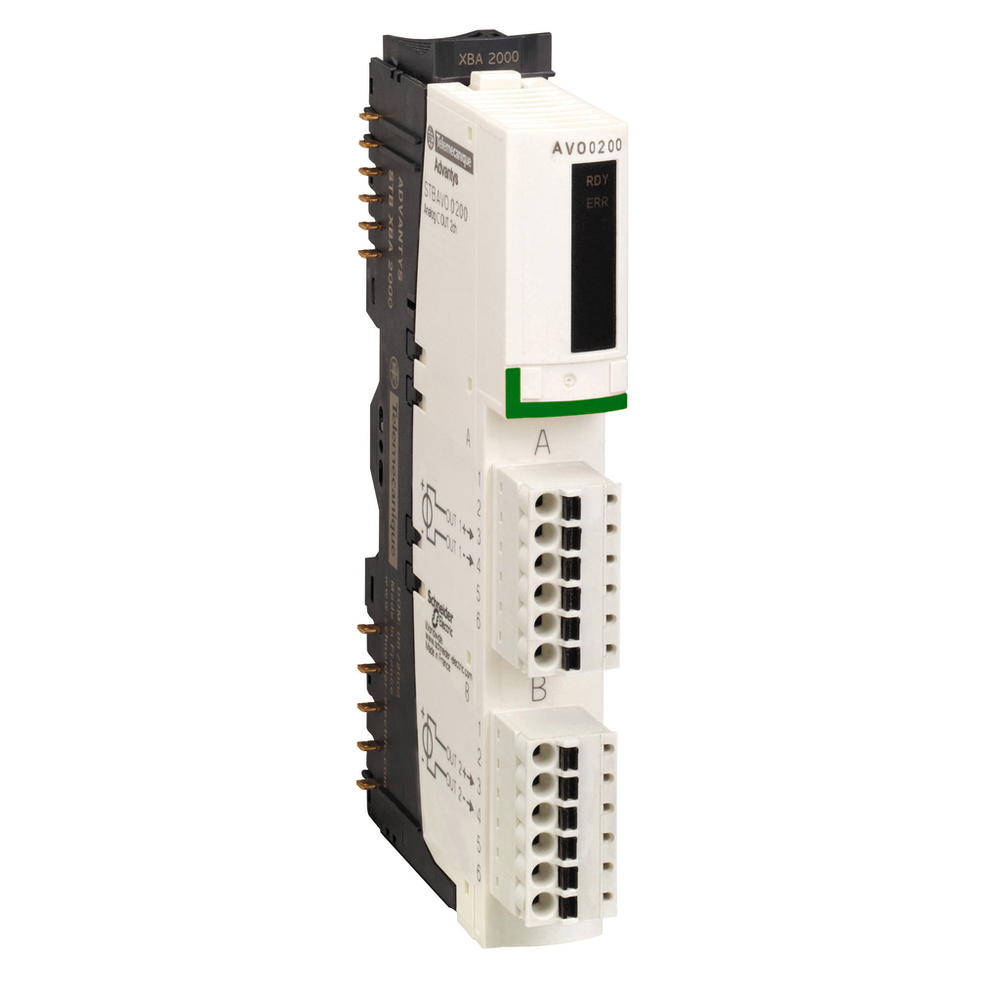

Schneider Electric STBAVO0200K
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue output kit has 2 analogue outputs with 15bit + sign resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 265mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height) and weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with mounting base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector, STBXBA2000 base and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.standard analog output kit, Modicon STB, + or - 10V, 2O, 15 bits with sign
Schneider Electric STBAVO0200K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- +/- 0.3 % of full scale 25 °C
- Addressing Requirement
- 4 output words
- Analogue Output Current
- 150-150 mA
- Cold Swapping
- yes
- Current Consumption
- 265 mA 5 V DC logic bus
- Data Format
- EN 61131-2 || IEC 61131-2
- Depth
- 70 mm
- Differential Linearity
- monotonic
- Fallback Status
- state 0 basic NIMs || user configurable standard NIMs
- Height
- 18.4 mm
- Hot Swapping Fallback
- yes for standard NIMs
- Insulation Between Channels And Actuator Bus
- 200 V
- Integral Linearity
- +/- 0.5 %FS
- Marking
- CE
- Net Weight
- 0.116 kg
- Overvoltage Category
- II
- Product Compatibility
- mounting base STBXBA2000 || power distribution module STBPDT3100/3105
- Protection Type
- short-circuit protection
- Response Time
- 3 ms
- Status Led
- 1 LED (Green) module status (RDY) || 1 LED (Red) module error (ERR)
- Supply
- power distribution module
- Temperature Drift
- +/-0.01 %/°C
- Update Time
- 8 ms
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 128.3 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-75 °C without)
- 13...158 °F without
- Ambient Air Temperature For Storage
- -40-85 °C without
- -40...185 °F without
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- CSA || UL || FM Class 1 Division 2
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Output Number
- 2
- Analogue Output Resolution
- 15 bits + sign
- Analogue Output Type
- voltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
- Kit Composition
- STBAVO0200 module || STBXTS2100, 6-terminal spring clamp connector || STBXBA2000 base || STBXTS1100, 6-terminal screw type connector
- Product Or Component Type
- standard analog output kit
- Range Of Product
- Modicon STB distributed I/O solution
