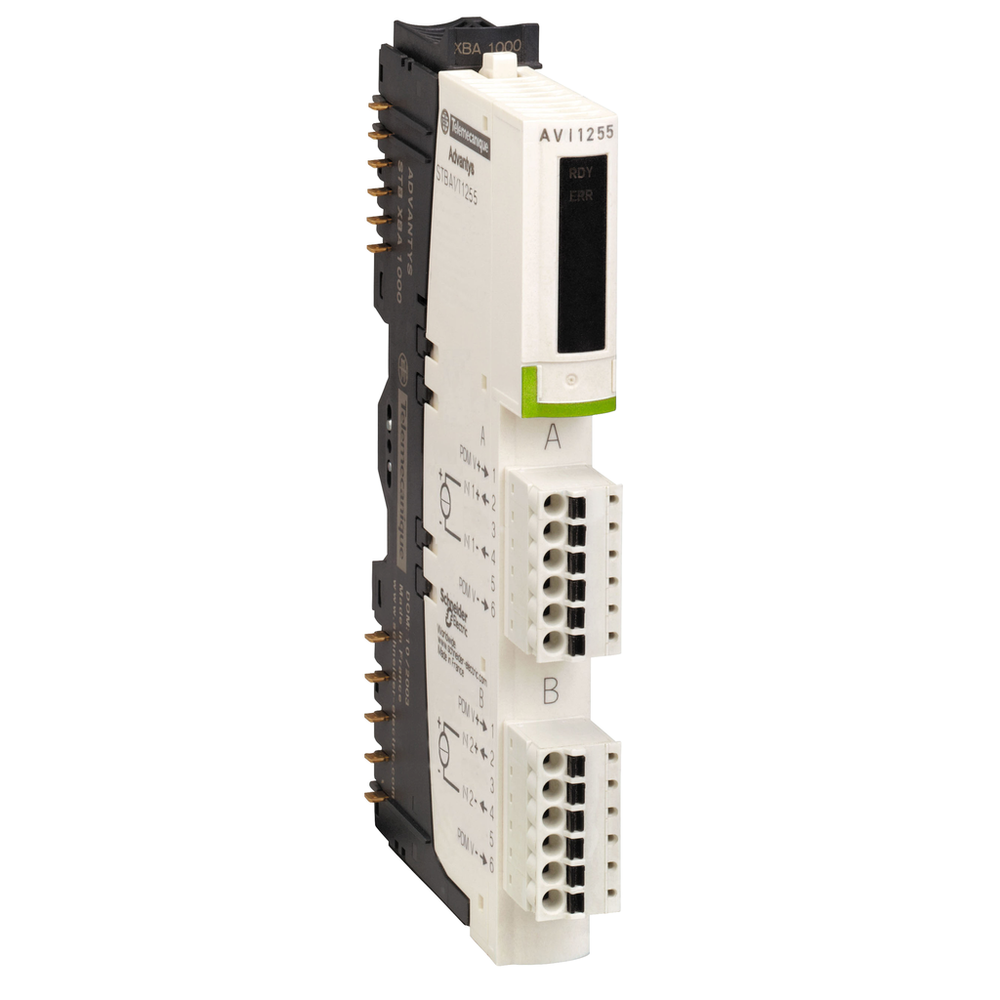

Schneider Electric STBAVI1255K
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (voltage 0V to 10V) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. It is an IP20 rated product. It weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBAVI1255 module, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector and STBXBA1000 base. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.basic analog input kit, Modicon STB, 0 to 10V, 2I, 10 bits
Schneider Electric STBAVI1255K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- +/- 0.5 % of full scale 25 °C
- Absolute Maximum Input
- 50 V DC
- Addressing Requirement
- 2 input words
- Cold Swapping
- yes
- Current Consumption
- 30 mA 5 V DC logic bus
- Data Format
- EN 61131-2 || IEC 61131-2
- Differential Linearity
- monotonic
- Hot Swapping Fallback
- no for basic NIMs
- Input Impedance
- 400 kOhm
- Insulation Between Channels And Logic Bus
- 1500 V for 1 minute
- Insulation Between Channels And Sensor Bus
- 30 V
- Integral Linearity
- +/- 0.2 %FS
- Marking
- CE
- Maximum Source Impedance
- 1 kOhm
- Maximum Supply Current For Sensors
- 100 mA per input channels
- Net Weight
- 0.116 kg
- Overvoltage Category
- II
- Product Compatibility
- mounting base STBXBA1000 || power distribution module STBPDT3100/3105
- Response Time
- 5 ms
- Status Led
- 1 LED (Green) module status (RDY)
- Supply
- power distribution module
- Temperature Drift
- +/-0.01 %/°C
- Update Time
- 10 ms
- [Us] Rated Supply Voltage
- 24 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- 32...140 °F without derating
- Ambient Air Temperature For Storage
- -40...185 °F without derating
- -40-85 °C without derating
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- FM Class 1 Division 2 || ATEX Cat 3G || UL || CSA || C-tick
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Vibration Resistance
- +/-0.35 mm 10-58 Hz || 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 2
- Analogue Input Resolution
- 10 bits
- Analogue Input Type
- voltage 0...10 V
- Kit Composition
- STBAVI1255 module || STBXTS2100, 6-terminal spring clamp connector || STBXTS1100, 6-terminal screw type connector || STBXBA1000 base
- Product Or Component Type
- basic analog input kit
- Range Of Product
- Modicon STB distributed I/O solution
- Type Of Filter
- single low pass input filter 25 Hz
