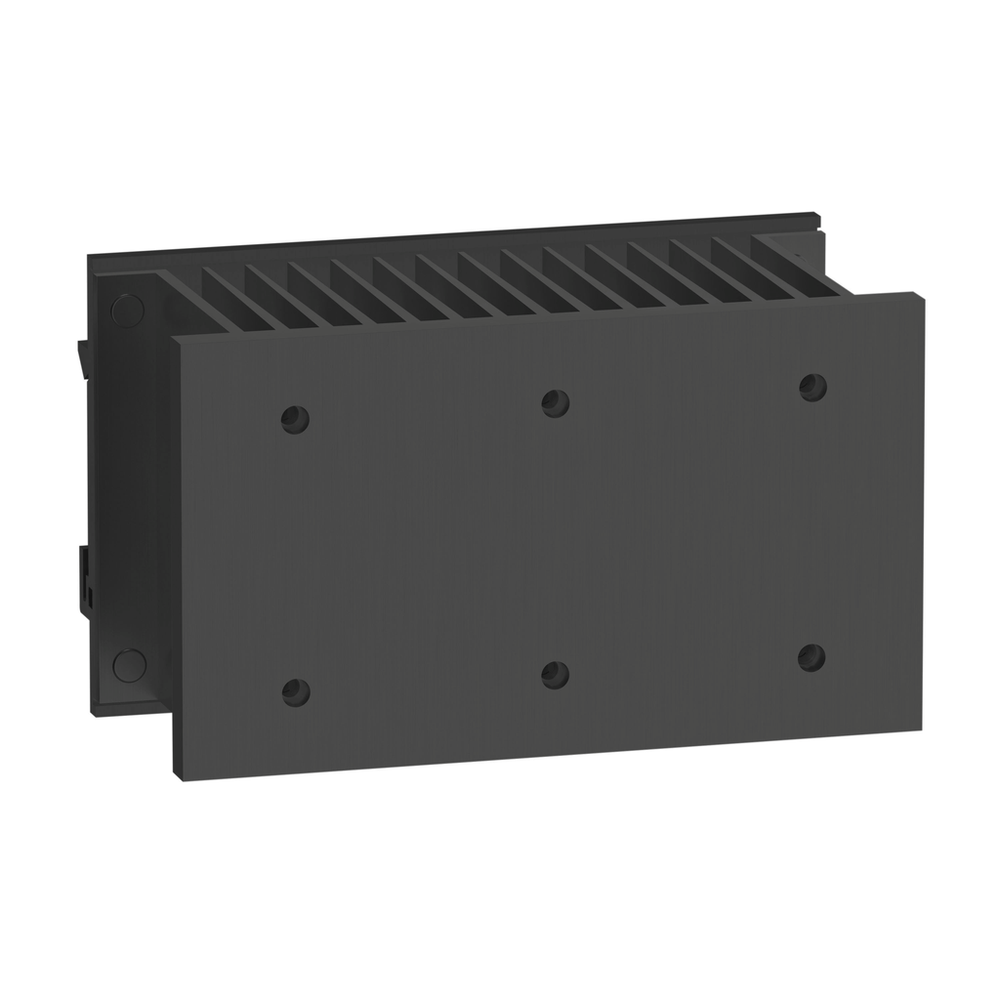

Schneider Electric SSRHD10
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Schneider Electric SSRHD10 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 60.2 mm
- Height
- 132.1 mm
- Material
- aluminium
- Mounting Support
- DIN rail
- Net Weight
- 0.630 kg
- Number Of Mounting Holes
- 6 UNC 8-32
- Product Compatibility
- 1 solid state relay SSR panel
- Sale Per Indivisible Quantity
- 1
- Surface And Useful Surface
- 1425 cm²
- Surface Finish
- black anodized
- Thermal Resitance
- 1 °C/W
- Tightening Torque
- 1.7-2.2 N.m
- Width
- 76.2 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1308009
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Product Or Component Type
- heat sink
- Range Of Product
- Harmony Solid State Relays
