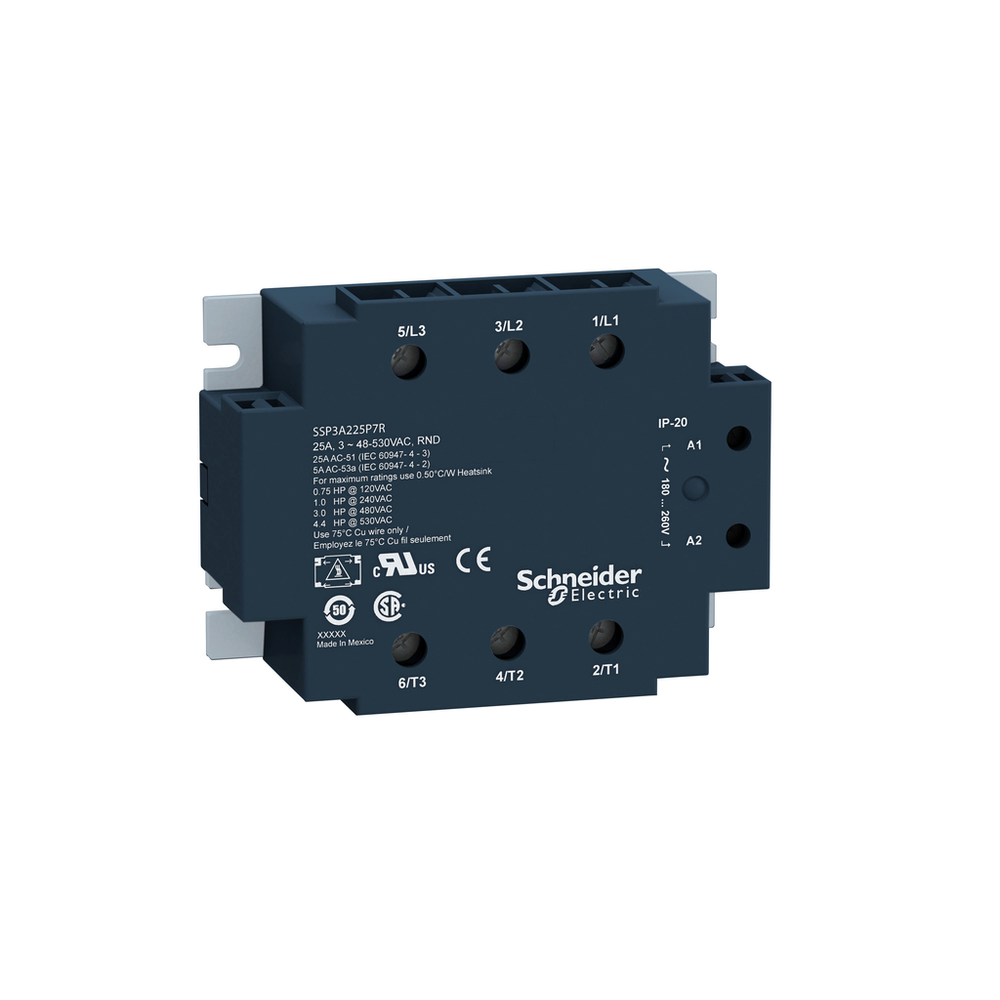

Schneider Electric SSP3A250P7
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SSP panel mount relay is part of the Harmony Solid sate relays range. This three-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 50A, is controlled withA 180V to 280V AC circuit, has a rated load voltage of 48V to 530V AC output. 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0three phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, input 180 to 280V AC, output 48 to 530V AC
Schneider Electric SSP3A250P7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Maximum Voltage
- 1200 V
- Capacitance Unbalance
- 8 pF for input/output
- Connections - Terminals
- screw terminals 1 x 0.2...1 x 2.5 mm², AWG 24...AWG 14) input || screw terminals 1 x 1.5...1 x 10 mm², AWG 16...AWG 8) output
- Control Type
- without test button
- Cos Phi
- 0.5-0.5 (with maximum load)
- Depth
- 35.4 mm
- Device Presentation
- complete product
- Dielectric Strength
- 4 kV AC for input/output || 4 kV AC for input or output to case
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Height
- 79.7 mm
- Input Current Limits
- 7-20 mA
- Insulation Resistance
- >= 1000 MOhm at 500 V DC
- Ip Degree Of Protection
- IP20
- Load Current
- 0.1-50 A
- Local Signalling
- LED, green input
- Maximum Horse Power Rating
- 1.5 hp 40 °C 120 V AC || 3 hp 40 °C 240 V AC || 7.5 hp 40 °C 480 V AC || 8.8 hp 40 °C 530 V AC
- Maximum I²T For Fusing
- 2520 A².s for 10 ms at 50 Hz || 2320 A².s for 8.3 ms at 60 Hz
- Maximum Leakage Current
- 3 mA off-state
- Maximum Switching Voltage
- 10 V AC turn-off
- Maximum Voltage Drop
- <1.35 V on-state
- Minimum Switching Voltage
- 180 V AC turn-on
- Motor Power Kw
- 1.11 kW 40-40 °C 120 V AC || 2.22 kW 40-40 °C 240 V AC || 5.55 kW 40-40 °C 480 V AC || 6.47 kW 40-40 °C 530 V AC
- Net Weight
- 0.24 kg
- Output Voltage
- 48...530 V AC
- Response Time
- 20 ms (turn-on) || 30 ms (turn-off)
- Surge Current
- 715 A 20 ms || 750 A 16.6 ms || 150 A 1 s
- Thermal Resitance
- 0.12 °C/W
- Tightening Torque
- 0.9...1.1 N.m for input || 1.7...2.2 N.m for output
- [Uc] Control Circuit Voltage
- 180...280 V AC
- Width
- 101.3 mm
Environment
- Ambient Air Temperature For Operation
- -40-80 °C
- Ambient Air Temperature For Storage
- -40-125 °C
- Flame Retardance
- V0 conforming to UL 94
- Marking
- CE
- Overvoltage Category
- III
- Pollution Degree
- 2
- Product Certifications
- UL || CSA
- Standards
- IEC 60950-1 || IEC 62314 || IEC 61000
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1505006EN
- Environmental Disclosure
- ENVPEP1505006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- SSP
- Line Rated Current
- 50 A
- Mounting Support
- panel
- Output Switching Mode
- zero voltage switching
- Phase
- 3 phase
- Product Or Component Type
- solid state relay up to 50 A
- Range Of Product
- Harmony Solid State Relays
- Solid State Output Type
- zero voltage switching
