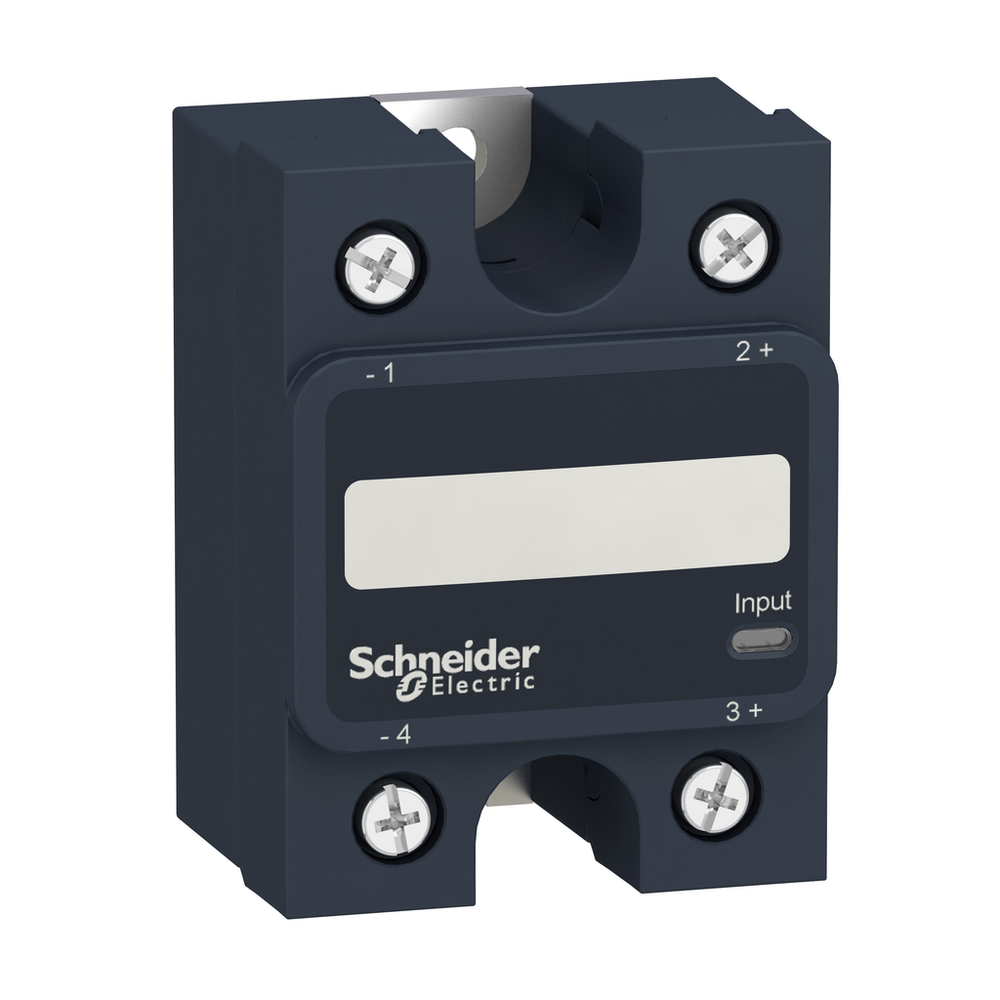

Schneider Electric SSP1D412BD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 12A, is controlled withA 3.5V to 32V DC circuit, has a rated load voltage of 1V to 150V DC output. It also has a test button for easy debugging, testing and commissioning 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, input 3.5 to 32V DC, output 1 to 150V DC
Schneider Electric SSP1D412BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Capacitance Unbalance
- 50 pF for input/output
- Connections - Terminals
- screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
- Device Presentation
- complete product
- Dielectric Strength
- 2.5 kV AC for input/output || 2.5 kV AC for input or output to case
- Input Current Limits
- 10-15 mA
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Ip Degree Of Protection
- IP20
- Load Current
- 0.001-12 A
- Local Signalling
- LED, green input
- Maximum Leakage Current
- 0.3 mA off-state
- Maximum Switching Voltage
- 1 V DC turn-off
- Maximum Voltage Drop
- <2.8 V on-state
- Minimum Switching Voltage
- 3.5 V DC turn-on
- Net Weight
- 89.2 g
- Output Voltage
- 1...150 V DC
- Protection Device Type
- type 1 - 10 A miniature circuit breaker (MCB) B || type 2 - 6 A miniature circuit breaker (MCB) B
- Response Time
- 0.1 ms (turn-on) || 0.1 ms (turn-off)
- Safety Reliability Data
- B10d = 1731395 || MTTFd = 1875.9 years
- Surge Current
- 31 A 10 ms
- Thermal Resitance
- 0.71 °C/W junction to case
- Tightening Torque
- 1.5...1.7 N.m for input || 2...2.2 N.m for output
- [Uc] Control Circuit Voltage
- 3.5...32 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV output to case
Environment
- Ambient Air Temperature For Operation
- -40-80 °C
- Ambient Air Temperature For Storage
- -40-125 °C
- Marking
- CSA || UL || CE || EAC
- Overvoltage Category
- III
- Pollution Degree
- 2
- Product Certifications
- CE || UL || CSA || EAC
- Standards
- IEC 62314 || UL 508 || CSA C22.2 No 14-13 || IEC 60950-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1505006EN
- Environmental Disclosure
- ENVPEP1505006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Short Name
- SSP1
- Line Rated Current
- 12 A
- Mounting Support
- panel
- Output Switching Mode
- DC switching
- Phase
- 1 phase
- Product Or Component Type
- solid state relay up to 20 A
- Range Of Product
- Harmony Solid State Relays
- Solid State Output Type
- DC switching || Mosfet output
