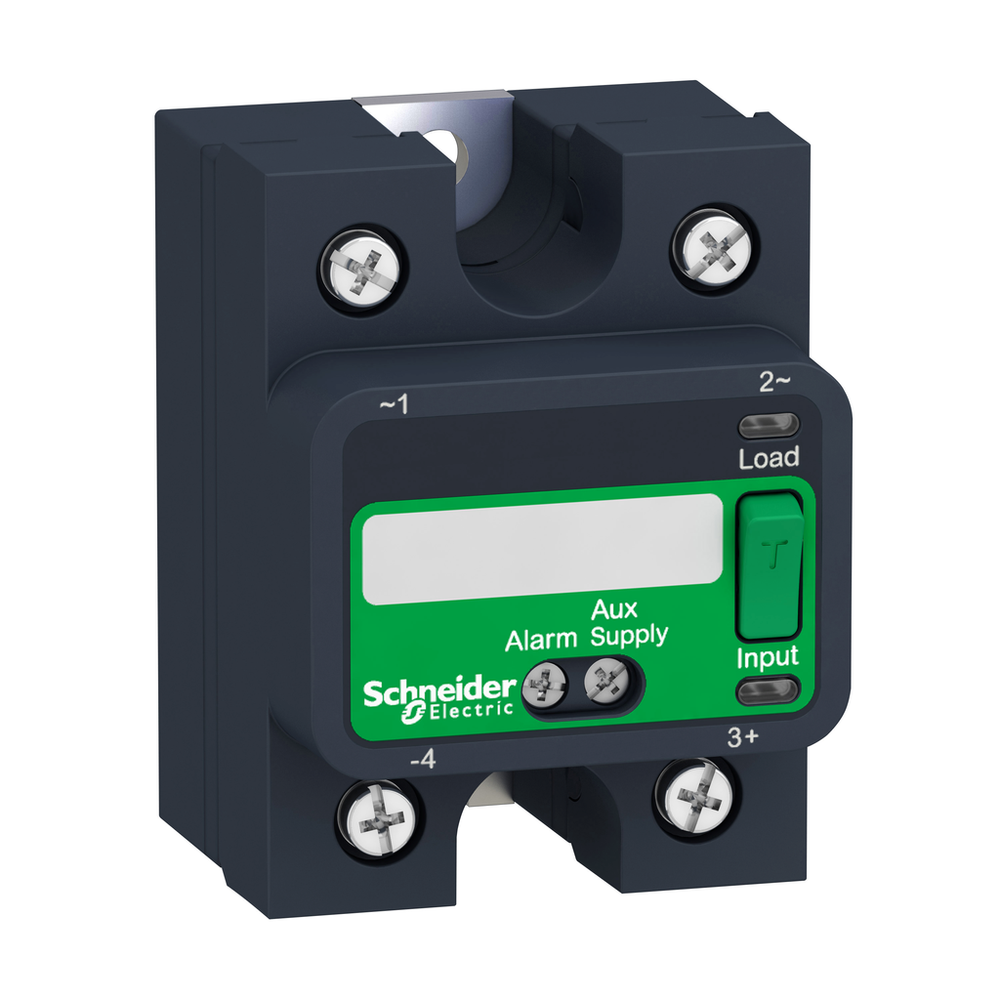

Schneider Electric SSP1A490BDS

Complementary

• Absolute Maximum Voltage
  • 1200 V
• Auxiliary Connection Terminal
  • screw-type connector, 0.5...1.5 mm² AWG 20...AWG 16)slotted Philips
• Capacitance Unbalance
  • 8 pF for input/output
• Connections - Terminals
  • screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
• Cos Phi
  • 0.5-0.5 (with maximum load)
• Device Presentation
  • complete product
• Dielectric Strength
  • 4 kV AC for input/output || 4 kV AC for input or output to case
• Dv/Dt
  • 500 V/µs off-state at maximum voltage
• Electromagnetic Compatibility
  • electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4 || surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5 || surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5
• Input Current Limits
  • 7-12 mA
• Insulation Resistance
  • 1000 MOhm at 500 V DC
• Ip Degree Of Protection
  • IP20
• Load Current
  • 0.15-90 A
• Local Signalling
  • LED, steady, green ON status control input/test button actuated || LED, steady, amber ON status load || LED, flashing, amber control input to energise load || LED, steady, red open-circuit control input || LED, flashing, red load cut-off/short-circuit
• Maximum Horse Power Rating
  • 1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC
• Maximum I²T For Fusing
  • 5976 A².s for 8.33 ms at 60 Hz || 6560 A².s for 10 ms at 50 Hz
• Maximum Leakage Current
  • 1 mA off-state
• Maximum Output Current
  • 30 mA 32 V DC
• Maximum Switching Voltage
  • 1 V DC turn-off
• Maximum Voltage Drop
  • <1.15 V on-state
• Minimum Load
  • 150 mA
• Minimum Switching Voltage
  • 4 V DC turn-on
• Net Weight
  • 97.1 g
• Output Voltage
  • 48...660 V AC
• Protection Device Type
  • type 1 - 63 A miniature circuit breaker (MCB) B || type 2 - 50 A miniature circuit breaker (MCB) B
• Response Time
  • 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
• Safety Reliability Data
  • MTTFd = 1875.9 years || B10d = 1731395
• Surge Current
  • 1200 A 16.6 ms
• Thermal Resitance
  • 0.27 °C/W junction to case
• Tightening Torque
  • 1.5...1.7 N.m for input || 2...2.2 N.m for output || 17.7...19.47 lb.in for output || 13.27...15.04 lb.in for input || 0.5...0.6 N.m for auxillary terminal || 4.4...5.3 lb.in for auxillary terminal
• [Uc] Control Circuit Voltage
  • 4...32 V AC
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kV output to case || 6 kV input to output

Environment

• Ambient Air Temperature For Operation
  • -40-80 °C
• Ambient Air Temperature For Storage
  • -40-125 °C
• Marking
  • UL || CE || EAC || CSA
• Overvoltage Category
  • III
• Pollution Degree
  • 2
• Product Certifications
  • CE || UL || EAC || CSA
• Standards
  • CSA C22.2 No 14-13 || IEC 60950-1 || UL 508 || IEC 62314

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1505006EN
• Environmental Disclosure
  • ENVPEP1505006EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Device Short Name
  • SSP1
• Line Rated Current
  • 90 A
• Mounting Support
  • panel
• Output Switching Mode
  • zero voltage switching
• Phase
  • 1 phase
• Product Or Component Type
  • solid state relay up to 125 A
• Provided Equipment
  • thermal pad
• Range Of Product
  • Harmony Solid State Relays
• Solid State Output Type
  • SCR output || zero voltage switching
