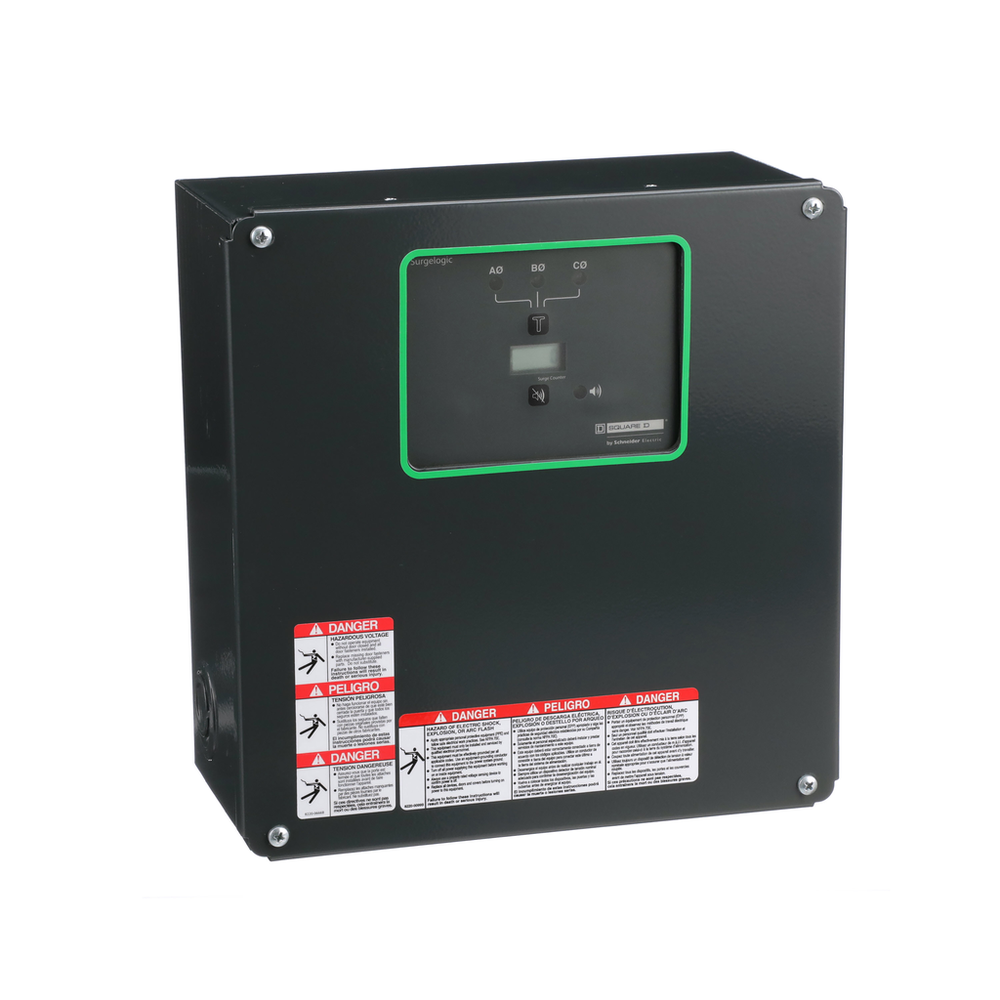

Schneider Electric SSP02EMA24
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.Surge protection device, Surgelogic, 240kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 1
Schneider Electric SSP02EMA24 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Length
- 483 mm
- Connections - Terminals
- lugs AWG 10...AWG 2 copper 4 N.m
- Depth
- 135 mm
- Device Mounting
- surface
- Height
- 282 mm
- Local Signalling
- status LED green per phase normal operation || status LED red per phase fault
- Nominal Discharge Current
- 20 kA
- Phase
- 3 phase
- Provided Equipment
- alarm enable/disable switch || surge counter || dry contacts
- Short-Circuit Protection
- 200 kA
- Surge Current
- 240 kA
- [Uc] Maximum Continuous Operating Voltage
- 150 V
- [Ue] Rated Operational Voltage
- 208Y/120 V AC
- Width
- 253.5 mm
- Wiring Configuration
- 4-wire
Environment
- Ambient Air Temperature For Operation
- 65-65 °C
- Enclosure Material
- Gray painted sheet steel
- Nema Degree Of Protection
- NEMA 1
- Standards
- CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Device Short Name
- EMA
- Product Or Component Type
- surge protection device
- Range Of Product
- Surgelogic
