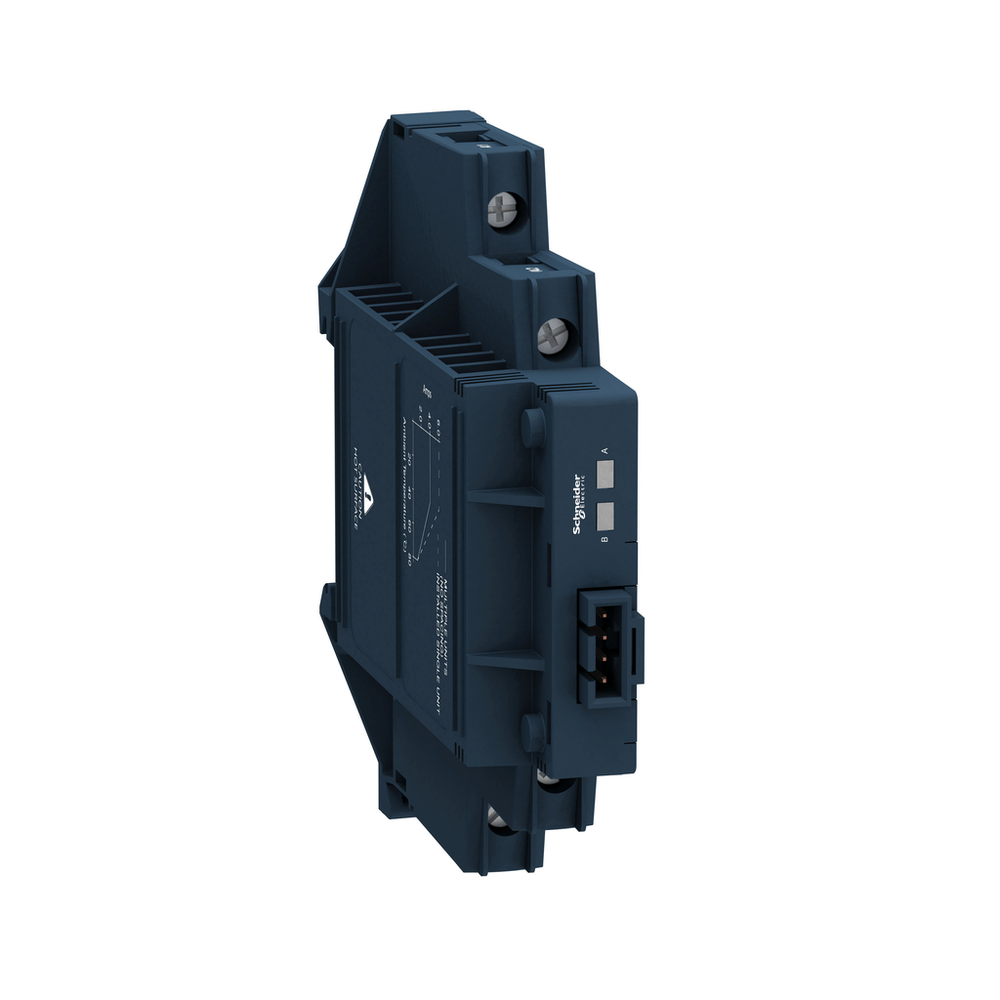

Schneider Electric SSM2A16BDR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony SSM solid state modular DIN rail dual channel relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of each of its inputs. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. It also has a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, random switching, input 4 to 32V DC, output 24 to 280V AC
Schneider Electric SSM2A16BDR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Maximum Voltage
- 600 V
- Capacitance Unbalance
- 10 pF for input/output
- Connections - Terminals
- screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
- Cos Phi
- 0.5-0.5 (with maximum load)
- Depth
- 84.4 mm
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Height
- 90.3 mm
- Input Current Limits
- 14-16.87 mA
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Line Rated Current
- 6 A
- Load Current
- 0.15-6 A
- Local Signalling
- for input status LED (green)
- Maximum Horse Power Rating
- 0.16 hp 40 °C 240 V AC
- Maximum I²T For Fusing
- 2560 A².s for 10 ms at 50 Hz || 2330 A².s for 8.33 ms at 60 Hz
- Maximum Leakage Current
- 0.1 mA off-state
- Maximum Switching Voltage
- 1 V DC turn-off
- Maximum Voltage Drop
- <1.3 V on-state
- Minimum Switching Voltage
- 4 V DC turn-on
- Mounting Support
- symmetrical DIN rail
- Net Weight
- 0.09 kg
- Output Voltage
- 24...280 V AC
- Overvoltage Category
- III
- Response Time
- 0.5 cycle (turn-off) || 0.1 ms (turn-on)
- Solid State Output Type
- SCR output || random voltage switching
- Surge Current
- 715 A 16.6 ms || 750 A 20 ms
- Tightening Torque
- 0.5...0.8 N.m for input || 0.5...0.8 N.m for output
- [Uc] Control Circuit Voltage
- 4...32 V DC
- Width
- 18 mm
Environment
- Ambient Air Temperature For Operation
- -30-80 °C
- Ambient Air Temperature For Storage
- -30-100 °C
- Dielectric Strength
- 2.5 kV AC for input/output || 2.5 kV AC for input or output to case
- Flame Retardance
- V0 conforming to UL 94
- Ip Degree Of Protection
- IP20
- Marking
- CE
- Pollution Degree
- 2
- Product Certifications
- UL || CSA
- Standards
- IEC 62314 || IEC 60950-1 || IEC 61000
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1307069EN
- Environmental Disclosure
- ENVPEP1307069EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- SSM
- Number Of Channels
- 2
- Output Switching Mode
- random voltage switching
- Phase
- 1 phase
- Product Or Component Type
- solid state relay up to 10 A
- Range Of Product
- Harmony Solid State Relays
