Description

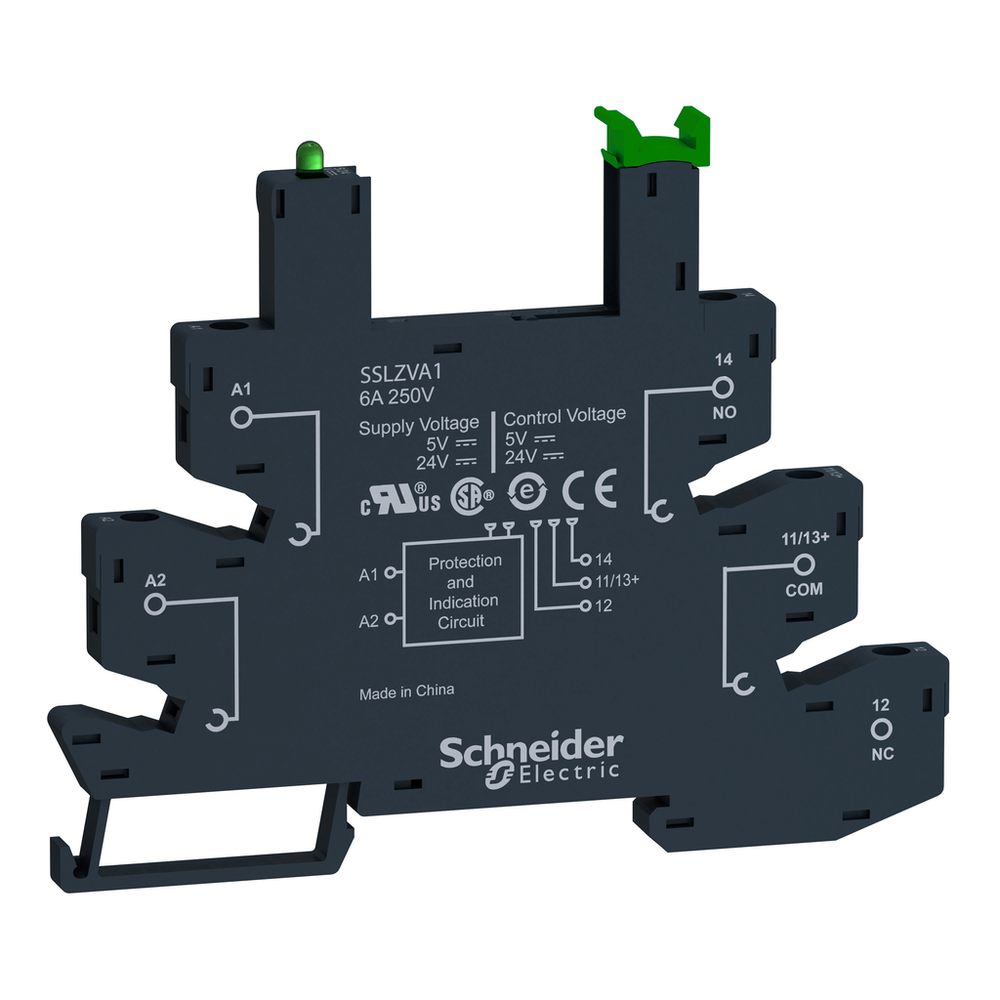

This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0Socket equipped with LED and protection circuit, Harmony, for SSL relays, screw connectors, 5 24V DC
Schneider Electric SSLZVA1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end || screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
- Contact Terminal Arrangement
- separate
- Depth
- 78.6 mm
- Fixing Mode
- clip-on 35 mm DIN rail)
- Height
- 101 mm
- [Ith] Conventional Free Air Thermal Current
- 6 A
- Local Signalling
- for input status LED (green)
- Net Weight
- 0.0285 kg
- Product Compatibility
- solid state relay SSL NO 24 V DC || solid state relay SSL NO 5 V DC
- Shape Of Pin
- flat
- Switching Voltage
- 5 V DC || 24 V DC
- Tightening Torque
- < 0.5 N.m M2.5
- [Ue] Rated Operational Voltage
- < 250 V DC
- Width
- 6.2 mm
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 2500 V
- Flame Retardance
- V0 conforming to UL 94
- Ip Degree Of Protection
- IP20
- Marking
- CE
- Product Certifications
- CSA C22-2 No 14 || UL 508
- Standards
- IEC 61984
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1405004EN
- Environmental Disclosure
- ENVPEP1405004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Short Name
- SSLZ
- Product Or Component Type
- socket for SSL1
- Range Of Product
- Harmony Solid State Relays
- Sale Per Indivisible Quantity
- 10
