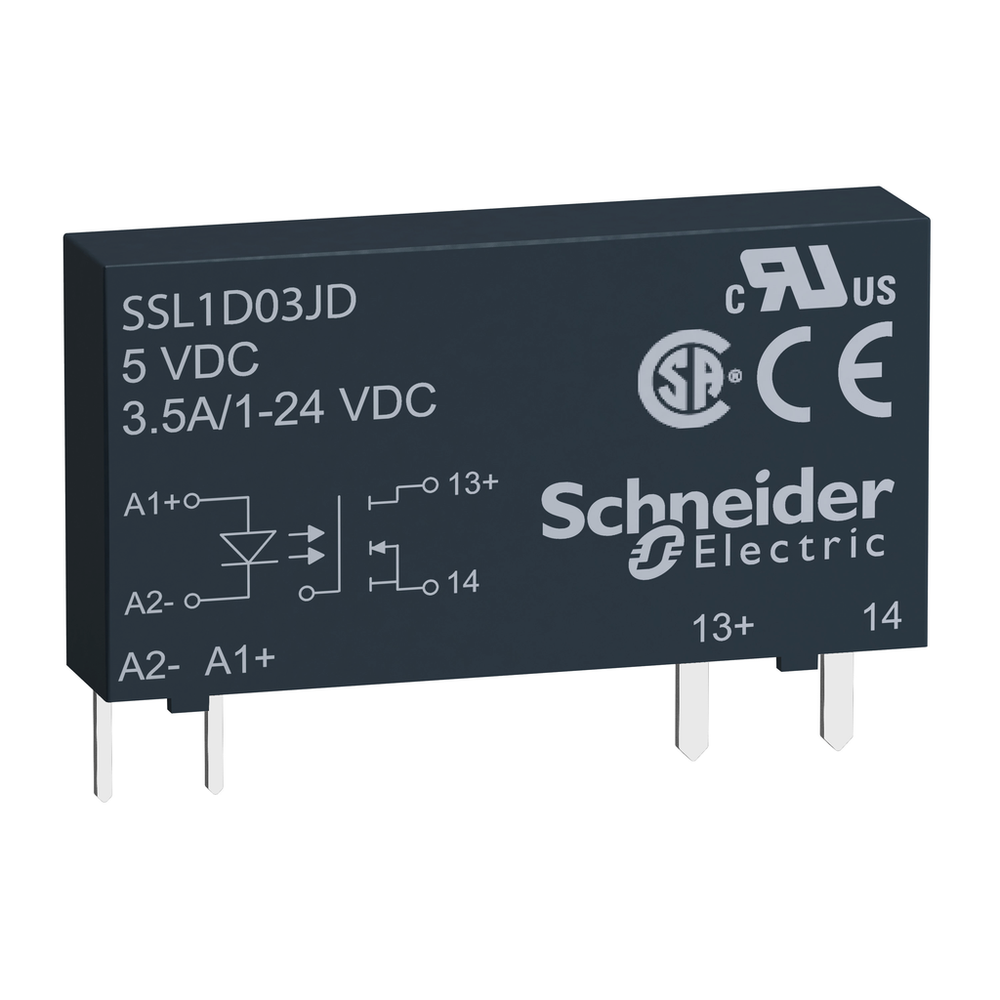

Schneider Electric SSL1D03JD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 3 to 12V DC, output 1 to 24V DC
Schneider Electric SSL1D03JD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Maximum Voltage
- 30 V DC
- Capacitance Unbalance
- 1.5 pF input/output
- Depth
- 15 mm
- Height
- 28 mm
- Input Current Limits
- 10-10 mA
- Input Impedance
- 500 Ohm
- Line Rated Current
- 3.5 A
- Load Current
- 0.001-3.5 A
- Maximum Leakage Current
- 0.001 mA off-state
- Maximum Operating Frequency
- 500 Hz
- Maximum Switching Voltage
- 1 V DC turn-off
- Maximum Voltage Drop
- <0.5 V on-state
- Minimum Switching Voltage
- 3 V DC turn-on
- Mounting Support
- socket
- Net Weight
- 0.0041 kg
- Output Voltage
- 1...24 V DC
- Overvoltage Category
- III
- Response Time
- 0.12 ms (turn-on) || 0.1 ms (turn-off)
- Solid State Output Type
- Mosfet output || DC switching
- Surge Current
- 9 A 10 ms
- [Uc] Control Circuit Voltage
- 3...12 V DC
- Width
- 5 mm
Environment
- Ambient Air Temperature For Operation
- -20-80 °C
- Ambient Air Temperature For Storage
- -20-85 °C
- Dielectric Strength
- 2500 V for input/output
- Flame Retardance
- V0 conforming to UL 94
- Marking
- CE
- Pollution Degree
- 2
- Product Certifications
- UL || CSA
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1405004EN
- Environmental Disclosure
- ENVPEP1405004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- SSL
- Output Switching Mode
- DC switching
- Phase
- 1 phase
- Product Or Component Type
- solid state relay up to 10 A
- Range Of Product
- Harmony Solid State Relays
