Schneider Electric SSL1A12BDPR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

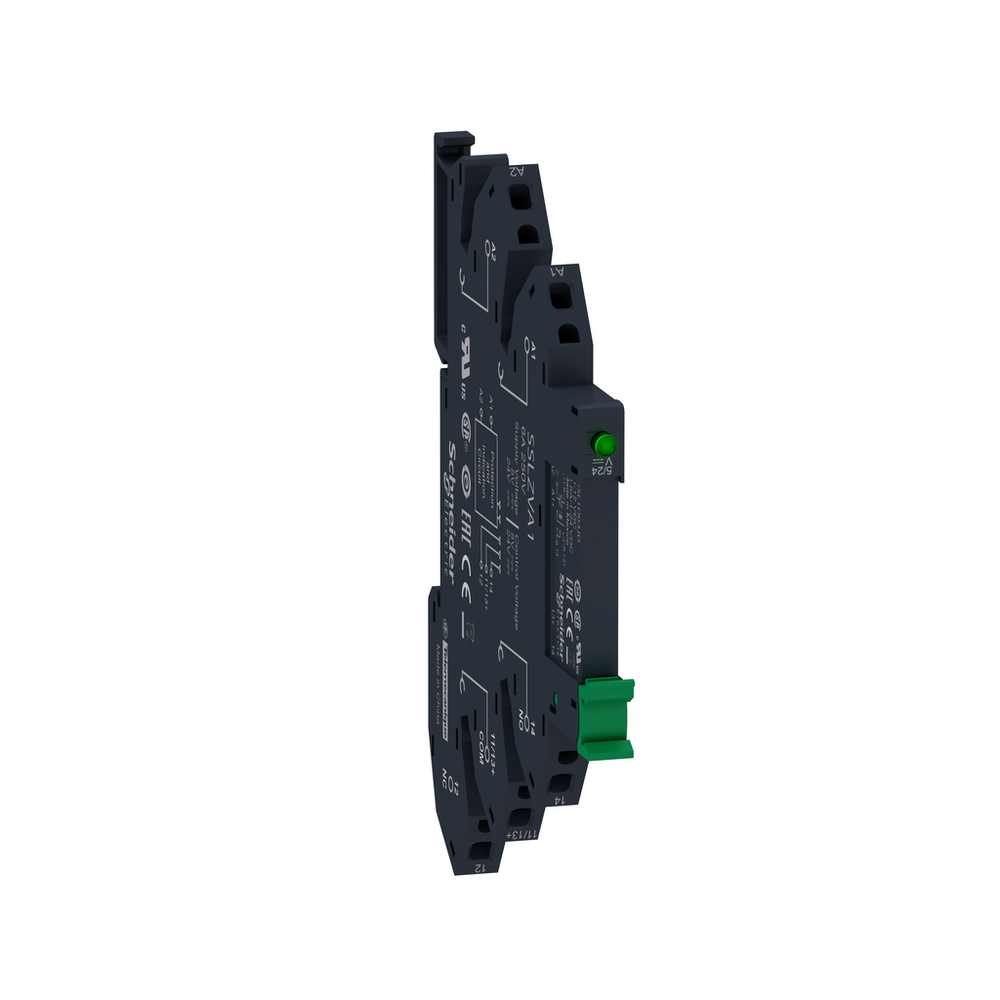

This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A zero voltage switching slim relay with 16Vdc to 30Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. This is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.pre-assembled relay, Harmony Solid State Relays, 2A, zeroVoltage switching, spring sockets, input 16...30V DC, output 24...250V AC
Schneider Electric SSL1A12BDPR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Maximum Voltage
- 600 V AC
- Capacitance Unbalance
- 1.5 pF input/output
- Connections - Terminals
- flexible cable with cable end, 0.2...1.5 mm² AWG 24...AWG 16) || solid cable with cable end, 0.2...1.5 mm² AWG 24...AWG 16)
- Depth
- 79.5 mm
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Height
- 104.6 mm
- Input Impedance
- 3.43 kOhm
- Line Rated Current
- 2 A
- Load Current
- 0.07-2 A
- Maximum I²T For Fusing
- 285 A².s for 10 ms at 50 Hz || 260 A².s for 8.3 ms at 60 Hz
- Maximum Leakage Current
- 4 mA off-state
- Maximum Switching Voltage
- 5 V DC turn-off
- Maximum Voltage Drop
- <1.1 V on-state
- Minimum Switching Voltage
- 16 V DC turn-on
- Mounting Support
- spring socket
- Net Weight
- 0.0285 kg
- Overvoltage Category
- III
- Response Time
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- Solid State Output Type
- zero voltage switching || SCR output
- Surge Current
- 120 A 16.6 ms || 115 A 20 ms
- Tightening Torque
- 10...40 N.m
- [Uc] Control Circuit Voltage
- 16...30 V DC
- Width
- 6.2 mm
Contractual warranty
- Warranty
- 18 Months
Environment
- Ambient Air Temperature For Operation
- -20-70 °C
- Ambient Air Temperature For Storage
- -20-85 °C
- Dielectric Strength
- 2500 V for input/output
- Flame Retardance
- V0 conforming to UL 94
- Ip Degree Of Protection
- IP20
- Marking
- cURus || CSA || CE || EAC
- Pollution Degree
- 2
- Product Certifications
- UL || CSA || CE || UL 508 || CSA22.2 No. 14-10 || GOST
- Standards
- IEC 60950-1 || IEC 61000 || IEC 62314 || IEC 61984 || EN 61984
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1405004EN
- Environmental Disclosure
- ENVPEP1405004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- SSL
- Output Switching Mode
- zero voltage switching
- Phase
- 1 phase
- Product Or Component Type
- solid state relay up to 10 A
- Range Of Product
- Harmony Solid State Relays
