Schneider Electric SSD1A335BDC2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

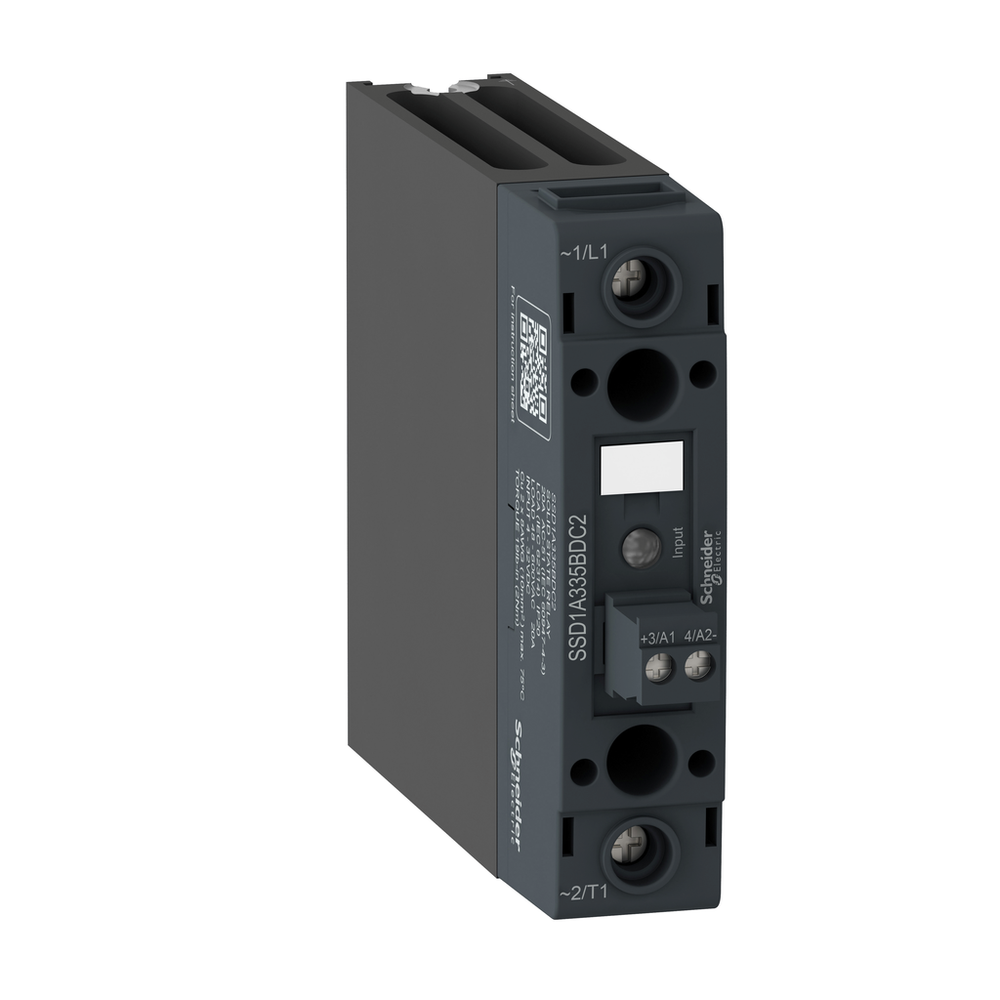

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 35A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.301Kg and its dimensions are, 22.5mm wide, 133.8mm deep, 91.9mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.DIN rail mount relay, Harmony Solid State Relays, 35A, zeroVoltage switching, contactor configuration, input 4...32V DC, output 48...600V AC
Schneider Electric SSD1A335BDC2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Maximum Voltage
- 1200 V
- Connections - Terminals
- plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input || telescopic screw, clamping connection capacity:0.75...10 mm², AWG 20...AWG 8 for output
- Contact Form
- Form 5 semiconductor output DOL contactor
- Coordination Type
- type 1 || type 2
- Depth
- 133.8 mm
- Device Presentation
- complete product
- Dielectric Strength
- 4 kV AC for input/output circuit || 4 kV AC for input or output to case
- Dv/Dt
- 500 V/µs off-state at maximum rated voltage
- Electromagnetic Compatibility
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6 || electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4 || radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3 || surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5 || surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5 || radiated emission environment B for DC input supply conforming to IEC 60947-4-3 || conducted emission environment B for DC input supply conforming to IEC 60947-4-3 || immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
- Height
- 91.9 mm
- Input Current Limits
- 10-15 mA
- Inrush Current
- 1350 A at 60 Hz
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Load Current
- 0.15-35 A
- Local Signalling
- for control voltage LED (green)
- Maximum I²T For Fusing
- 8320 A².s for 10 ms || 7593 A².s for 8.33 ms
- Maximum Leakage Current
- 1 mA off-state
- Maximum Switching Voltage
- 1 V DC turn-off
- Maximum Voltage Drop
- <1.15 V on-state
- Minimum Switching Voltage
- 4 V DC turn-on
- Motor Power Kw
- 1.5 kW/2 hp at 120 V AC || 3.73 kW/5 hp at 240 V AC || 7.46 kW/10 hp at 480 V AC
- Net Weight
- 0.301 kg
- Network Frequency
- 47...440 Hz
- Output Voltage
- 48...600 V AC
- Overvoltage Category
- III
- Power Factor
- 0.5 with maximum load
- Rated Duty
- uninterrupted
- Response Time
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- Solid State Output Type
- zero voltage switching
- Tightening Torque
- 0.5 N.m for control input || 5 lb.in for control input || 2...2.2 N.m for load output || 18...20 lb.in for load output
- [Uc] Control Circuit Voltage
- 4...32 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV for input/output circuit || 6 kV for input or output to case
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -40-80 °C
- Ambient Air Temperature For Storage
- -40-100 °C
- Flame Retardance
- V-0 conforming to UL 94
- Ip Degree Of Protection
- IP20
- Pollution Degree
- 2
- Shock Resistance
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Standards
- IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508
- Vibration Resistance
- 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1508007EN
- Environmental Disclosure
- ENVPEP1508007EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- SSD1
- Line Rated Current
- 35 A
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Number Of Channels
- 1
- Output Switching Mode
- zero voltage switching
- Phase
- 1 phase
- Product Configuration Type
- contactor configuration with pluggable screw input
- Product Or Component Type
- solid state relay up to 40 A
- Range Of Product
- Harmony Solid State Relays
