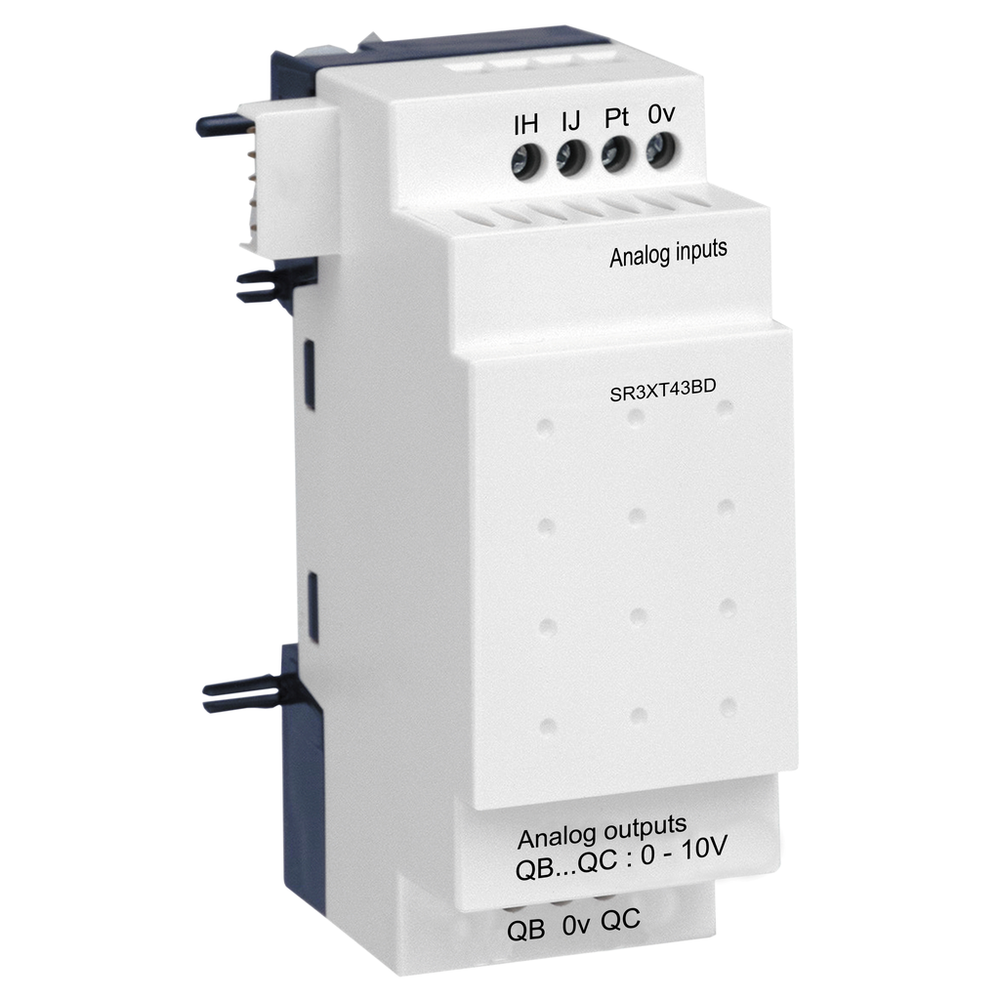

Schneider Electric SR3XT43BD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Schneider Electric Zelio Logic SR3 Analog I/O Extension Module Smart Relays uses a supply voltage of 24 volts direct current, has 4 inputs / outputs contact with screw-clamp terminals. This Analog I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. This product meets EN/IEC 61000-4-12, EN/IEC 61000-4-5, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 60068-2-27 Ea standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.analogue IO extension module, Zelio Logic SR2 SR3, 4 IO, 24V DC
Schneider Electric SR3XT43BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Number
- 2
- Analogue Input Range
- 0...10 V || 0...20 mA || -25...125 °C
- Analogue Input Resolution
- 10 bits on the input range
- Analogue Input Type
- common mode
- Analogue Output Number
- 2
- Analogue Output Range
- 0...10 V
- Analogue Output Resolution
- 10 bits on the output range
- Connections - Terminals
- screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) semi-solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) solid || screw terminals, 2 x 0.25...2 x 1.5 mm² AWG 23...AWG 16) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
- Conversion Error
- +/- 1 % of the full scale value 0...10 V 25 °C)analogue output || +/- 1 % of the full scale value 0...10 V 55 °C)analogue output || +/- 1 % 0...10 V 25 °C)analogue input circuit || +/- 1 % 0...10 V 55 °C)analogue input circuit || +/- 1 % 0...20 mA 25 °C)analogue input circuit || +/- 1 % 0...20 mA 55 °C)analogue input circuit || +/- 1.5 °C - 25...125 °C 25 °C)analogue input circuit || +/- 1.5 °C - 25...125 °C 55 °C)analogue input circuit
- Conversion Time
- smart relay cycle time analogue input circuit || smart relay cycle time analogue output
- [Imp] Maximum Permanent Current
- 30 mA analogue input circuit
- Input Impedance
- 18 kOhm 0...10 V analogue input circuit || 247 Ohm 0...20 mA analogue input circuit
- Load Type
- resistive analogue output
- Lsb Value
- 0.15 °C, - 25...125 °C analogue input circuit || 20 µA, 0...20 mA analogue input circuit || 9.8 mV, 0...10 V analogue input circuit || 9.8 mV, 0...10 V analogue output
- Maximum Load Current
- 10 mA analogue output
- Maximum Permissible Voltage
- 30 V analogue input circuit
- Net Weight
- 0.11 kg
- Operating Distance
- 10 m with screened cable analogue input circuit || 10 m with screened cable analogue output
- Repeat Accuracy
- < +/- 0.3 °C - 25...125 °C 25 °C analogue input circuit || <= +/- 1 % 0...10 V 25 °C analogue input circuit || <= +/- 1 % 0...10 V 55 °C analogue output || <= +/- 1 % 0...20 mA 25 °C analogue input circuit
- Reverse Polarity Protection
- analogue input circuit with
- Short-Circuit Protection
- with analogue output
- Temperature Probe Type
- Pt 100, 3-wire IEC 751
- Tightening Torque
- 0.5 N.m
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-40 °C IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
- Ambient Air Temperature For Storage
- -40-70 °C
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Maximum Altitude Transport
- 3048 m
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2 EN/IEC 61131-2
- Product Certifications
- GOST || UL || C-tick || CSA
- Relative Humidity
- 95-95 % without condensation or dripping water
- Standards
- EN/IEC 61000-4-12 || EN/IEC 61000-4-5 || EN/IEC 61000-4-3 || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-6 level 3 || EN/IEC 61000-4-2 level 3 || EN/IEC 60068-2-6 Fc || EN/IEC 61000-4-11 || EN/IEC 60068-2-27 Ea
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2011013EN
- Environmental Disclosure
- ENVPEP2011013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- analogue I/O extension module
- Range Of Product
- Zelio Logic
