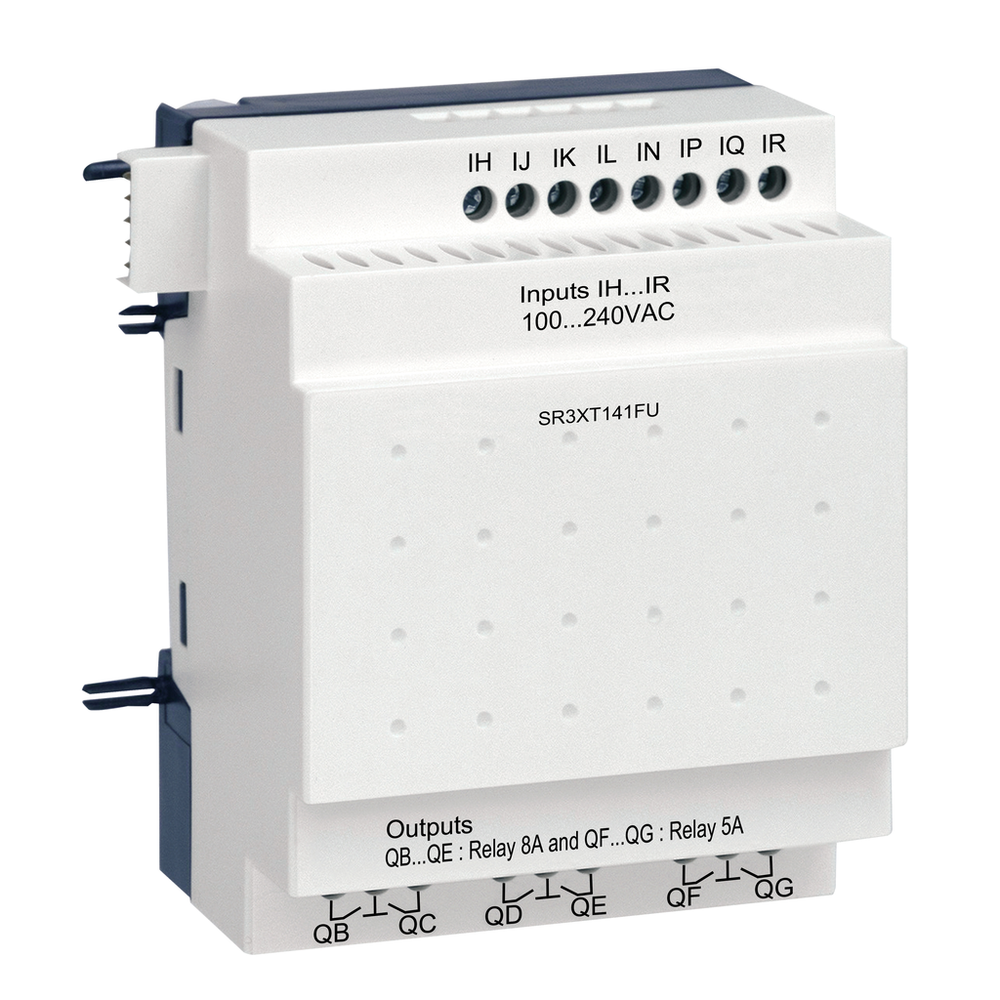

Schneider Electric SR3XT141FU

Complementary

• Backup Time
  • 10 years 25 °C
• Checks
  • program memory on each power up
• Clock Drift
  • 12 min/year 0-55 °C
• Connections - Terminals
  • screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
• Contacts Type And Composition
  • NO relay output
• Current State 0 Guaranteed
  • <= 0.5 mA discrete input)
• Current State 1 Guaranteed
  • >= 0.17 mA discrete input)
• Cycle Time
  • 6-90 ms
• Discrete Input Current
  • 0.6 mA
• Discrete Input Frequency
  • 57...63 Hz || 47...53 Hz
• Discrete Input Number
  • 8
• Discrete Input Voltage
  • 100...240 V AC
• Electrical Durability
  • AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1
• Input Impedance
  • 350 kOhm discrete input
• Mechanical Durability
  • 10000000 cycles relay output
• Net Weight
  • 0.22 kg
• Number Of Outputs
  • 6 relay
• Number Or Control Scheme Lines
  • 120-120 ladder
• Operating Rate In Hz
  • 0.1 Hz at Ie)relay output || 10 Hz no load)relay output
• Output Thermal Current
  • 5 A for 2 outputs relay output || 8 A for 4 outputs relay output
• Output Voltage Limits
  • 5...30 V DC relay output) || 24...250 V AC
• Overvoltage Category
  • III EN/IEC 60664-1
• Response Time
  • 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
• Reverse Polarity Protection
  • with
• Supply Frequency
  • 50/60 Hz
• Supply Voltage Limits
  • 85-264 V
• Switching Capacity In Ma
  • >= 10 mA 12 V relay output)
• Tightening Torque
  • 0.5 N.m
• [Uimp] Rated Impulse Withstand Voltage
  • 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
• [Us] Rated Supply Voltage
  • 100...240 V AC
• Voltage State 0 Guaranteed
  • <= 40 V discrete input
• Voltage State 1 Guaranteed
  • >= 79 V discrete input

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
• Ambient Air Temperature For Storage
  • -40-70 °C
• Disturbance Radiated/Conducted
  • class B EN 55022-11 group 1
• Environmental Characteristic
  • EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
• Ip Degree Of Protection
  • IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
• Maximum Altitude Transport
  • 3048 m
• Operating Altitude
  • 6561.68 ft (2000 m)
• Pollution Degree
  • 2 EN/IEC 61131-2
• Product Certifications
  • C-tick || GOST || CSA || GL || UL
• Relative Humidity
  • 95-95 % without condensation or dripping water
• Standards
  • EN/IEC 61000-4-6 level 3 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-4 level 3 || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-5 || EN/IEC 61000-4-11 || EN/IEC 60068-2-6 Fc || EN/IEC 61000-4-12 || EN/IEC 61000-4-3

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI2011013EN
• Environmental Disclosure
  • ENVPEP2011013EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Product Or Component Type
  • discrete I/O extension module
• Range Of Product
  • Zelio Logic
