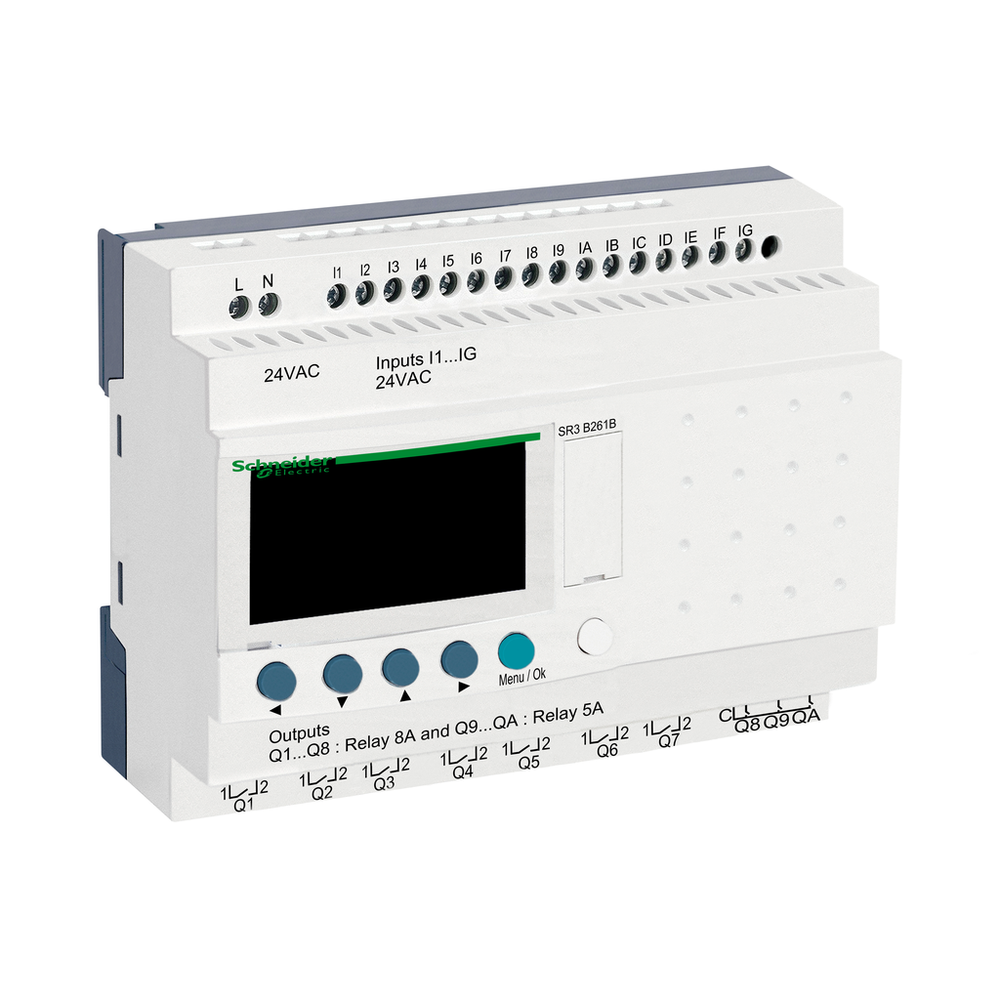

Schneider Electric SR3B261B
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Schneider Electric Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24 volts alternating current, has 24 inputs / outputs with screw-clamp terminals. It has an integrated clock and LCD display. This compact smart relays / programmable controller is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.modular smart relay, Zelio Logic SR2 SR3, 24 IO, 24V AC, clock, display
Schneider Electric SR3B261B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Backup Time
- 10 years 25 °C
- Checks
- program memory on each power up
- Clock
- with
- Clock Drift
- 12 min/year 0-55 °C || 6 s/month 25-25 °C
- Connections - Terminals
- screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
- Contacts Type And Composition
- NO relay output
- Current State 0 Guaranteed
- <= 0.5 mA discrete input)
- Current State 1 Guaranteed
- >= 2 mA discrete input)
- Cycle Time
- 6-90 ms
- Discrete Input Current
- 4.4 mA
- Discrete Input Frequency
- 47...53 Hz || 57...63 Hz
- Discrete Input Number
- 16
- Discrete Input Voltage
- 24 V AC
- Electrical Durability
- AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1
- Input Impedance
- 4.6 kOhm discrete input
- Isolation Voltage
- 1780 V
- Local Display
- with
- Maximum Supply Current
- 280 mA without extension) || 415 mA with extensions)
- Mechanical Durability
- 10000000 cycles relay output
- Net Weight
- 0.4 kg
- Number Of Outputs
- 10 relay
- Number Or Control Scheme Lines
- 0-500 FBD || 0-240 ladder
- Operating Rate In Hz
- 0.1 Hz at Ie)relay output || 10 Hz no load)relay output
- Output Thermal Current
- 5 A for 2 outputs relay output || 8 A for 8 outputs relay output
- Output Voltage Limits
- 5...30 V DC relay output) || 24...250 V AC
- Overvoltage Category
- III EN/IEC 60664-1
- Power Consumption In Va
- 10 VA with extensions || 7.5 VA without extension
- Protection Type
- against inversion of terminals (control instructions not executed)
- Response Time
- 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
- Supply Frequency
- 50/60 Hz
- Supply Voltage Limits
- 20.4-28.8 V
- Switching Capacity In Ma
- >= 10 mA 12 V relay output)
- Tightening Torque
- 0.5 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
- [Us] Rated Supply Voltage
- 24 V
- Voltage State 0 Guaranteed
- <= 5 V discrete input
- Voltage State 1 Guaranteed
- >= 14 V discrete input
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
- Ambient Air Temperature For Storage
- -40-70 °C
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
- Immunity To Microbreaks
- 10 ms repeated 20 times
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Maximum Altitude Transport
- 3048 m
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2 EN/IEC 61131-2
- Product Certifications
- GOST || GL || UL || CSA || C-tick
- Relative Humidity
- 95-95 % without condensation or dripping water
- Standards
- EN/IEC 61000-4-5 || EN/IEC 61000-4-11 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-6 level 3 || EN/IEC 60068-2-6 Fc || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-3 || EN/IEC 61000-4-12
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI0604006EN
- Environmental Disclosure
- ENVPEP060406EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- modular smart relay
- Range Of Product
- Zelio Logic
