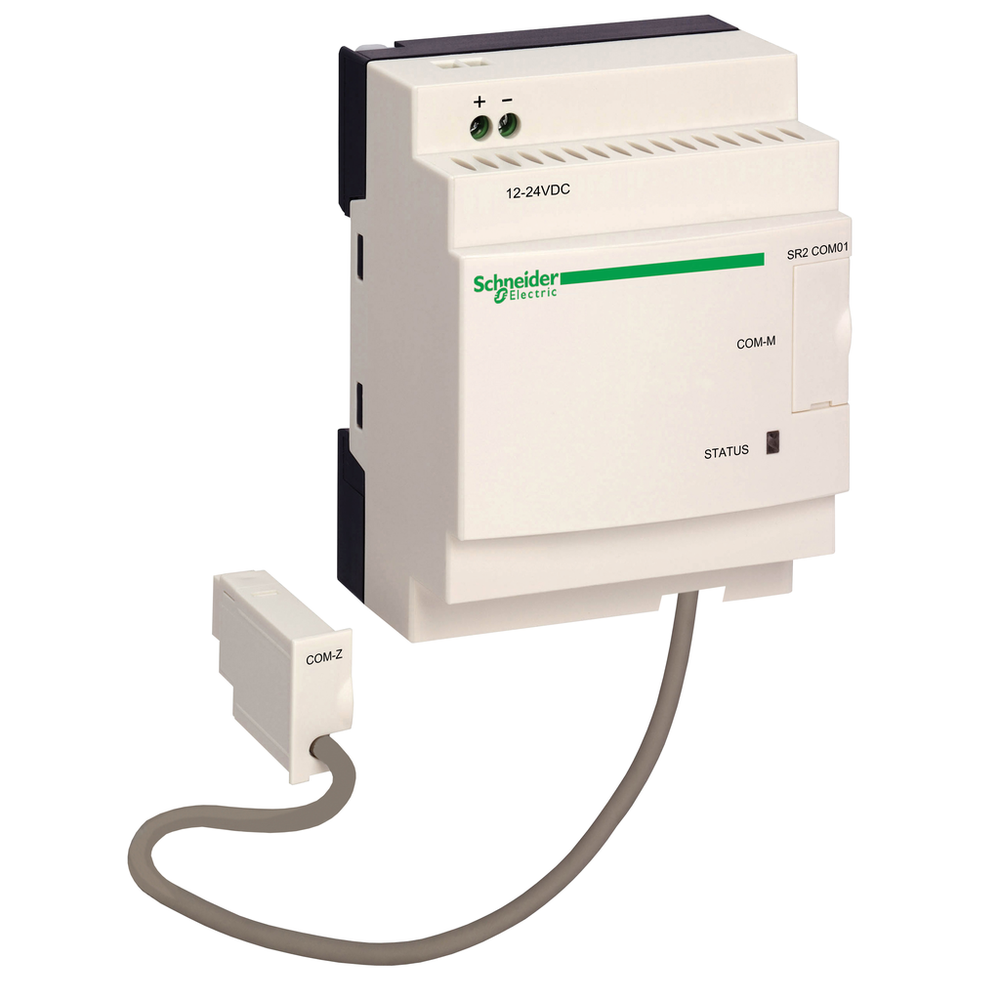

Schneider Electric SR2COM01
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This SR2 communication interface has a coil control voltage of 12V-24V DC. It can transfer program, send alarm to e-mail,and send alarm/receive instruction. It monitors or remotes control of machine or installation that operate without personnel. Communication interface allows messages, telephone numbers, and calling. It has flexibility design for space-saving with retractable mounting lug, spring for clip-on.Modem communication interface, Zelio Logic, for smart relay
Schneider Electric SR2COM01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 1 A
- Connections - Terminals
- screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
- Electrical Connection
- 1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol link with the modem, AT commands || 1 cable Com-Z specific to Zelio, specific Zelio communication protocol Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1)
- Electrical Data Recording
- discrete and digital value || telephone/e-mail || date and time
- Function Available
- update firmware monitoring || send alarm to e-mail address || send alarm/receive instruction || transfer program
- Insulation
- 1780 V optocoupler Com-Z specific to Zelio || by the cable SR2 CBL07 Com-M specific to Zelio
- Kit Composition
- 1 x SR2CBL07 || modem communication interface
- Maximum Supply Current
- 30 mA 12 V || 30 mA 24 V || 550 A
- Net Weight
- 0.2 kg
- Number Of Messages
- 28
- Power Dissipation In W
- 1.1 W
- Product Compatibility
- SR2E..... || SR.B.....
- Reverse Polarity Protection
- with
- Supply Voltage Limits
- 10-28.8 V
- Tightening Torque
- 0.5 N.m
- [Us] Rated Supply Voltage
- 12...24 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-40 °C IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
- Ambient Air Temperature For Storage
- -40-70 °C
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Maximum Altitude Transport
- 3048 m
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2 EN/IEC 61131-2
- Product Certifications
- GOST || CSA || C-tick || UL
- Relative Humidity
- 95-95 % without condensation or dripping water
- Standards
- EN/IEC 61000-4-11 || EN/IEC 61000-4-3 || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-12 || EN/IEC 61000-4-5 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-6 level 3 || EN/IEC 60068-2-6 Fc
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI0604006EN
- Environmental Disclosure
- ENVPEP060406EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Data Backed Up
- flash memory
- Product Or Component Type
- modem communication interface
- Range Of Product
- Zelio Logic
