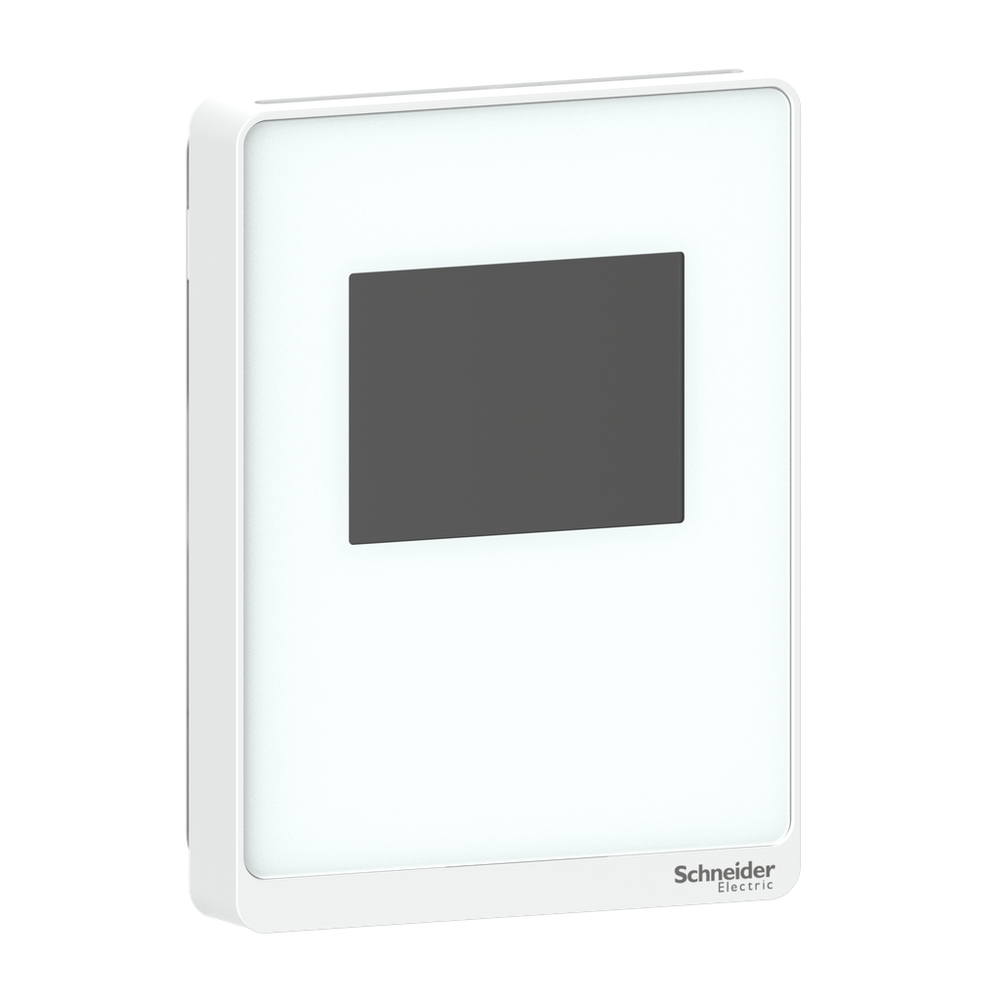

Schneider Electric SLPWTX2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The SpaceLogic SLP Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is optimum white. The user interface is assured by a color touchscreen with control and setpoint menu. This air quality sensor include a temperature and humidity elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.Sensor, SpaceLogic SLP Series, humidity, room, temperature, color touchscreen, BACnet MSTP/Modbus, optimum white housing
Schneider Electric SLPWTX2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminal - 2 AWG 24...AWG 18)
- Control Type
- tactile
- Function Available
- with temperature sensor || with humidity sensor
- Hysteresis
- 1.5 %
- Material
- ABS (acrylonitrile butadiene-styrene)
- Range Compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Environment
- Humidity Setting Range
- 0-100 %
- Temperature Setting Range
- 10-35 °C || 0-50 °C
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1912001EN
- Environmental Disclosure
- ENVPEP1912001EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Ambient Air Temperature For Operation
- 0-50 °C
- Color
- White
- Communication Port Protocol
- BACnet || Modbus
- Depth
- 23.7 mm
- Device Application
- HVAC || temperature control || fan speed controller
- Device Presentation
- complete product
- Display Resolution
- 240 x 300 pixels
- Display Size
- 2.4 inch
- Display Type
- colour touchscreen
- Height
- 85 mm
- Information Displayed
- temperature || temperature set point || menu-driven user interface || relative humidity
- Location
- Living Space
- Mounting Support
- Wall Mount
- Network Frequency
- 50 Hz || 60 Hz
- Product Certifications
- CE EN 61000-6-2 || CE EN 61000-6-3 || CE EN 61326-1 || RCM || EAC || ICES-003 || cULus
- Product Name
- SpaceLogic Room Unit
- Product Or Component Type
- sensor
- Product Specific Application
- humidity control
- Range
- SpaceLogic
- Sensor Type
- transmitter || thin-film capacitive
- Standards
- UL 916 || FCC Part 15 class B
- Surface Finish
- glossy
- Type Of Measurement
- Humidity || Temperature
- [Us] Rated Supply Voltage
- 24 V AC || 20...30 V DC
- Width
- 115 mm
