Schneider Electric SLABLCVX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

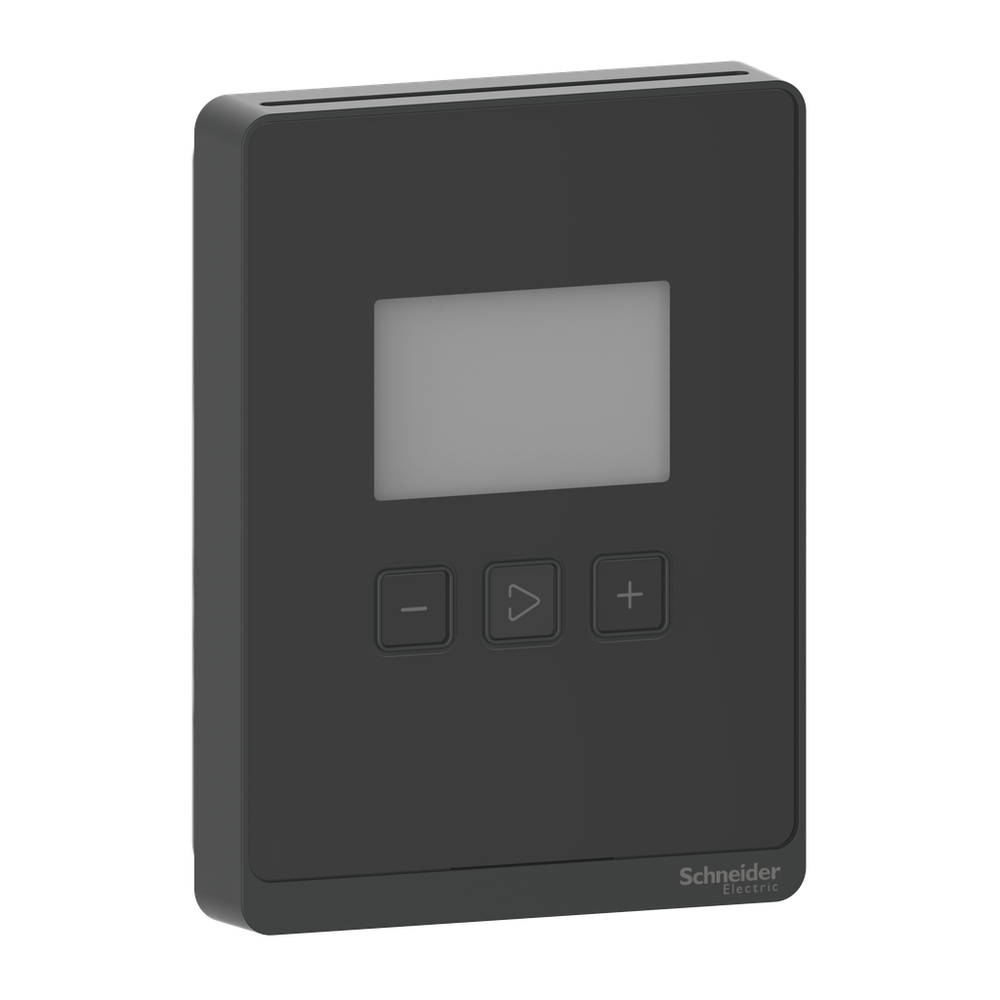

The SpaceLogic SLA Series of wall air quality sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is optimum black. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature, CO² and VOC elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.Sensor, SpaceLogic SLA Series, room, CO2, VOC, temperature, segmented LCD, analog outputs with optimum black housing
Schneider Electric SLABLCVX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Network Type
- wired
- Connections - Terminals
- screw terminal - 2 AWG 24...AWG 18)
- Control Type
- + button || - button || arrow button
- Function Available
- with temperature sensor || with CO2 sensor || with VOC (volatile organic compounds) sensor
- Material
- ABS (acrylonitrile butadiene-styrene)
- Number Of Outputs
- 1 fan || 1 configurable
- Output Type
- analog
- Output Voltage
- 0...10 V fan speed || 0...5 V configurable analog output || 0...10 V configurable analog output
- Range Compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Repeat Accuracy
- +/- 20 ppm
Environment
- Temperature Setting Range
- 10-35 °C || 0-50 °C
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1912001EN
- Environmental Disclosure
- ENVPEP1912001EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Ambient Air Temperature For Operation
- 0-50 °C
- Color
- Black
- Depth
- 23.7 mm
- Device Application
- HVAC || temperature control || fan speed controller
- Device Presentation
- complete product
- Display Size
- 2 inch
- Display Type
- LCD display
- Height
- 85 mm
- Information Displayed
- temperature || temperature set point || menu-driven user interface || CO2 || air quality index
- Location
- Living Space
- Mounting Support
- Wall Mount
- Network Frequency
- 50 Hz || 60 Hz
- Product Certifications
- CE EN 61000-6-2 || CE EN 61000-6-3 || CE EN 61326-1 || RCM || EAC || ICES-003 || cULus
- Product Name
- SpaceLogic Room Unit
- Product Or Component Type
- sensor
- Product Specific Application
- indoor air quality control
- Range
- SpaceLogic
- Sensor Type
- transmitter || NDIR (non-dispersive infrared) || VOC transmitter
- Standards
- UL 916 || FCC Part 15 class B
- Surface Finish
- glossy
- Type Of Measurement
- Carbon Dioxide (CO2) || Volatile Organic Compounds (VOC) || Temperature
- [Us] Rated Supply Voltage
- 24 V AC || 20...30 V DC
- Width
- 115 mm
