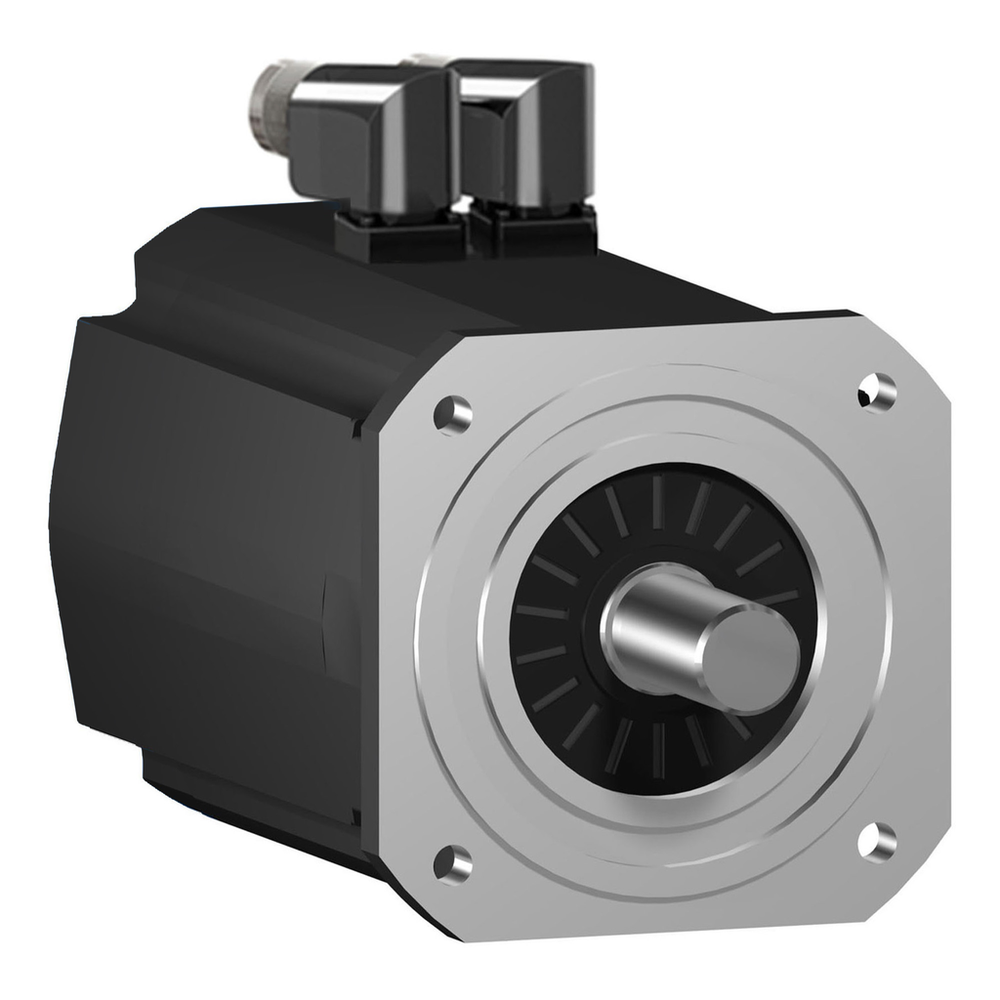

Schneider Electric SH32053P02A2000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
servo motor SH3 205 94,4Nm,nokey,multi,nobrake,90°conn.IP54/IP65,3.8k RPM
Schneider Electric SH32053P02A2000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 172 V/krpm 20 °C
- Centring Collar Depth
- 4 mm
- Centring Collar Diameter
- 180 mm
- Circle Diameter Of The Mounting Holes
- 215 mm
- Continuous Power
- 10600 W
- Continuous Stall Current
- 33.2 A
- Continuous Stall Torque
- 94.4 N.m 115...480 V three phase
- Electrical Connection
- straight connector
- Encoder Type
- absolute multiturn SinCos Hiperface
- Holding Brake
- without
- Ip Degree Of Protection
- shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
- Length
- 489 mm
- Maximum Axial Force Fa
- 740 N
- Maximum Current Irms
- 136.1 A
- Maximum Mechanical Speed
- 3800 rpm
- Maximum Radial Force Fr
- 4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm
- Motor Flange Size
- 205 mm
- Mounting Holes Diameter
- 14 mm
- Mounting Support
- international standard flange
- Net Weight
- 67 kg
- Nominal Output Power
- 4450 W 115 V single phase || 7790 W 230 V single phase || 10620 W 400 V three phase || 10100 W 480 V three phase
- Nominal Speed
- 500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
- Nominal Torque
- 84.9 N.m 115 V single phase || 74.4 N.m 230 V single phase || 50.7 N.m 400 V three phase || 40.2 N.m 480 V three phase
- Number Of Motor Poles
- 5
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 330 N.m 115...480 V three phase
- Phase
- three phase
- Rotor Inertia
- 190 kg.cm²
- Shaft Diameter
- 38 mm
- Shaft End
- smooth shaft
- Shaft Length
- 80 mm
- Speed Feedback Resolution
- 128 periods
- Stator Inductance
- 6.3 mH
- Stator Resistance
- 0.2 Ohm
- Torque Constant
- 2.76 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 115...480 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- SH3.....P
- Product Or Component Type
- servo motor
- Range Compatibility
- PacDrive 3
