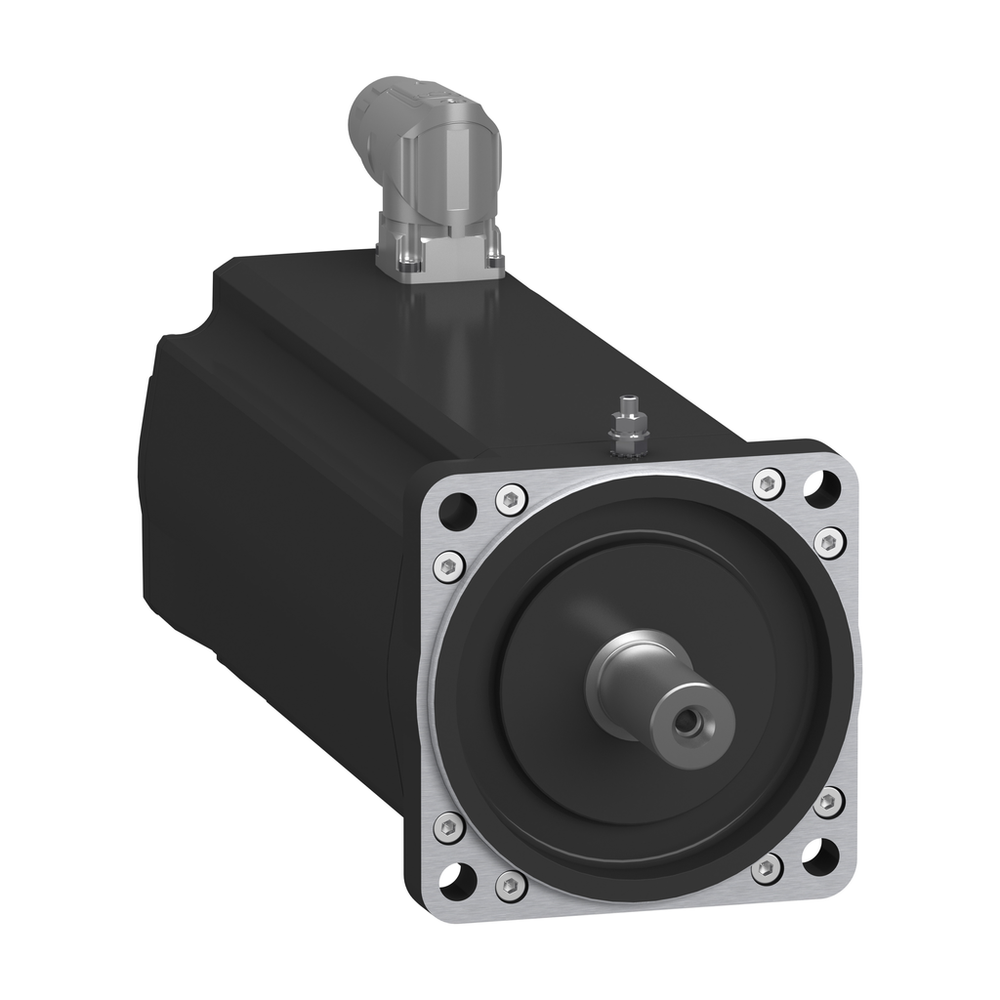

Schneider Electric SH31003P0BA4000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 6000RPM and smooth shaft end without holding brake. It is equipped with an absolute multi turn Hiperface (DSL 18bit, EKM36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 7.8A and a continuous power of 2900W. Shaft end is an IP54 rated, casing is an IP65 rated. The flange size is 70mm, it is fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. it weighs 7.5kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.SH3 OMC motor 100mm 3 st. IP65/54 smooth sh. DSL multi turn ang.conn.M23
Schneider Electric SH31003P0BA4000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 77 V/krpm 20 °C
- Centring Collar Depth
- 3.5 mm
- Centring Collar Diameter
- 95 mm
- Circle Diameter Of The Mounting Holes
- 115 mm
- Continuous Power
- 2400 W
- Continuous Stall Current
- 6.6 A
- Continuous Stall Torque
- 8 N.m 115...480 V three phase
- Electrical Connection
- straight connector
- Encoder Type
- absolute multiturn Hiperface DSL
- Holding Brake
- without
- Ip Degree Of Protection
- motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5
- Length
- 240.5 mm
- Maximum Axial Force Fa
- 740 N
- Maximum Current Irms
- 28.3 A
- Maximum Mechanical Speed
- 6000 rpm
- Maximum Radial Force Fr
- 3120 N 3000 rpm || 4500 N 1000 rpm || 3570 N 2000 rpm
- Motor Flange Size
- 100 mm
- Mounting Holes Diameter
- 9.0 mm
- Mounting Support
- international standard flange
- Net Weight
- 7.5 kg
- Nominal Output Power
- 1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase
- Nominal Speed
- 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
- Nominal Torque
- 7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase
- Number Of Motor Poles
- 4
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 28.3 N.m 115...480 V three phase
- Phase
- three phase
- Rotor Inertia
- 3.22 kg.cm²
- Shaft Diameter
- 19 mm
- Shaft End
- smooth shaft
- Shaft Length
- 40 mm
- Speed Feedback Resolution
- 262144 points/turn x 4096 turns
- Stator Inductance
- 9.4 mH
- Stator Resistance
- 1.43 Ohm
- Torque Constant
- 1.22 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 115...480 V
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP111049EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- SH3.....P
- Product Or Component Type
- servo motor
- Range Compatibility
- PacDrive 3
