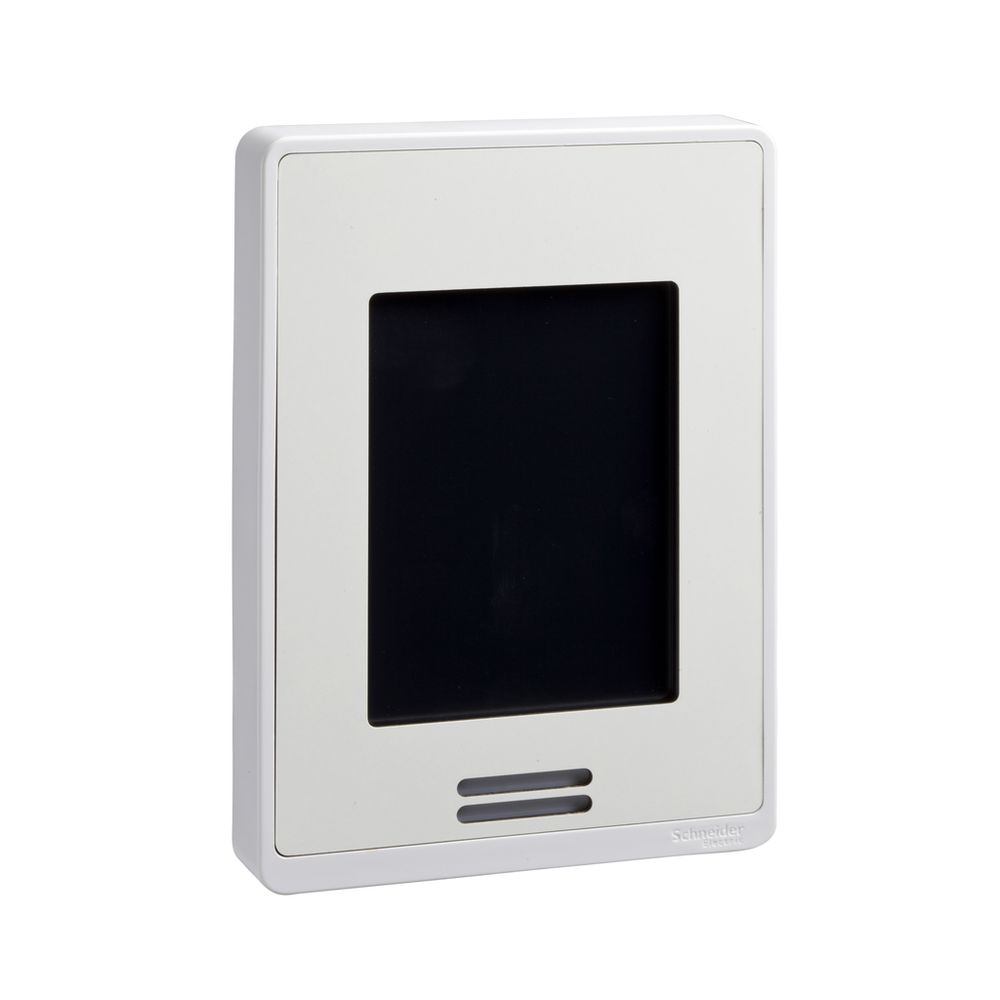

Schneider Electric SER8350A5B11P
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Line-Voltage Fan Coil Room Controller: BACnet MS/TP, ZigBee Embedded, RH sensor & control, IP ready, PIR motion sensor, White Case/Fascia
Schneider Electric SER8350A5B11P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Surface Finish
- Matte
- Surface Treatment
- untreated
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -30-50 °C
- Awg Gauge
- AWG 24...AWG 18
- Communication Port Protocol
- BACnet MS/TP || Modbus RTU || Zigbee Pro
- Depth
- 25 mm
- Device Application
- line voltage fan coil
- Device Short Name
- SER8300
- Directives
- 2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive || 2014/53/EU - radio equipment directive
- Height
- 120 mm
- Housing Colour
- white
- Humidity Setting Range
- 30-95 %
- Input Type
- dry contact 2 || analog 5
- Input Voltage
- 0...10 V DC
- Line Rated Current
- 4 A
- Market Segment
- lodging || small commercial || hotel || buildings || healthcare || non-critical buildings || office || residential || school
- Net Weight
- 340 g
- Output Current
- 1 A relay output || 3 A relay output inrush)
- Output Type
- 5 xrelay output || 4 xuniversal
- Output Voltage
- 24 V AC relay output || 0...10 V DC analog output
- Product Name
- SE8000 Series
- Product Or Component Type
- room controller
- Range
- EcoStruxure Building Expert
- Relative Humidity
- 0-95 %
- Sensor Type
- 10 kOhm T2 NTC thermistor Temperature || space RH sensor Humidity
- Standards
- EN/IEC 60730-1 || EN/IEC 60730-2-9 || EN/IEC 60730-2-13 || CSA E60730-2-9 || UL 60730-2-9 || UL 60730-2-13 || ICES-003 || FCC part 15 Subpart B || ETSI EN 300 328:v2.1.1 || ETSI EN 301 489-1:v1.9.2 || FCC part 15 Subpart C || ETSI EN 301 489-17:v2.2.1, 2012 || RSS 247
- Temperature Setting Range
- 12-37.5 °C cooling || 4.5-32 °C heating
- Width
- 86 mm
