Schneider Electric SEA9NPB250TB
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

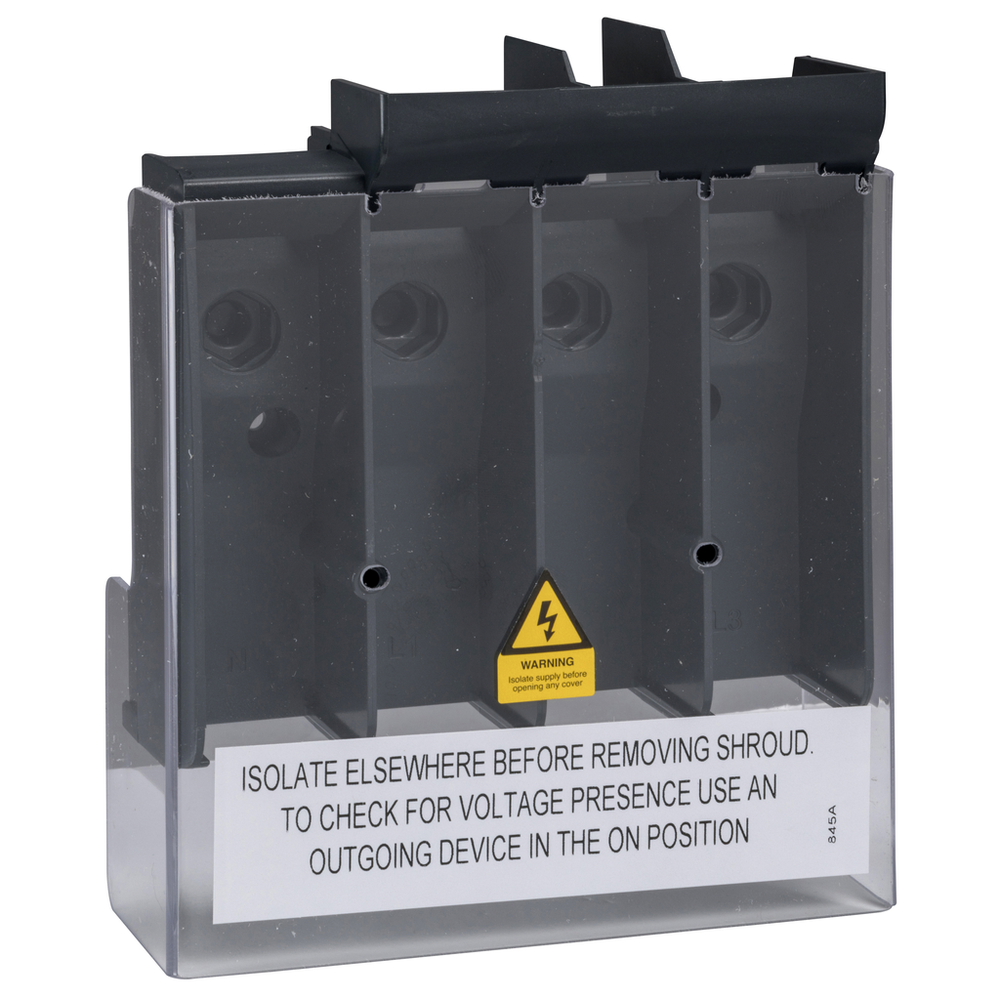

This Acti9 Isobar B accessory is a terminal block. It has 4 poles. The Ie rated operational current is up to 250A. Its dimensions are (W) 150mm x (H) 172mm x (D) 65mm. It is intended to realize the connection of devices in the distribution board. A cable cross-section of 95mm² can be used for rigid cables, and a 120mm² one for solid cables.Acti9 - terminal block - 250A
Schneider Electric SEA9NPB250TB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Stiffness
- flexible 95-95 mm² || solid 120-120 mm²
- Depth
- 65 mm
- Height
- 172 mm
- [Ie] Rated Operational Current
- 250 A
- Poles Description
- 4P
- Range Compatibility
- Acti 9 (Acti9 Isobar B) distribution board
- Width
- 150 mm
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1602010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Halogen Content Performance
- Halogen free plastic parts product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- connection
- Product Or Component Type
- terminal block
- Range
- Acti9
