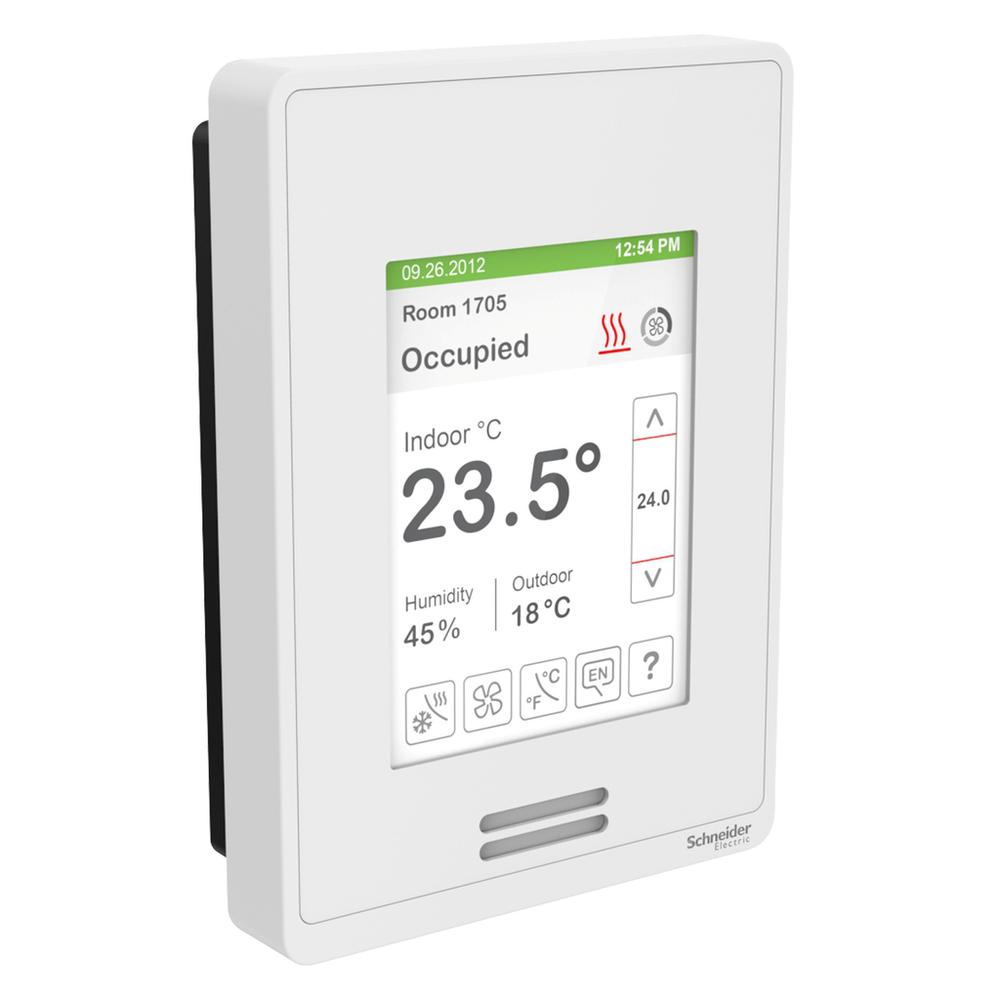

Schneider Electric SE8650U0B11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Roof Top Unit, Heat Pump & Indoor Air Quality Ctrl: BACnet MS/TP, RH sensor & control, White Case/Fascia
Schneider Electric SE8650U0B11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Surface Finish
- Matte
- Surface Treatment
- untreated
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -30-50 °C
- Awg Gauge
- AWG 22...AWG 18
- Calibration Certificate
- 1 Pt
- Communication Port Protocol
- BACnet MS/TP || Modbus RTU || Zigbee Pro
- Depth
- 25 mm
- Device Application
- staging equipment (RTU/HP)
- Device Short Name
- SE8600
- Directives
- 2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive || 2014/53/EU - radio equipment directive
- Height
- 120 mm
- Housing Colour
- white
- Humidity Measurement Drift
- Less Than 1 % Yearly
- Humidity Setting Range
- 30-95 %
- Input Type
- dry contact 2 || analog 5
- Input Voltage
- 0...10 V
- Market Segment
- Lodging/Hotel || small commercial || buildings || healthcare || non-critical buildings || office || residential || school
- Net Weight
- 340 g
- Output Current
- 1 A relay output || 3 A relay output inrush) || 0.3 A universal output || 1.5 A universal output inrush)
- Output Type
- 5 xrelay output || 4 xuniversal
- Output Voltage
- 24 V AC/DC relay output || 0...10 V AC/DC voltage output
- Product Name
- SE8000 Series
- Product Or Component Type
- roof top unit
- Range
- EcoStruxure Building Expert
- Relative Humidity
- 0-75 %
- Sensor Type
- 10 kOhm T2 NTC thermistor Temperature || space RH sensor Humidity || bulk polymer Humidity
- Standards
- EN/IEC 60730-1 || FCC part 15 Subpart B || ICES-003 || ETSI EN 300 328 || ETSI EN 301 489-1:v1.9.2 || FCC part 15 Subpart C || UL 60730-2-9 || ETSI EN 301 489-17:v2.2.1, 2012
- Targeted Region
- North America.
- Temperature Resolution
- 0.1 °C
- Temperature Setting Range
- 12-37.5 °C cooling || 4.5-32 °C heating
- Width
- 86 mm
