Description

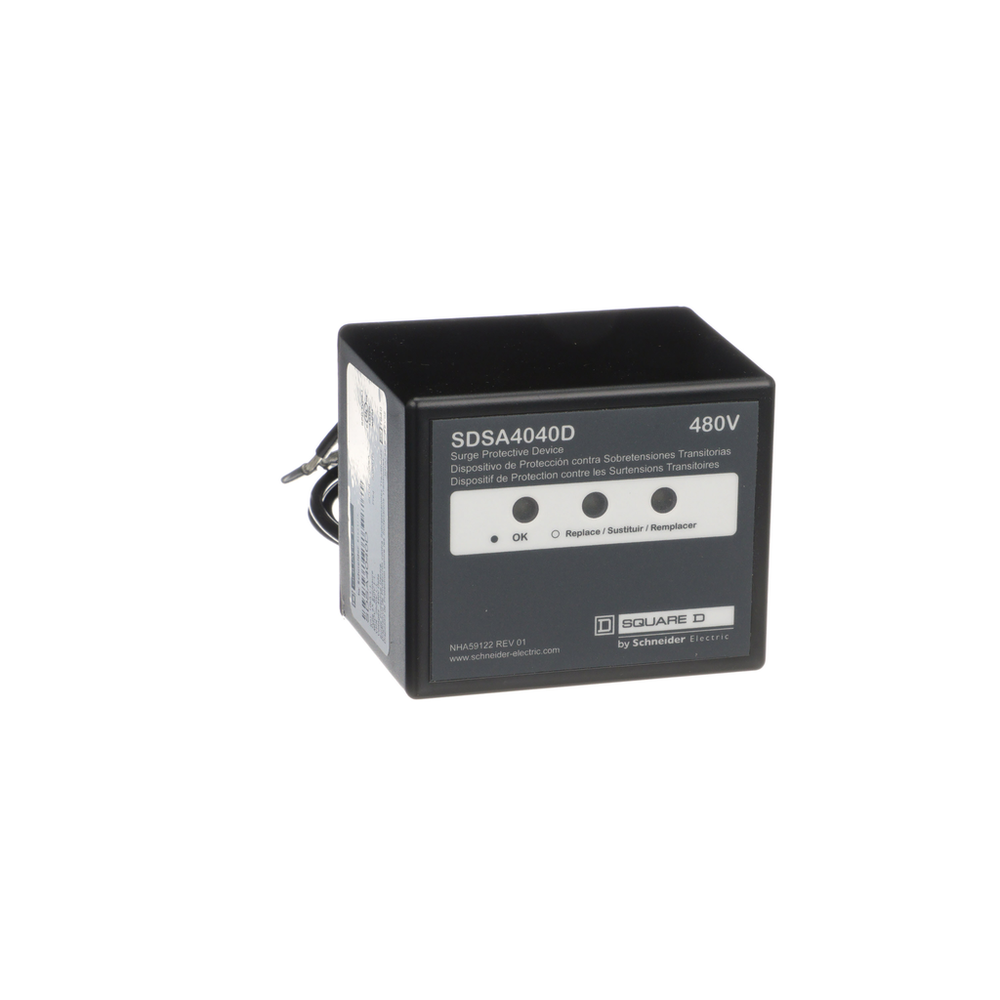

Square D™ load center surge protective devices, SDSA4040D, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.Surge protection device, Surgelogic, 40kA, 480 VAC delta, 3 phase, 3 wire, NEMA 4X
Schneider Electric SDSA4040D is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Length
- 24 in
- Connections - Terminals
- wire AWG 12 copper
- Depth
- 67 mm
- Height
- 78 mm
- Local Signalling
- status LED normal operation
- Mounting Support
- panel mounting
- Nominal Discharge Current
- 10 kA
- Phase
- 3 phase
- Short-Circuit Protection
- 200 kA
- Surge Current
- 40 kA
- [Uc] Maximum Continuous Operating Voltage
- 180 V
- [Ue] Rated Operational Voltage
- 480 V delta AC
- Width
- 92 mm
- Wiring Configuration
- 3-wire
Environment
- Ambient Air Temperature For Operation
- 65-65 °C
- Enclosure Material
- Black Plastic
- Nema Degree Of Protection
- NEMA 4X
- Standards
- UL 1449:ed. 4 || CSA C22.2 No 8:1986
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Product Or Component Type
- surge protection device
- Range Of Product
- Surgelogic
