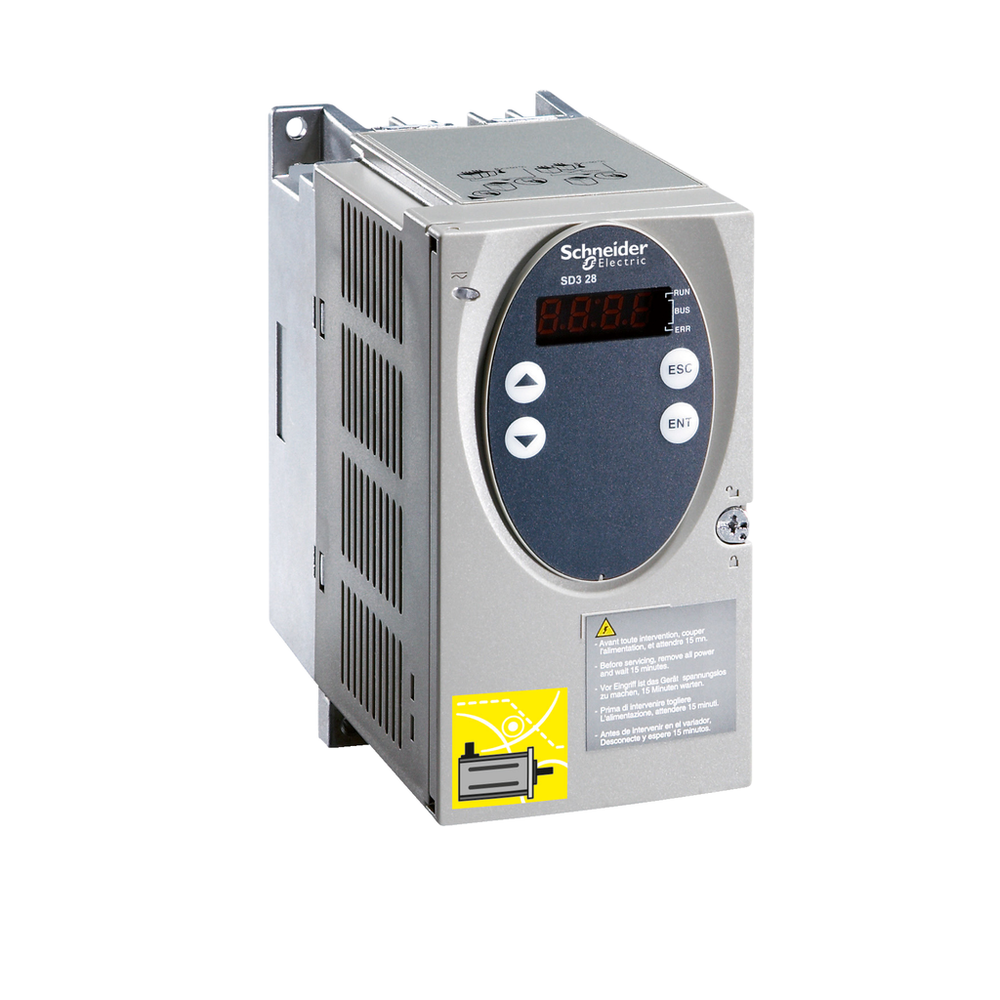

Schneider Electric SD328BU68S2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 3-phase stepper motor drive with an integrated Profibus DP Fieldbus communication interface. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a maximum motor phase current of 2.5A, a nominal power of 180W at 115V, 270W at 230V. It features fan cooling. The maximum mechanical speed of motor drive is 3000RPM. It is an IP20 and IP40 rated product. Its dimensions are 72mm (width) x 140mm (depth) x 145mm (height). It weighs 1.2kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. This product is certified by CE. CUL, TUV and UL. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2, EN/IEC 61800-3 and EN/IEC 50178 standards. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.motion control stepper motor drive - SD328 - Profibus DP fieldbus - <= 6.8 A
Schneider Electric SD328BU68S2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A 115 V || 6 A 230 V
- Communication Interface
- Profibus DP fieldbus, Integrated
- Current Consumption
- 5 A 230 V main supply || 7 A 115 V main supply || <= 0.2 mA 24 V control voltage
- Depth
- 140 mm
- Format Of The Drive
- block
- Height
- 145 mm
- Input Current
- 10 mA 24 V input signals
- Input Voltage
- 24 V -15 %/+20 % 24 V control voltage
- Inrush Current
- 60 A
- Maximum Input Frequency
- 200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction || 400 kHz signal input ENC_A, ENC_B, ENC_I A/B
- Maximum Leakage Current
- 30 mA <10 m IEC 60990-3
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Motor Phase Current
- 6.8 A
- Maximum Output Frequency
- 400 kHz pulse/direction interface A/B || 200 kHz pulse/direction interface pulse/direction
- Maximum Switching Current
- 50 mA 24 V output signals)
- Maximum Voltage Drop
- <1 V 50 mA load 24 V output signals
- Net Weight
- 1.2 kg
- Network Frequency Limits
- 50-60 Hz - 15...10 %)
- Nominal Power
- 280 W 115 V || 420 W 230 V
- Output Voltage
- <= 30 V 24 V output signals) || 4.75...5.25 V ENC+5V_OUT signal output)
- Overvoltage Category
- III
- Phase
- single phase
- Physical Interface
- RS422 - pulse/direction interface || RS422 - signal input ENC_A, ENC_B, ENC_I
- Power Losses
- <= 65 W
- Residual Ripple
- < 5 % 24 V control voltage)
- Resistance
- 5 kOhm pulse/direction interface)
- Safety Function
- safe torque off safety function machine IEC/EN 61800-5-2 || safe torque off safety function machine ISO 13849-1 level d || safe torque off safety function system process EN/IEC 61508 level SIL2 || safe torque off safety function system process IEC/EN 61800-5-2
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Short-Circuit Current
- 0.5 kA
- Supply Voltage Type
- AC/DC
- Type Of Cooling
- fan
- [Us] Rated Supply Voltage
- 100...120 V - 15...10 % || 200...230 V - 15...10 %
- Voltage State 0 Guaranteed
- -3...5 V 24 V input signals
- Voltage State 1 Guaranteed
- 15...30 V 24 V input signals
- Width
- 72 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge level 3 EN/IEC 61000-4-2 || immunity to electrical transients level 4 EN/IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 EN/IEC 61000-4-3 || voltage/current impulse level 3 EN/IEC 61000-4-5
- Ip Degree Of Protection
- IP20 || on upper part IP40 without removal of protective film)
- Marking
- CE
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
- Pollution Degree
- level 2
- Product Certifications
- TÜV || cUL || UL
- Relative Humidity
- 5-85 % without condensation
- Standards
- EN/IEC 61800-3 environment 1 || EN/IEC 61800-5-1 || EN/IEC 61800-3 environment 2 || EN/IEC 61800-3 || EN/IEC 50178
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm 3-13 Hz)EN/IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI111103EN
- Environmental Disclosure
- ENVPEP111115EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Bus Type
- fieldbus
- Device Short Name
- SD328
- Product Or Component Type
- motion stepper drive
- Range Of Product
- Lexium SD3
- Supply Voltage Limits
- 200-240 V || 100-120 V
