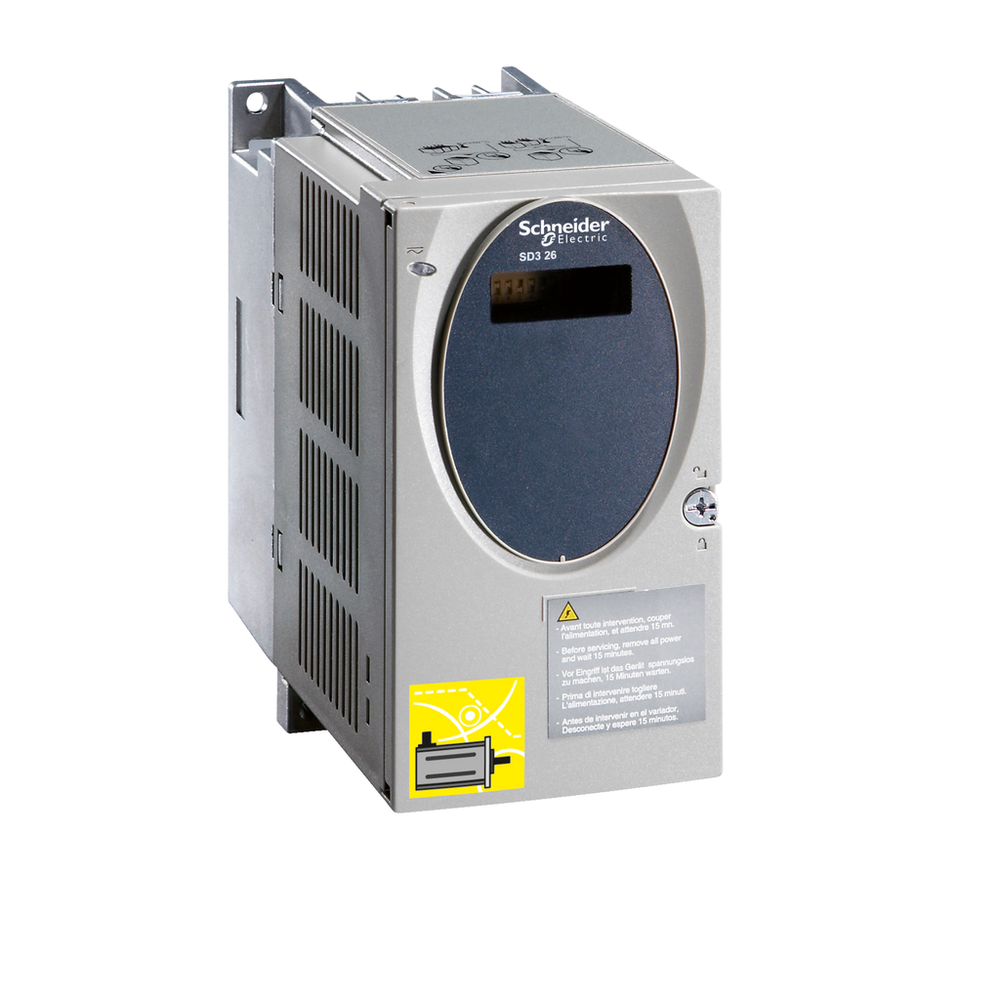

Schneider Electric SD326RU68S2

Complementary

• Associated Fuse Rating
  • 10 A 115 V || 6 A 230 V
• Communication Interface
  • pulse/direction, Integrated
• Current Consumption
  • <= 0.2 mA 24 V control voltage
• Depth
  • 140 mm
• Format Of The Drive
  • block
• Function Available
  • rotation monitoring || holding brake monitoring
• Height
  • 145 mm
• Input Current
  • 25 mA 5 V optocoupler input signals || 7 mA 24 V optocoupler input signals
• Input Voltage
  • 24 V -15 %/+20 % 24 V control voltage
• Inrush Current
  • 60 A
• Maximum Input Frequency
  • 200 kHz 24 V optocoupler input signals || 200 kHz 5 V optocoupler input signals || 400 kHz ENC_A/ENC_B signal input
• Maximum Leakage Current
  • 30 mA IEC 60990-3
• Maximum Mechanical Speed
  • 3000 rpm
• Maximum Motor Phase Current
  • 6.8 A
• Maximum Switching Current
  • 200 mA readiness signal output) || 50 mA 24 V output signals)RM-FAULT_OUT || 1.7 mA 24 V output signals)+BRAKE_OUT
• Maximum Switching Voltage
  • 30 V DC readiness signal output)
• Maximum Voltage Drop
  • <1 V 50 mA load 24 V output signals || <1 V 50 mA load ENC+5V_OUT signal output || <1 V 50 mA load readiness signal output
• Net Weight
  • 1.2 kg
• Network Frequency Limits
  • 50-60 Hz - 15...10 %)
• Nominal Power
  • 280 W 115 V || 420 W 230 V
• Output Voltage
  • <= 30 V 24 V output signals) || 4.75...5.25 V ENC+5V_OUT signal output)
• Overvoltage Category
  • III
• Phase
  • single phase
• Physical Interface
  • RS422 - ENC_A/ENC_B signal input
• Residual Ripple
  • <= 5 % 24 V control voltage)
• Shock Resistance
  • 15 gn 11 ms EN/IEC 60068-2-27
• Short-Circuit Current
  • 0.5 kA
• Supply Voltage Type
  • AC/DC
• Type Of Cooling
  • fan
• [Us] Rated Supply Voltage
  • 100...120 V - 15...10 % || 200...230 V - 15...10 %
• Voltage State 0 Guaranteed
  • <= 5 V 24 V optocoupler input signals || <= 0.5 V 5 V optocoupler input signals
• Voltage State 1 Guaranteed
  • 15...30 V 24 V optocoupler input signals || 2.5...5.25 V 5 V optocoupler input signals
• Width
  • 72 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • 0-40 °C UL || 0-50 °C
• Ambient Air Temperature For Storage
  • -25-70 °C
• Electromagnetic Compatibility
  • electrostatic discharge level 3 EN/IEC 61000-4-2 || immunity to electrical transients level 4 EN/IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 EN/IEC 61000-4-3 || voltage/current impulse level 3 EN/IEC 61000-4-5
• Ip Degree Of Protection
  • IP20 || on upper part IP40 without removal of protective film)
• Marking
  • CE
• Operating Altitude
  • <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
• Pollution Degree
  • level 2
• Product Certifications
  • UL || cUL
• Relative Humidity
  • 5-85 % without condensation
• Standards
  • EN/IEC 61800-3 environment 1 || EN/IEC 61800-5-1 || EN/IEC 61800-3 || EN/IEC 61800-3 environment 2 || EN/IEC 50178
• Vibration Resistance
  • 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm 3-13 Hz)EN/IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI111103EN
• Environmental Disclosure
  • ENVPEP111115EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Device Short Name
  • SD326
• Product Or Component Type
  • motion stepper drive
• Range Of Product
  • Lexium SD3
• Supply Voltage Limits
  • 100-120 V || 200-240 V
