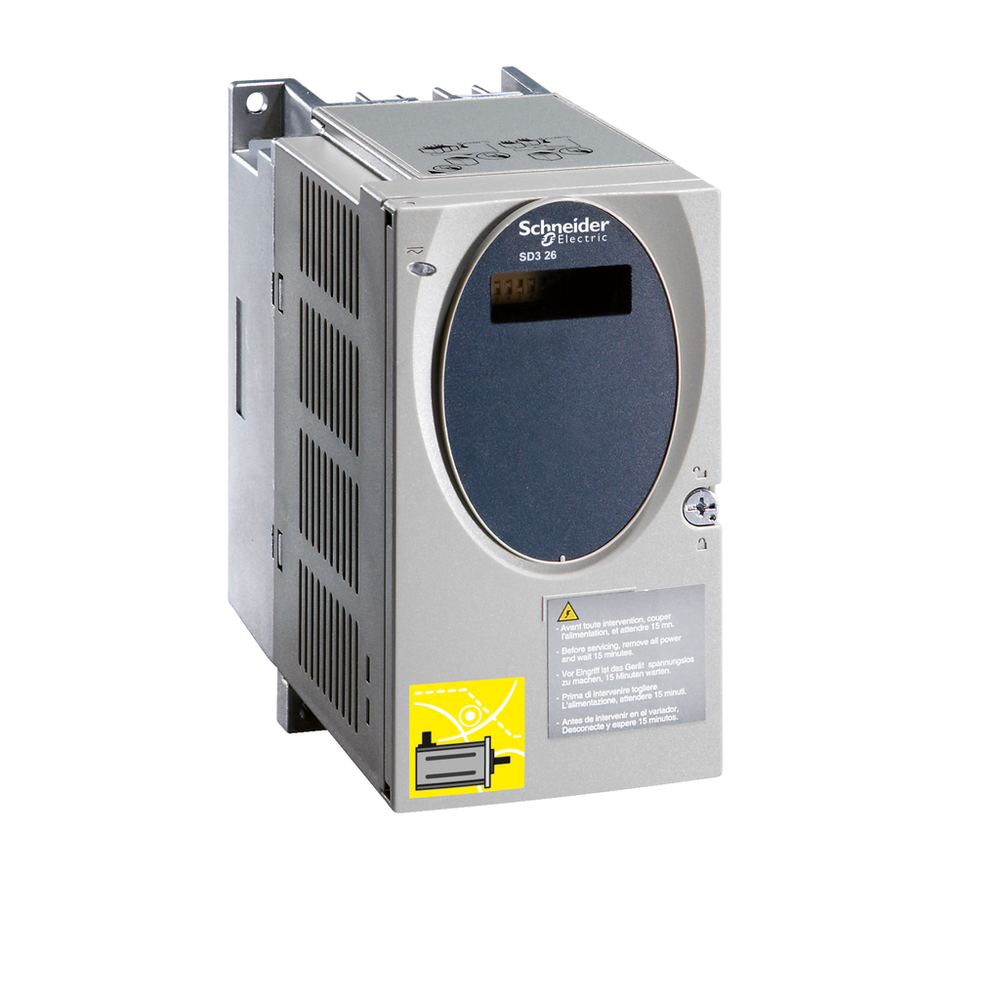

Schneider Electric SD326DU68S2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. High torque is available even at low speeds. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 6.8A, a nominal power of 420W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is provided with fan cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.2kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.motion control stepper motor drive - SD326 - pulse/direction - <= 6.8 A
Schneider Electric SD326DU68S2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A 115 V || 6 A 230 V
- Communication Interface
- pulse/direction, Integrated
- Depth
- 140 mm
- Format Of The Drive
- block
- Height
- 145 mm
- Input Current
- 25 mA 5 V optocoupler input signals || 7 mA 24 V optocoupler input signals
- Inrush Current
- 60 A
- Maximum Input Frequency
- 200 kHz 24 V optocoupler input signals || 200 kHz 5 V optocoupler input signals
- Maximum Leakage Current
- 30 mA IEC 60990-3
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Motor Phase Current
- 6.8 A
- Maximum Switching Current
- 200 mA readiness signal output)
- Maximum Switching Voltage
- 30 V DC readiness signal output)
- Maximum Voltage Drop
- <1 V 50 mA load readiness signal output
- Net Weight
- 1.2 kg
- Network Frequency Limits
- 50-60 Hz - 15...10 %)
- Nominal Power
- 280 W 115 V || 420 W 230 V
- Overvoltage Category
- III
- Phase
- single phase
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Short-Circuit Current
- 0.5 kA
- Supply Voltage Type
- AC/DC
- Type Of Cooling
- fan
- [Us] Rated Supply Voltage
- 100...120 V - 15...10 % || 200...230 V - 15...10 %
- Voltage State 0 Guaranteed
- <= 5 V 24 V optocoupler input signals || <= 0.5 V 5 V optocoupler input signals
- Voltage State 1 Guaranteed
- 15...30 V 24 V optocoupler input signals || 2.5...5.25 V 5 V optocoupler input signals
- Width
- 72 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-40 °C UL || 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge level 3 EN/IEC 61000-4-2 || immunity to electrical transients level 4 EN/IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 EN/IEC 61000-4-3 || voltage/current impulse level 3 EN/IEC 61000-4-5
- Ip Degree Of Protection
- IP20 || on upper part IP40 without removal of protective film)
- Marking
- CE
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
- Pollution Degree
- level 2
- Product Certifications
- UL || cUL
- Relative Humidity
- 5-85 % without condensation
- Standards
- EN/IEC 50178 || EN/IEC 61800-3 environment 1 || EN/IEC 61800-3 environment 2 || EN/IEC 61800-3 || EN/IEC 61800-5-1
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm 3-13 Hz)EN/IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI111103EN
- Environmental Disclosure
- ENVPEP111115EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- SD326
- Product Or Component Type
- motion stepper drive
- Range Of Product
- Lexium SD3
- Supply Voltage Limits
- 100-120 V || 200-240 V
