Schneider Electric SD315ON10B400
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

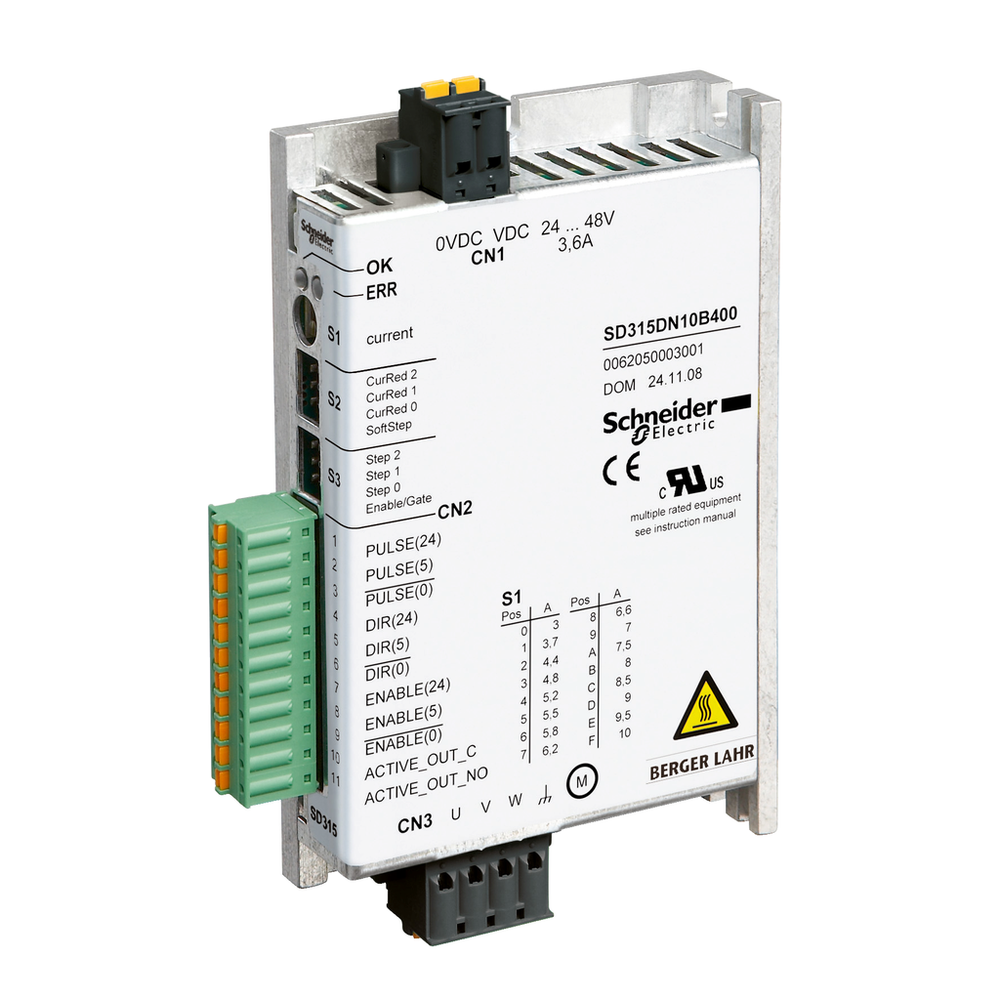

motion control stepper motor drive - SD315 - pulse direction with oscillator
Schneider Electric SD315ON10B400 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- voltage 0...10 V 10 bits 50 kOhm
- Associated Fuse Rating
- 10 A
- Communication Interface
- pulse/direction, Integrated
- Current Consumption
- <= 7.5 mA
- Depth
- 23.5 mm
- Format Of The Drive
- block
- Height
- 117 mm
- Input Current
- 25 mA 5 V optocoupler input signals || 7 mA 24 V optocoupler input signals
- Input Voltage
- < 30 V
- Local Signalling
- 1 LED - ERR || 1 LED - RUN
- Maximum Input Frequency
- 200 kHz 24 V optocoupler input signals || 200 kHz 5 V optocoupler input signals
- Maximum Leakage Current
- 30 mA
- Maximum Motor Phase Current
- 10 A
- Maximum Switching Current
- 200 mA readiness signal output) || 50 mA pulse/direction output signal) || 20 mA output signal)
- Maximum Switching Voltage
- 30 V DC readiness signal output) || 30 V pulse/direction output signal) || 10 V DC output signal)
- Maximum Voltage Drop
- <1 V 50 mA load readiness signal output || <0.5 V pulse/direction output signal
- Net Weight
- 0.25 kg
- Overvoltage Category
- III
- Phase
- single phase
- Physical Interface
- RS422 - pulse/direction interface with oscillator
- Power Losses
- <= 7 W
- Residual Ripple
- < 5 % 24 V control voltage)
- Resistance
- 10 kOhm external potentiometer)
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Supply Voltage Type
- DC
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 24...48 V - 15...10 %
- Voltage State 0 Guaranteed
- <= 5 V 24 V optocoupler input signals || <= 0.4 V 5 V optocoupler input signals
- Voltage State 1 Guaranteed
- 15...30 V 24 V optocoupler input signals || 2.5...5.25 V 5 V optocoupler input signals
- Width
- 74.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge level 3 EN/IEC 61000-4-2 || immunity to electrical transients level 4 EN/IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 EN/IEC 61000-4-3 || voltage/current impulse level 3 EN/IEC 61000-4-5
- Ip Degree Of Protection
- IP20
- Marking
- CE
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, lateral distance of > 20 mm)
- Pollution Degree
- level 2
- Product Certifications
- UL || cUL
- Relative Humidity
- 5-85 % without condensation
- Standards
- EN/IEC 61800-3 environment 1 || EN/IEC 61800-3 || EN/IEC 50178 || EN/IEC 61800-5-1 || EN/IEC 61800-3 environment 2
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm 3-13 Hz)EN/IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI111103EN
- Environmental Disclosure
- ENVPEP111115EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- SD315
- Product Or Component Type
- motion stepper drive
- Range Of Product
- Lexium SD3
- Supply Voltage Limits
- 19-60 V
