Description

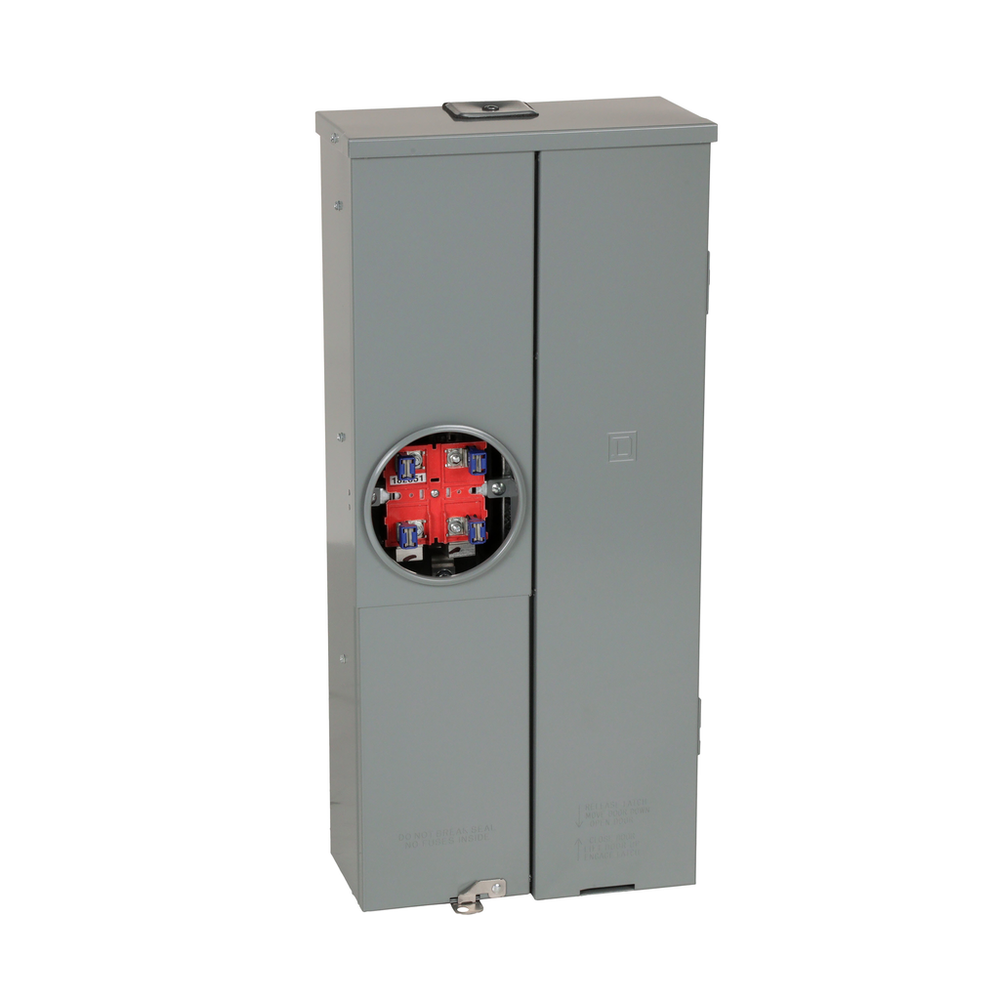

The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816D200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM ring type Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior dual main service disconnects (feed-thru lugs on meter mains only). Meter Socket has no By-pass.Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass
Schneider Electric SC816D200C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 6...300 kcmil aluminium/copper)line side || AWG 12...AWG 1/0 aluminium/copper)service ground || AWG 6...250 kcmil aluminium/copper)load side
- Branch Circuit Breaker Rated Current
- 100 A
- Bus Rated Current
- 200.0 A
- Bypass Type
- no bypass
- Depth
- 7.12 in
- Device Composition
- service disconnect (factory installed)
- Device Mounting
- surface
- Electrical Connection
- lugs, line side || feed-thru lugs, service ground || feed-thru lugs, load side
- Height
- 34.00 in
- Hub Type
- A || A-L
- Line Rated Current
- 200 A
- Meter Socket Type
- ringed
- Network Number Of Phases
- 1
- Number Of Circuits
- 16
- Number Of Spaces
- 8
- Number Of Tandem Circuit Breakers
- 8
- Service Disconnect Rated Current
- 200 A
- Service Feed Location
- OH || UG
- Short-Circuit Current
- 10 kA
- Tightening Torque
- main lugs 250 lb.in, AWG 6...300 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 1/0, copper || service ground 50 lb.in, AWG 12...AWG 1/0, aluminium || lugs 250 lb.in, AWG 6...250 kcmil, aluminium/copper || branch lugs 50 lb.in, AWG 3...AWG 1/0, aluminium/copper || branch lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 40 lb.in, AWG 8, aluminium/copper || branch lugs 35 lb.in, AWG 14...AWG 10, copper || branch lugs 35 lb.in, AWG 12...AWG 10, aluminium || Cover 10 lb.in
- Width
- 14.95 in
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- UL E-6294
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1407020EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Or Component Type
- Meter Mains
- Range Of Product
- Homeline
